6LoWPAN IPHC stateful compression Test More...

Inheritance diagram for SixlowpanIphcStatefulImplTest:

Collaboration diagram for SixlowpanIphcStatefulImplTest:

Classes
struct	Data
	Structure to hold the Rx/Tx packets. More...

Public Member Functions
	SixlowpanIphcStatefulImplTest ()

virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

TestCase &	operator= (const TestCase &)=delete

Private Member Functions
bool	PromiscReceiveFromSixLowPanDevice (Ptr< NetDevice > device, Ptr< const Packet > packet, uint16_t protocol, Address const &source, Address const &destination, NetDevice::PacketType packetType)
	Promiscuous receive from a SixLowPanNetDevice. More...

bool	ReceiveFromMockDevice (Ptr< NetDevice > device, Ptr< const Packet > packet, uint16_t protocol, Address const &source, Address const &destination, NetDevice::PacketType packetType)
	Receive from a MockDevice. More...

void	SendOnePacket (Ptr< NetDevice > device, Ipv6Address from, Ipv6Address to)
	Send one packet. More...

Private Attributes
NetDeviceContainer	m_mockDevices
	MockNetDevice container. More...

std::vector< Data >	m_rxPackets
	Received packets. More...

NetDeviceContainer	m_sixDevices
	SixLowPanNetDevice container. More...

std::vector< Data >	m_txPackets
	Transmitted packets. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

6LoWPAN IPHC stateful compression Test

Constructor & Destructor Documentation

SixlowpanIphcStatefulImplTest::SixlowpanIphcStatefulImplTest ( )

void SixlowpanIphcStatefulImplTest::DoRun ( void )

virtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

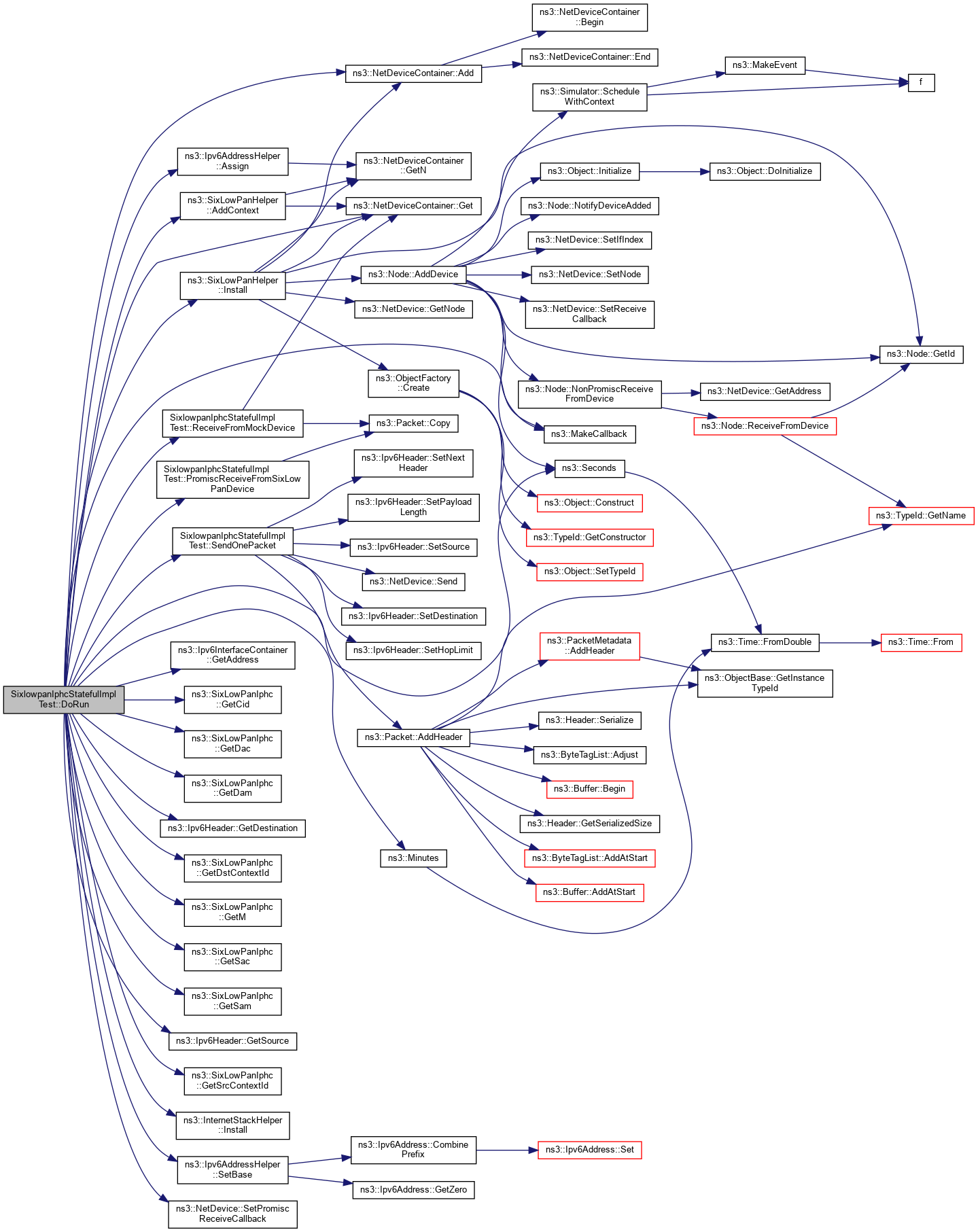

Here is the call graph for this function:

bool SixlowpanIphcStatefulImplTest::PromiscReceiveFromSixLowPanDevice	(	Ptr< NetDevice >	device,
		Ptr< const Packet >	packet,
		uint16_t	protocol,
		Address const &	source,
		Address const &	destination,
		NetDevice::PacketType	packetType
	)

private

Promiscuous receive from a SixLowPanNetDevice.

Parameters

device	a pointer to the net device which is calling this function
packet	the packet received
protocol	the 16 bit protocol number associated with this packet.
source	the address of the sender
destination	the address of the receiver
packetType	type of packet received (broadcast/multicast/unicast/otherhost)

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

bool SixlowpanIphcStatefulImplTest::ReceiveFromMockDevice	(	Ptr< NetDevice >	device,
		Ptr< const Packet >	packet,
		uint16_t	protocol,
		Address const &	source,
		Address const &	destination,
		NetDevice::PacketType	packetType
	)

private

Receive from a MockDevice.

Parameters

device	a pointer to the net device which is calling this function
packet	the packet received
protocol	the 16 bit protocol number associated with this packet.
source	the address of the sender
destination	the address of the receiver
packetType	type of packet received (broadcast/multicast/unicast/otherhost)
