SixlowpanHc1ImplTest Class Reference

6LoWPAN HC1 Test More...

+ Inheritance diagram for SixlowpanHc1ImplTest:

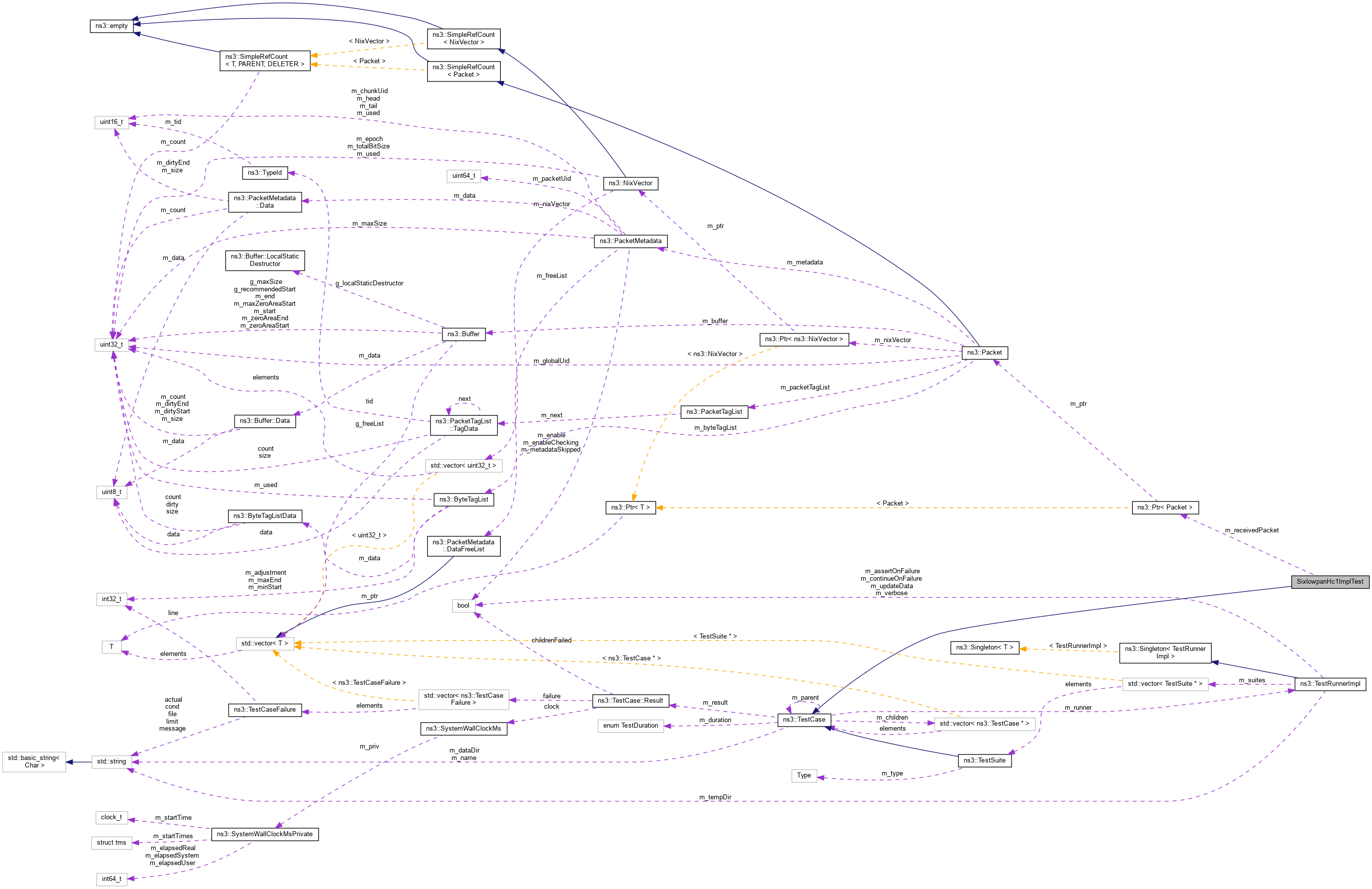

+ Collaboration diagram for SixlowpanHc1ImplTest:

Public Member Functions

 SixlowpanHc1ImplTest ()

virtual void DoRun (void)
 Implementation to actually run this TestCase. More...

void ReceivePacket (Ptr< Socket > socket, Ptr< Packet > packet, const Address &from)
 Packet receive function. More...

void ReceivePkt (Ptr< Socket > socket)
 Packet receive function. More...

- Public Member Functions inherited from ns3::TestCase
 TestCase (const TestCase &)=delete

virtual ~TestCase ()
 Destructor. More...

std::string GetName (void) const

TestCaseoperator= (const TestCase &)=delete


Private Member Functions

void DoSendData (Ptr< Socket > socket, std::string to)
 Send data function. More...

void SendData (Ptr< Socket > socket, std::string to)
 Send data function. More...


Private Attributes

Ptr< Packetm_receivedPacket
 received packet More...


Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
 How long the test takes to execute. More...

- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)
 Constructor. More...

void AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
 Add an individual child TestCase to this test suite. More...

TestCaseGetParent () const
 Get the parent of this TestCsse. More...

bool IsStatusFailure (void) const
 Check if any tests failed. More...

bool IsStatusSuccess (void) const
 Check if all tests passed. More...

void SetDataDir (std::string directory)
 Set the data directory where reference trace files can be found. More...

void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
 Log the failure of this TestCase. More...

bool MustAssertOnFailure (void) const
 Check if this run should assert on failure. More...

bool MustContinueOnFailure (void) const
 Check if this run should continue on failure. More...

std::string CreateDataDirFilename (std::string filename)
 Construct the full path to a file in the data directory. More...

std::string CreateTempDirFilename (std::string filename)
 Construct the full path to a file in a temporary directory. More...


Detailed Description

6LoWPAN HC1 Test

Definition at line 47 of file sixlowpan-hc1-test.cc.

Constructor & Destructor Documentation

◆ SixlowpanHc1ImplTest()

SixlowpanHc1ImplTest::SixlowpanHc1ImplTest ( )

Definition at line 87 of file sixlowpan-hc1-test.cc.

Member Function Documentation

◆ DoRun()

void SixlowpanHc1ImplTest::DoRun ( void  )
virtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 129 of file sixlowpan-hc1-test.cc.

References ns3::Node::AddDevice(), ns3::Packet::CopyData(), ns3::Object::GetObject(), ns3::Packet::GetSize(), ns3::InternetStackHelper::Install(), m_receivedPacket, ns3::MakeCallback(), NS_TEST_EXPECT_MSG_EQ, ReceivePkt(), ns3::Packet::RemoveAllByteTags(), SendData(), and ns3::InternetStackHelper::SetIpv4StackInstall().

+ Here is the call graph for this function:

◆ DoSendData()

void SixlowpanHc1ImplTest::DoSendData ( Ptr< Socket socket,
std::string  to
)
private

Send data function.

Parameters
socketThe sending socket.
toThe destination.

Definition at line 109 of file sixlowpan-hc1-test.cc.

References NS_TEST_EXPECT_MSG_EQ, and ns3::Socket::SendTo().

Referenced by SendData().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ ReceivePacket()

void SixlowpanHc1ImplTest::ReceivePacket ( Ptr< Socket socket,
Ptr< Packet packet,
const Address from
)

Packet receive function.

Parameters
socketThe receiving socket.
packetThe received packet.
fromThe sender.

Definition at line 92 of file sixlowpan-hc1-test.cc.

References m_receivedPacket.

◆ ReceivePkt()

void SixlowpanHc1ImplTest::ReceivePkt ( Ptr< Socket socket)

Packet receive function.

Parameters
socketThe receiving socket.

Definition at line 97 of file sixlowpan-hc1-test.cc.

References ns3::Socket::GetRxAvailable(), ns3::Packet::GetSize(), m_receivedPacket, max, NS_ASSERT, and ns3::Socket::Recv().

Referenced by DoRun().

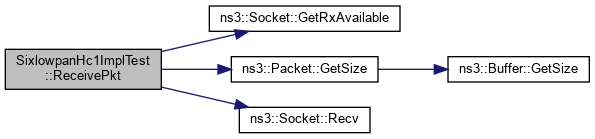

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ SendData()

void SixlowpanHc1ImplTest::SendData ( Ptr< Socket socket,
std::string  to
)
private

Send data function.

Parameters
socketThe sending socket.
toThe destination.

Definition at line 120 of file sixlowpan-hc1-test.cc.

References DoSendData(), ns3::Node::GetId(), ns3::Socket::GetNode(), m_receivedPacket, and ns3::Seconds().

Referenced by DoRun().

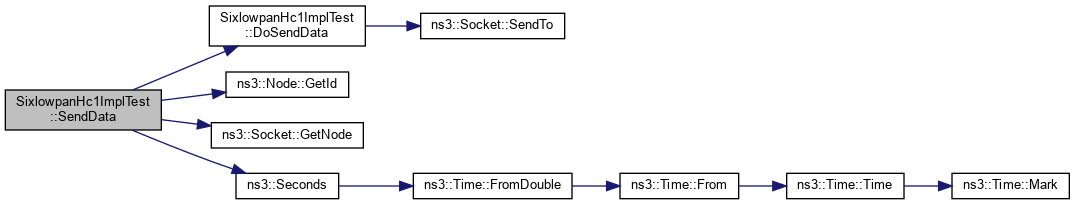

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

Member Data Documentation

◆ m_receivedPacket

Ptr<Packet> SixlowpanHc1ImplTest::m_receivedPacket
private

received packet

Definition at line 49 of file sixlowpan-hc1-test.cc.

Referenced by DoRun(), ReceivePacket(), ReceivePkt(), and SendData().


The documentation for this class was generated from the following file:
