IdealRateManagerChannelWidthTest Class Reference

Make sure that Ideal rate manager properly selects MCS based on the configured channel width. More...

+ Inheritance diagram for IdealRateManagerChannelWidthTest:
+ Collaboration diagram for IdealRateManagerChannelWidthTest:

Public Member Functions

 IdealRateManagerChannelWidthTest ()

virtual ~IdealRateManagerChannelWidthTest ()

void DoRun (void) override
 Implementation to actually run this TestCase. More...

- Public Member Functions inherited from ns3::TestCase
 TestCase (const TestCase &)=delete

virtual ~TestCase ()
 Destructor. More...

std::string GetName (void) const

TestCaseoperator= (const TestCase &)=delete


Private Member Functions

void ChangeChannelWidth (uint16_t channelWidth)
 Change the configured channel width for all nodes. More...

void CheckLastSelectedMode (WifiMode expectedMode)
 Check if the selected WifiMode is correct. More...

void SendPacket (Ptr< NetDevice > sourceDevice, Address &destination)
 Triggers the transmission of a 1000 Byte-long data packet from the source device. More...

void TxCallback (std::string context, WifiConstPsduMap psduMap, WifiTxVector txVector, double txPowerW)
 Callback that indicates a PSDU is being transmitted. More...


Private Attributes

WifiMode m_txMode
 Store the last selected mode to send data packet. More...


Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
 How long the test takes to execute. More...

- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)
 Constructor. More...

void AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
 Add an individual child TestCase to this test suite. More...

TestCaseGetParent () const
 Get the parent of this TestCsse. More...

bool IsStatusFailure (void) const
 Check if any tests failed. More...

bool IsStatusSuccess (void) const
 Check if all tests passed. More...

void SetDataDir (std::string directory)
 Set the data directory where reference trace files can be found. More...

void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
 Log the failure of this TestCase. More...

bool MustAssertOnFailure (void) const
 Check if this run should assert on failure. More...

bool MustContinueOnFailure (void) const
 Check if this run should continue on failure. More...

std::string CreateDataDirFilename (std::string filename)
 Construct the full path to a file in the data directory. More...

std::string CreateTempDirFilename (std::string filename)
 Construct the full path to a file in a temporary directory. More...


Detailed Description

Make sure that Ideal rate manager properly selects MCS based on the configured channel width.

The scenario considers an access point and a fixed station. The access point first sends a 80 MHz PPDU to the station, for which Ideal rate manager should select VH-MCS 0 based on the distance (no interference generated in this test). Then, the access point sends a 20 MHz PPDU to the station, which corresponds to a SNR 6 dB higher than previously, hence VHT-MCS 2 should be selected. Finally, the access point sends a 40 MHz PPDU to the station, which means corresponds to a SNR 3 dB lower than previously, hence VHT-MCS 1 should be selected.

Definition at line 2637 of file wifi-test.cc.

Constructor & Destructor Documentation

◆ IdealRateManagerChannelWidthTest()

IdealRateManagerChannelWidthTest::IdealRateManagerChannelWidthTest ( )

Definition at line 2676 of file wifi-test.cc.

◆ ~IdealRateManagerChannelWidthTest()

IdealRateManagerChannelWidthTest::~IdealRateManagerChannelWidthTest ( )
virtual

Definition at line 2681 of file wifi-test.cc.

Member Function Documentation

◆ ChangeChannelWidth()

void IdealRateManagerChannelWidthTest::ChangeChannelWidth ( uint16_t  channelWidth)
private

Change the configured channel width for all nodes.

Parameters
channelWidththe channel width (in MHz)

Definition at line 2686 of file wifi-test.cc.

References ns3::Config::Set(), and nlohmann::to_string().

Referenced by DoRun().

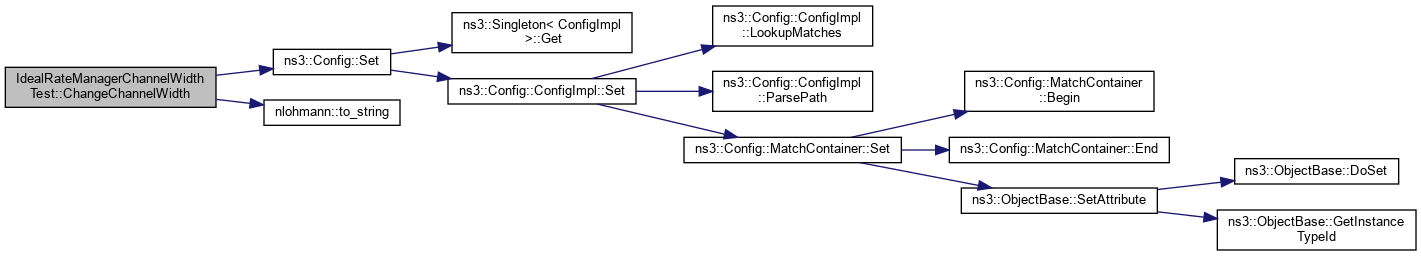

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ CheckLastSelectedMode()

void IdealRateManagerChannelWidthTest::CheckLastSelectedMode ( WifiMode  expectedMode)
private

Check if the selected WifiMode is correct.

Parameters
expectedModethe expected WifiMode

Definition at line 2709 of file wifi-test.cc.

References m_txMode, and NS_TEST_ASSERT_MSG_EQ.

Referenced by DoRun().

+ Here is the caller graph for this function:

◆ DoRun()

void IdealRateManagerChannelWidthTest::DoRun ( void  )
overridevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 2715 of file wifi-test.cc.

References ChangeChannelWidth(), third::channel, CheckLastSelectedMode(), ns3::Config::Connect(), ns3::NodeContainer::Create(), ns3::NetDeviceContainer::Get(), ns3::NetDevice::GetAddress(), third::mac, ns3::MakeCallback(), third::mobility, third::phy, ns3::Seconds(), SendPacket(), TxCallback(), third::wifi, ns3::WIFI_STANDARD_80211ac, and third::wifiApNode.

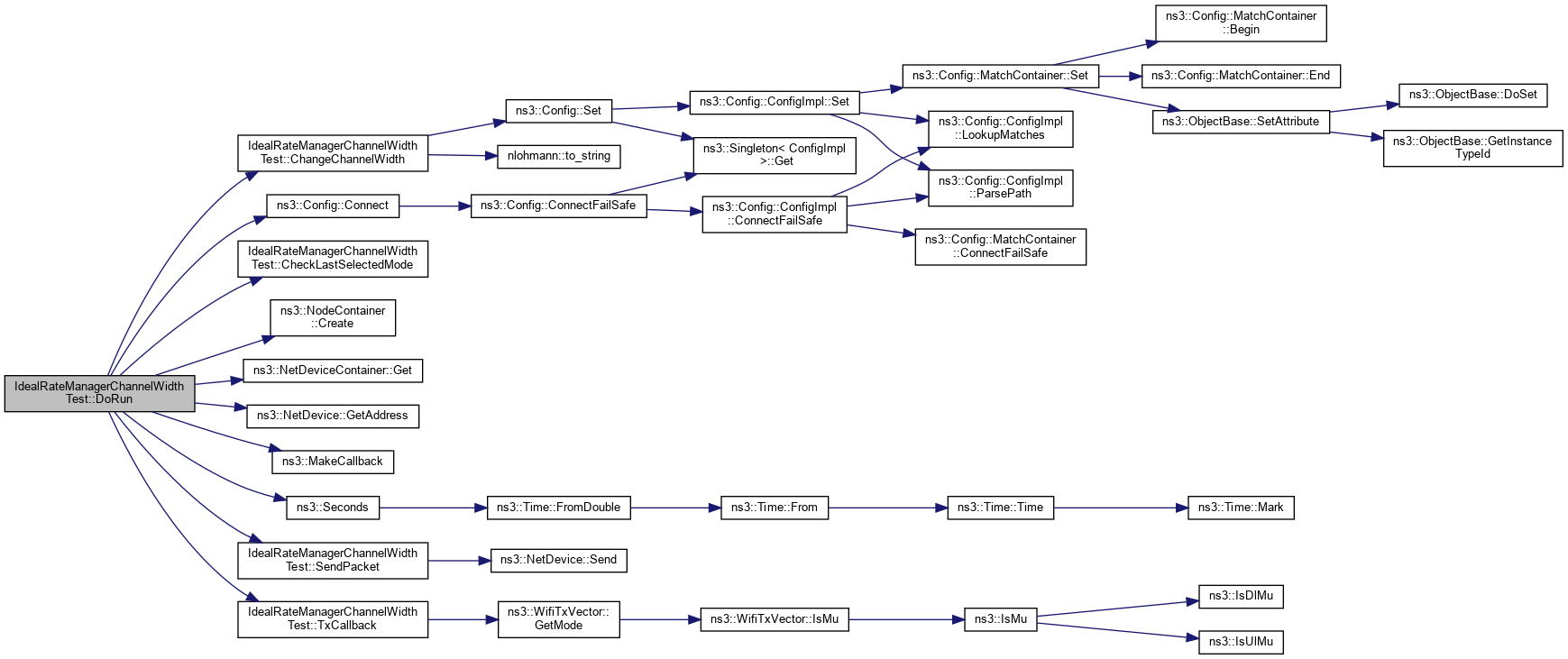

+ Here is the call graph for this function:

◆ SendPacket()

void IdealRateManagerChannelWidthTest::SendPacket ( Ptr< NetDevice sourceDevice,
Address destination
)
private

Triggers the transmission of a 1000 Byte-long data packet from the source device.

Parameters
sourceDevicepointer to the source NetDevice
destinationaddress of the destination device

Definition at line 2693 of file wifi-test.cc.

References ns3::NetDevice::Send().

Referenced by DoRun().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ TxCallback()

void IdealRateManagerChannelWidthTest::TxCallback ( std::string  context,
WifiConstPsduMap  psduMap,
WifiTxVector  txVector,
double  txPowerW
)
private

Callback that indicates a PSDU is being transmitted.

Parameters
contextthe context
psduMapthe PSDU map to transmit
txVectorthe TX vector
txPowerWthe TX power (W)

Definition at line 2700 of file wifi-test.cc.

References ns3::WifiTxVector::GetMode(), and m_txMode.

Referenced by DoRun().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

Member Data Documentation

◆ m_txMode

WifiMode IdealRateManagerChannelWidthTest::m_txMode
private

Store the last selected mode to send data packet.

Definition at line 2673 of file wifi-test.cc.

Referenced by CheckLastSelectedMode(), and TxCallback().


The documentation for this class was generated from the following file:
