ns3::YansErrorRateModel Class Reference

Model the error rate for different modulations. More...

#include "yans-error-rate-model.h"

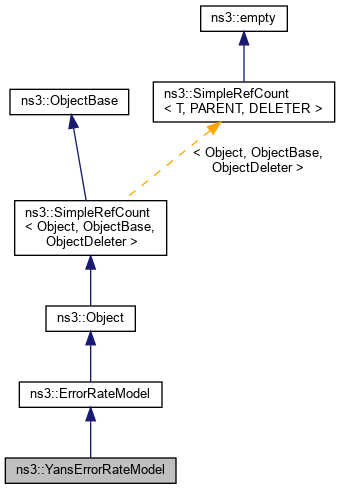

+ Inheritance diagram for ns3::YansErrorRateModel:

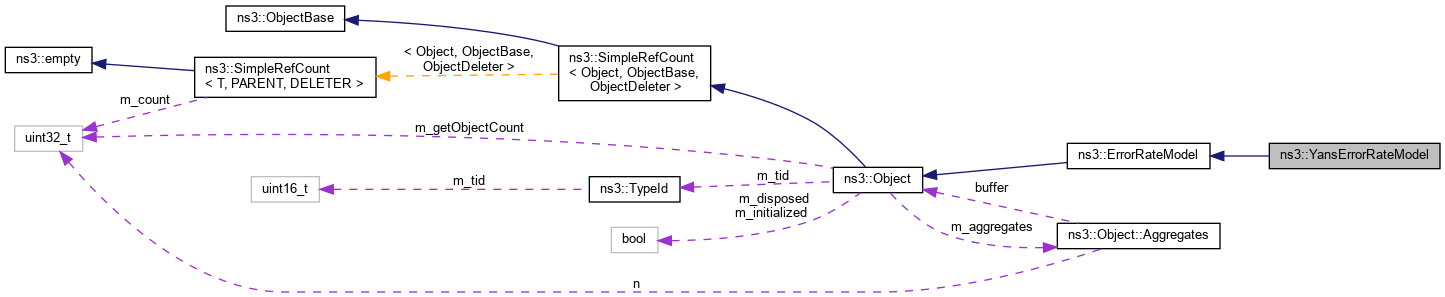

+ Collaboration diagram for ns3::YansErrorRateModel:

Public Member Functions

 YansErrorRateModel ()

- Public Member Functions inherited from ns3::ErrorRateModel
virtual int64_t AssignStreams (int64_t stream)
 Assign a fixed random variable stream number to the random variables used by this model. More...

double CalculateSnr (const WifiTxVector &txVector, double ber) const

double GetChunkSuccessRate (WifiMode mode, const WifiTxVector &txVector, double snr, uint64_t nbits, uint8_t numRxAntennas=1, WifiPpduField field=WIFI_PPDU_FIELD_DATA, uint16_t staId=SU_STA_ID) const
 This method returns the probability that the given 'chunk' of the packet will be successfully received by the PHY. More...

virtual bool IsAwgn (void) const

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= ([[maybe_unused]] const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ErrorRateModel
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

double Binomial (uint32_t k, double p, uint32_t n) const
 Return Binomial distribution for a given k, p, and n. More...

double CalculatePd (double ber, unsigned int d) const

double CalculatePdEven (double ber, unsigned int d) const

double CalculatePdOdd (double ber, unsigned int d) const

double DoGetChunkSuccessRate (WifiMode mode, const WifiTxVector &txVector, double snr, uint64_t nbits, uint8_t numRxAntennas, WifiPpduField field, uint16_t staId) const override
 A pure virtual method that must be implemented in the subclass. More...

uint32_t Factorial (uint32_t k) const
 Return k! More...

double GetBpskBer (double snr, uint32_t signalSpread, uint64_t phyRate) const
 Return BER of BPSK with the given parameters. More...

double GetFecBpskBer (double snr, uint64_t nbits, uint32_t signalSpread, uint64_t phyRate, uint32_t dFree, uint32_t adFree) const

double GetFecQamBer (double snr, uint64_t nbits, uint32_t signalSpread, uint64_t phyRate, uint32_t m, uint32_t dfree, uint32_t adFree, uint32_t adFreePlusOne) const

double GetQamBer (double snr, unsigned int m, uint32_t signalSpread, uint64_t phyRate) const
 Return BER of QAM-m with the given parameters. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoDispose (void)
 Destructor implementation. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Model the error rate for different modulations.

Introspection did not find any typical Config paths.

A packet of interest (e.g., a packet can potentially be received by the MAC) is divided into chunks. Each chunk is related to an start/end receiving event. For each chunk, it calculates the ratio (SINR) between received power of packet of interest and summation of noise and interfering power of all the other incoming packets. Then, it will calculate the success rate of the chunk based on BER of the modulation. The success reception rate of the packet is derived from the success rate of all chunks.

The 802.11b modulations:

  • 1 Mbps mode is based on DBPSK. BER is from equation 5.2-69 from John G. Proakis Digital Communications, 2001 edition
  • 2 Mbps model is based on DQPSK. Equation 8 from "Tight bounds and accurate approximations for DQPSK transmission bit error rate", G. Ferrari and G.E. Corazza ELECTRONICS LETTERS, 40(20):1284-1285, September 2004
  • 5.5 Mbps and 11 Mbps are based on equations (18) and (17) from "Properties and performance of the IEEE 802.11b complementary code-key signal sets", Michael B. Pursley and Thomas C. Royster. IEEE TRANSACTIONS ON COMMUNICATIONS, 57(2):440-449, February 2009.
  • More detailed description and validation can be found in http://www.nsnam.org/~pei/80211b.pdf


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 32 bytes (on a 64-bit architecture).

Definition at line 53 of file yans-error-rate-model.h.

Constructor & Destructor Documentation

◆ YansErrorRateModel()

ns3::YansErrorRateModel::YansErrorRateModel ( )

Definition at line 45 of file yans-error-rate-model.cc.

Member Function Documentation

◆ Binomial()

double ns3::YansErrorRateModel::Binomial ( uint32_t  k,
double  p,
uint32_t  n
) const
private

Return Binomial distribution for a given k, p, and n.

Parameters
k
p
n
Returns
a Binomial distribution

Definition at line 86 of file yans-error-rate-model.cc.

References Factorial(), and bianchi11ax::k.

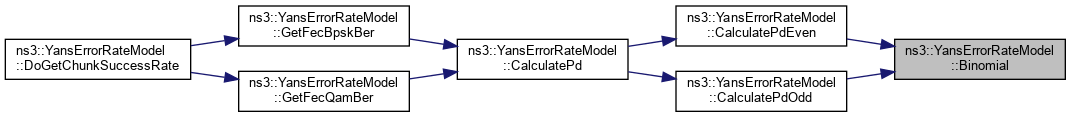

Referenced by CalculatePdEven(), and CalculatePdOdd().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

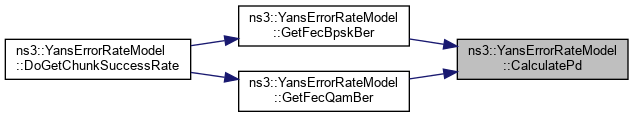

◆ CalculatePd()

double ns3::YansErrorRateModel::CalculatePd ( double  ber,
unsigned int  d
) const
private
Parameters
ber
d
Returns
double

Definition at line 125 of file yans-error-rate-model.cc.

References CalculatePdEven(), CalculatePdOdd(), and NS_LOG_FUNCTION.

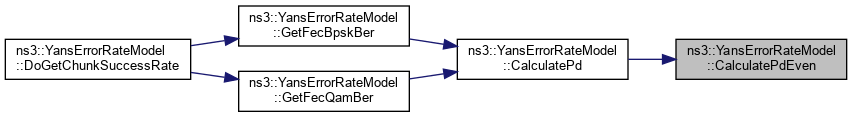

Referenced by GetFecBpskBer(), and GetFecQamBer().

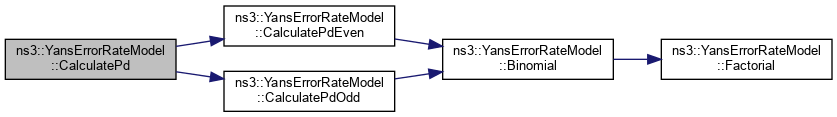

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ CalculatePdEven()

double ns3::YansErrorRateModel::CalculatePdEven ( double  ber,
unsigned int  d
) const
private
Parameters
ber
d
Returns
double

Definition at line 108 of file yans-error-rate-model.cc.

References Binomial(), and NS_ASSERT.

Referenced by CalculatePd().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ CalculatePdOdd()

double ns3::YansErrorRateModel::CalculatePdOdd ( double  ber,
unsigned int  d
) const
private
Parameters
ber
d
Returns
double

Definition at line 93 of file yans-error-rate-model.cc.

References Binomial(), and NS_ASSERT.

Referenced by CalculatePd().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ DoGetChunkSuccessRate()

double ns3::YansErrorRateModel::DoGetChunkSuccessRate ( WifiMode  mode,
const WifiTxVector txVector,
double  snr,
uint64_t  nbits,
uint8_t  numRxAntennas,
WifiPpduField  field,
uint16_t  staId
) const
overrideprivatevirtual

A pure virtual method that must be implemented in the subclass.

Parameters
modethe Wi-Fi mode applicable to this chunk
txVectorTXVECTOR of the overall transmission
snrthe SNR of the chunk
nbitsthe number of bits in this chunk
numRxAntennasthe number of active RX antennas
fieldthe PPDU field to which the chunk belongs to
staIdthe station ID for MU
Returns
probability of successfully receiving the chunk

Implements ns3::ErrorRateModel.

Definition at line 183 of file yans-error-rate-model.cc.

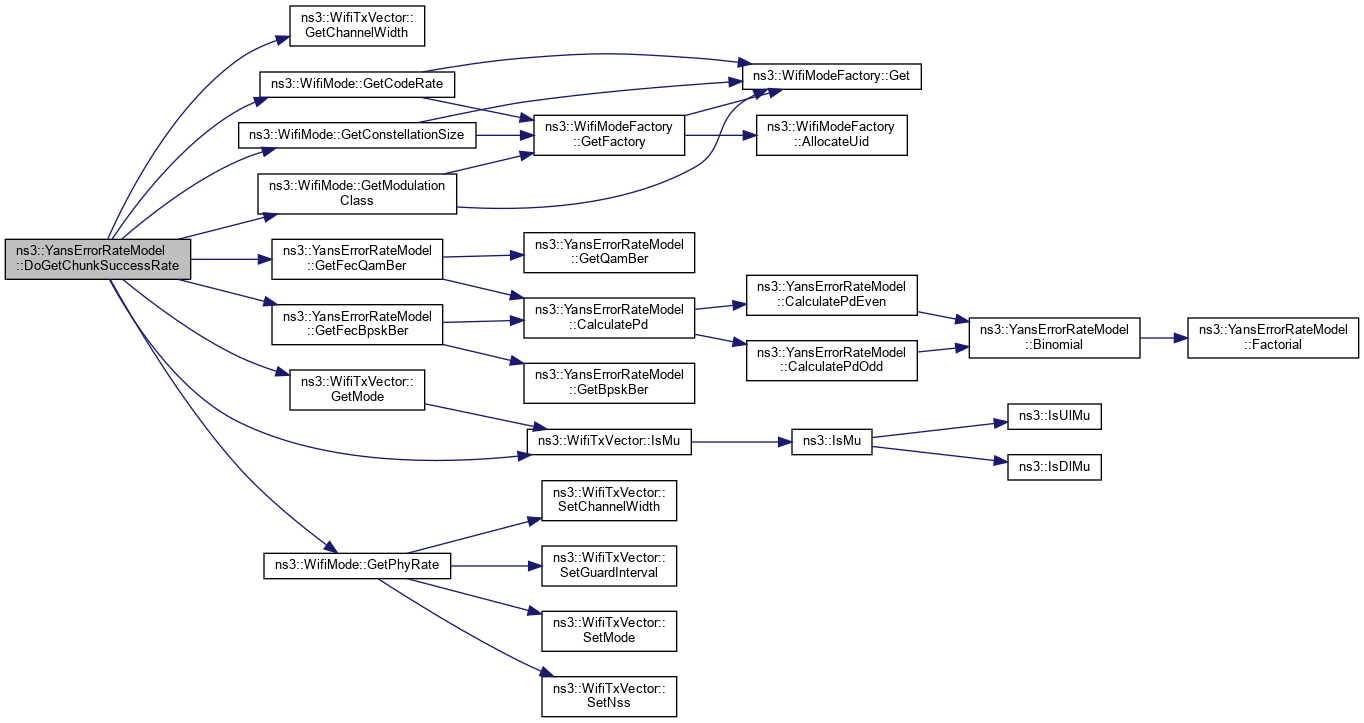

References ns3::WifiTxVector::GetChannelWidth(), ns3::WifiMode::GetCodeRate(), ns3::WifiMode::GetConstellationSize(), GetFecBpskBer(), GetFecQamBer(), ns3::WifiTxVector::GetMode(), ns3::WifiMode::GetModulationClass(), ns3::WifiMode::GetPhyRate(), ns3::WifiTxVector::IsMu(), NS_LOG_FUNCTION, SU_STA_ID, ns3::WIFI_CODE_RATE_1_2, ns3::WIFI_CODE_RATE_2_3, ns3::WIFI_CODE_RATE_5_6, and ns3::WIFI_MOD_CLASS_ERP_OFDM.

+ Here is the call graph for this function:

◆ Factorial()

uint32_t ns3::YansErrorRateModel::Factorial ( uint32_t  k) const
private

Return k!

Parameters
k
Returns
k!

Definition at line 74 of file yans-error-rate-model.cc.

References bianchi11ax::k.

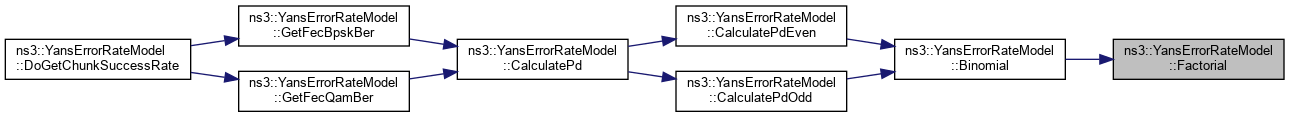

Referenced by Binomial().

+ Here is the caller graph for this function:

◆ GetBpskBer()

double ns3::YansErrorRateModel::GetBpskBer ( double  snr,
uint32_t  signalSpread,
uint64_t  phyRate
) const
private

Return BER of BPSK with the given parameters.

Parameters
snrSNR ratio (not dB)
signalSpread
phyRate
Returns
BER of BPSK at the given SNR

Definition at line 50 of file yans-error-rate-model.cc.

References NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by GetFecBpskBer().

+ Here is the caller graph for this function:

◆ GetFecBpskBer()

double ns3::YansErrorRateModel::GetFecBpskBer ( double  snr,
uint64_t  nbits,
uint32_t  signalSpread,
uint64_t  phyRate,
uint32_t  dFree,
uint32_t  adFree
) const
private
Parameters
snrSNR ratio (not dB)
nbits
signalSpread
phyRate
dFree
adFree
Returns
double

Definition at line 141 of file yans-error-rate-model.cc.

References CalculatePd(), GetBpskBer(), min, and NS_LOG_FUNCTION.

Referenced by DoGetChunkSuccessRate().

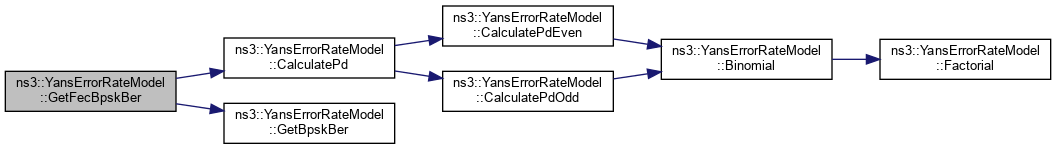

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

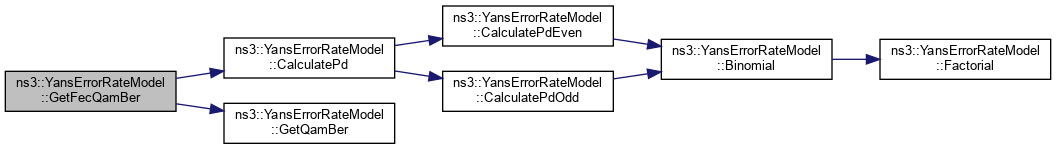

◆ GetFecQamBer()

double ns3::YansErrorRateModel::GetFecQamBer ( double  snr,
uint64_t  nbits,
uint32_t  signalSpread,
uint64_t  phyRate,
uint32_t  m,
uint32_t  dfree,
uint32_t  adFree,
uint32_t  adFreePlusOne
) const
private
Parameters
snrSNR ratio (not dB)
nbits
signalSpread
phyRate
m
dfree
adFree
adFreePlusOne
Returns
double

Definition at line 159 of file yans-error-rate-model.cc.

References CalculatePd(), GetQamBer(), min, and NS_LOG_FUNCTION.

Referenced by DoGetChunkSuccessRate().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetQamBer()

double ns3::YansErrorRateModel::GetQamBer ( double  snr,
unsigned int  m,
uint32_t  signalSpread,
uint64_t  phyRate
) const
private

Return BER of QAM-m with the given parameters.

Parameters
snrSNR ratio (not dB)
m
signalSpread
phyRate
Returns
BER of BPSK at the given SNR

Definition at line 61 of file yans-error-rate-model.cc.

References NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by GetFecQamBer().

+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::YansErrorRateModel::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 35 of file yans-error-rate-model.cc.

References ns3::TypeId::SetParent().

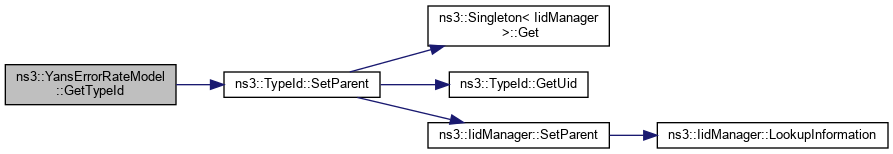

+ Here is the call graph for this function:

The documentation for this class was generated from the following files:
