Introspection did not find any typical Config paths. More...

#include "qkd-encryptor.h"

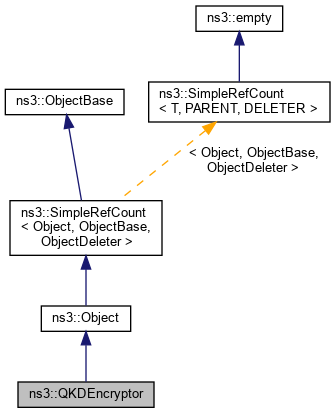

Inheritance diagram for ns3::QKDEncryptor:

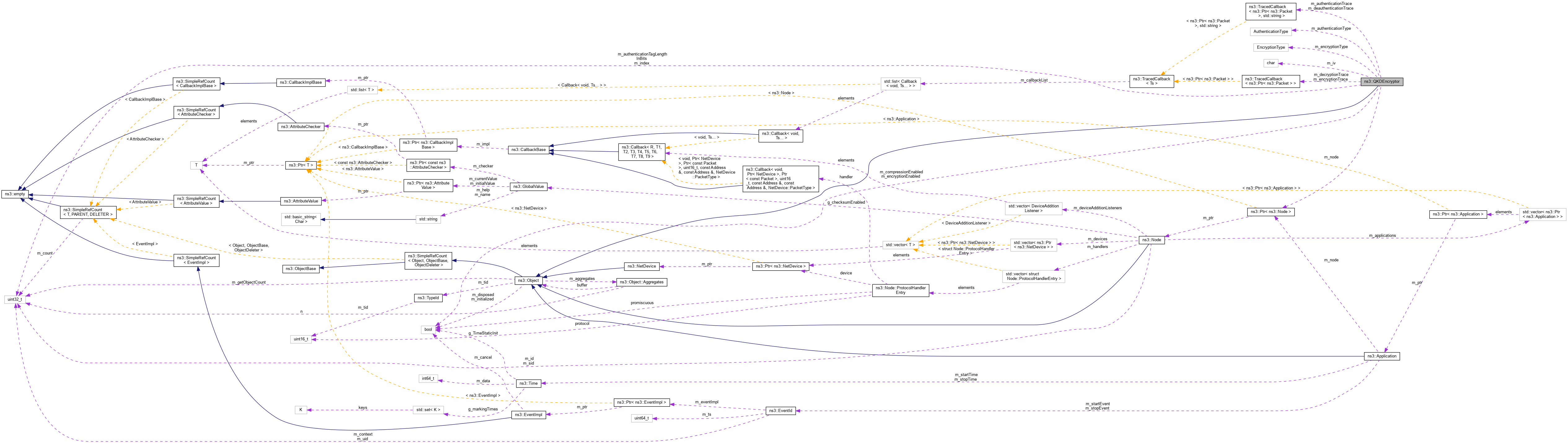

Collaboration diagram for ns3::QKDEncryptor:

Public Types
enum	AuthenticationType { UNAUTHENTICATED , QKDCRYPTO_AUTH_VMAC , QKDCRYPTO_AUTH_MD5 , QKDCRYPTO_AUTH_SHA1 }
	Authentication type. More...

enum	EncryptionType { UNENCRYPTED , QKDCRYPTO_OTP , QKDCRYPTO_AES }
	Encryption type. More...

Public Member Functions
	QKDEncryptor (EncryptionType type1, AuthenticationType type2)
	Constructor. More...

	QKDEncryptor (EncryptionType type1, AuthenticationType type2, uint32_t authTagLength)
	Constructor. More...

virtual	~QKDEncryptor ()
	Destructor. More...

std::string	AESDecrypt (const std::string &key, const std::string &data)
	Decrypt data using AES algorithm. More...

std::string	AESEncrypt (const std::string &key, const std::string &data)
	Encrypt data using AES algorithm. More...

std::string	Authenticate (std::string &data, std::string key="0")
	Calculate an authentication tag on a message. More...

std::string	Base64Decode (std::string input)
	Base64 decoder. More...

std::string	Base64Encode (std::string input)
	Base64 encoder. More...

void	ChangeSettings (EncryptionType type1, AuthenticationType type2, uint32_t authTagLength)
	Constructor. More...

bool	CheckAuthentication (std::string payload, std::string authTag, std::string key="0")
	Authenticate the packet. More...

std::string	DecryptMsg (std::string input, std::string key)
	Decrypt a ciphertext. More...

std::string	EncryptMsg (std::string input, std::string key)
	Encrypt a plaintext. More...

uint32_t	GetIndex ()
	Get the internal index identifier in the qkd encryptor container. More...

Ptr< Node >	GetNode ()
	Get details about the node on which qkd encryptor is installed. More...

std::string	HexDecode (const std::string &data)
	Decode the HEX string. More...

std::string	HexEncode (const std::string &data)
	Encode the string to the HEX string. More...

std::string	MD5 (std::string &inputString)
	Calculate MD5 authentication tag. More...

std::string	OTP (const std::string &key, const std::string &data)
	Apply the One-Time Pad cipher. More...

void	SetIndex (uint32_t index)
	Set the internal index identifier in the qkd encryptor container. More...

void	SetNode (Ptr< Node > node)
	Set node on which qkd encryptor is installed. More...

std::string	SHA1 (std::string &inputString)
	Calucale SHA1 authentication tag. More...

std::string	VMAC (std::string &key, std::string &inputString)
	Calculate authentication tag in Wegman-Carter fashion. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the TypeId. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint32_t	m_authenticationTagLengthInBits
	A length of the authentication tag in bits (32 by default). More...

TracedCallback< Ptr< Packet >, std::string >	m_authenticationTrace
	A trace callback for the authentication. More...

AuthenticationType	m_authenticationType
	The authentication algorithm. More...

bool	m_compressionEnabled
	Should compression algorithms be used? More...

TracedCallback< Ptr< Packet >, std::string >	m_deauthenticationTrace
	A trace callback for the authentication check. More...

TracedCallback< Ptr< Packet > >	m_decryptionTrace
	A trace callback for the decryption. More...

bool	m_encryptionEnabled
	Execute the actual encryption algorithm? More...

TracedCallback< Ptr< Packet > >	m_encryptionTrace
	A trace callback for the encryption. More...

EncryptionType	m_encryptionType
	The encryption algorithm. More...

uint32_t	m_index
	An index in the qkd encryptor container. More...

byte	m_iv [CryptoPP::AES::BLOCKSIZE]

Ptr< Node >	m_node
	A pointer to the node on which the encryptor is installed. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Introspection did not find any typical Config paths.

Attributes

CompressionEnabled: Indicates whether a compression of packets is enabled.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
EncryptionEnabled: Indicates whether a real encryption of packets is enabled.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read

TraceSources

PacketEncrypted: The change trance for currenly ecrypted packet
Callback signature: ns3::QKDEncryptor::PacketEncrypted
PacketDecrypted: The change trance for currenly decrypted packet
Callback signature: ns3::QKDEncryptor::PacketDecrypted
PacketAuthenticated: The change trance for currenly authenticated packet
Callback signature: ns3::QKDEncryptor::PacketAuthenticated
PacketDeAuthenticated: The change trance for currenly deauthenticated packet
Callback signature: ns3::QKDEncryptor::PacketDeAuthenticated

Size of this type is 176 bytes (on a 64-bit architecture).

Definition at line 89 of file qkd-encryptor.h.

Member Enumeration Documentation

◆ AuthenticationType

enum ns3::QKDEncryptor::AuthenticationType

Authentication type.

Enumerator
UNAUTHENTICATED
QKDCRYPTO_AUTH_VMAC
QKDCRYPTO_AUTH_MD5
QKDCRYPTO_AUTH_SHA1

Definition at line 105 of file qkd-encryptor.h.

◆ EncryptionType

enum ns3::QKDEncryptor::EncryptionType

Encryption type.

Enumerator
UNENCRYPTED
QKDCRYPTO_OTP
QKDCRYPTO_AES

Definition at line 96 of file qkd-encryptor.h.

Constructor & Destructor Documentation

◆ QKDEncryptor() [1/2]

ns3::QKDEncryptor::QKDEncryptor	(	EncryptionType	type1,
		AuthenticationType	type2
	)

Constructor.

Definition at line 84 of file qkd-encryptor.cc.

References ChangeSettings(), m_iv, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ QKDEncryptor() [2/2]

ns3::QKDEncryptor::QKDEncryptor	(	EncryptionType	type1,
		AuthenticationType	type2,
		uint32_t	authTagLength
	)

Constructor.

Definition at line 93 of file qkd-encryptor.cc.

References ChangeSettings(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ ~QKDEncryptor()

ns3::QKDEncryptor::~QKDEncryptor ( )

virtual

Destructor.

Definition at line 118 of file qkd-encryptor.cc.

Member Function Documentation

◆ AESDecrypt()

std::string ns3::QKDEncryptor::AESDecrypt	(	const std::string &	key,
		const std::string &	data
	)

Decrypt data using AES algorithm.

Parameters

key	The decryption key.
data	The ciphertext.

Returns: The plaintext.

Definition at line 288 of file qkd-encryptor.cc.

References data, m_iv, and NS_LOG_FUNCTION.

Referenced by DecryptMsg().

Here is the caller graph for this function:

◆ AESEncrypt()

std::string ns3::QKDEncryptor::AESEncrypt	(	const std::string &	key,
		const std::string &	data
	)

Encrypt data using AES algorithm.

Parameters

key	The encryption key.
data	The plaintext.

Returns: The ciphertext.

Definition at line 268 of file qkd-encryptor.cc.

References data, m_iv, and NS_LOG_FUNCTION.

Referenced by EncryptMsg().

Here is the caller graph for this function:

◆ Authenticate()

std::string ns3::QKDEncryptor::Authenticate	(	std::string &	data,
		std::string	key = `"0"`
	)

Calculate an authentication tag on a message.

Parameters

data	The message.
key	The authentication key (if VMAC is applied).

Returns: The authentication tag.

Definition at line 184 of file qkd-encryptor.cc.

References m_authenticationType, MD5(), NS_LOG_FUNCTION, QKDCRYPTO_AUTH_MD5, QKDCRYPTO_AUTH_SHA1, QKDCRYPTO_AUTH_VMAC, SHA1(), UNAUTHENTICATED, and VMAC().

Referenced by CheckAuthentication().

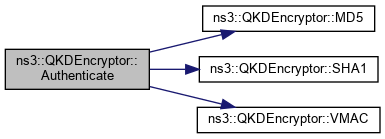

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Base64Decode()

std::string ns3::QKDEncryptor::Base64Decode ( std::string input )

Base64 decoder.

Parameters

input The input data.

Returns: The decoded input.

Definition at line 235 of file qkd-encryptor.cc.

◆ Base64Encode()

std::string ns3::QKDEncryptor::Base64Encode ( std::string input )

Base64 encoder.

Parameters

input The input data.

Returns: The base64 encoded input.

Definition at line 223 of file qkd-encryptor.cc.

◆ ChangeSettings()

void ns3::QKDEncryptor::ChangeSettings	(	EncryptionType	type1,
		AuthenticationType	type2,
		uint32_t	authTagLength
	)

Constructor.

Definition at line 103 of file qkd-encryptor.cc.

References m_authenticationTagLengthInBits, m_authenticationType, m_encryptionType, and NS_FATAL_ERROR.

Referenced by QKDEncryptor().

Here is the caller graph for this function:

◆ CheckAuthentication()

bool ns3::QKDEncryptor::CheckAuthentication	(	std::string	payload,
		std::string	authTag,
		std::string	key = `"0"`
	)

Authenticate the packet.

Parameters

payload	The packet payload.
authTag	The received authentication tag.
key	The authentication key.

Returns: The authentication result.

Definition at line 206 of file qkd-encryptor.cc.

References Authenticate(), and NS_LOG_FUNCTION.

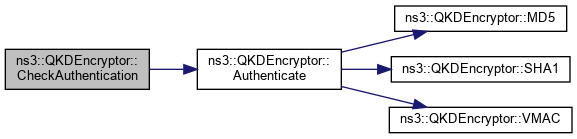

Here is the call graph for this function:

◆ DecryptMsg()

std::string ns3::QKDEncryptor::DecryptMsg	(	std::string	input,
		std::string	key
	)

Decrypt a ciphertext.

Parameters

input	The ciphertext.
key	The encryption key.

Returns: The plaintext.

Definition at line 163 of file qkd-encryptor.cc.

References AESDecrypt(), m_encryptionType, NS_LOG_FUNCTION, OTP(), QKDCRYPTO_AES, QKDCRYPTO_OTP, and UNENCRYPTED.

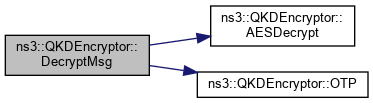

Here is the call graph for this function:

◆ EncryptMsg()

std::string ns3::QKDEncryptor::EncryptMsg	(	std::string	input,
		std::string	key
	)

Encrypt a plaintext.

Parameters

input	The plaintext.
key	The encryption key.

Returns: The ciphertext.

Definition at line 142 of file qkd-encryptor.cc.

References AESEncrypt(), m_encryptionType, NS_LOG_FUNCTION, OTP(), QKDCRYPTO_AES, QKDCRYPTO_OTP, and UNENCRYPTED.

Here is the call graph for this function:

◆ GetIndex()

uint32_t ns3::QKDEncryptor::GetIndex ( )

Get the internal index identifier in the qkd encryptor container.

@featureTask

Returns: The internal index identifier.

Definition at line 137 of file qkd-encryptor.cc.

References m_index.

◆ GetNode()

Ptr< Node > ns3::QKDEncryptor::GetNode ( void )

Get details about the node on which qkd encryptor is installed.

Returns: The node

Definition at line 128 of file qkd-encryptor.cc.

References m_node.

◆ GetTypeId()

TypeId ns3::QKDEncryptor::GetTypeId ( void )

static

Get the TypeId.

Returns: The TypeId for this class.

Definition at line 50 of file qkd-encryptor.cc.

References m_authenticationTrace, m_compressionEnabled, m_deauthenticationTrace, m_decryptionTrace, m_encryptionEnabled, m_encryptionTrace, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ HexDecode()

std::string ns3::QKDEncryptor::HexDecode ( const std::string & data )

Decode the HEX string.

Parameters

data	The input HEX string.

Returns: The decoded string.

Definition at line 321 of file qkd-encryptor.cc.

References data, and NS_LOG_FUNCTION.

◆ HexEncode()

std::string ns3::QKDEncryptor::HexEncode ( const std::string & data )

Encode the string to the HEX string.

Parameters

data	The input string.

Returns: The HEX encoded string.

Definition at line 308 of file qkd-encryptor.cc.

References data, and NS_LOG_FUNCTION.

◆ MD5()

std::string ns3::QKDEncryptor::MD5 ( std::string & inputString )

Calculate MD5 authentication tag.

Parameters

inputString The input message.

Returns: The authentication tag.

Definition at line 358 of file qkd-encryptor.cc.

References m_authenticationTagLengthInBits, and NS_LOG_FUNCTION.

Referenced by Authenticate().

Here is the caller graph for this function:

◆ OTP()

std::string ns3::QKDEncryptor::OTP	(	const std::string &	key,
		const std::string &	data
	)

Apply the One-Time Pad cipher.

Parameters

key	The encryption/decryption key.
data	The plaintext/ciphertext.

Returns: The ciphertext/plaintext.

Definition at line 247 of file qkd-encryptor.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by DecryptMsg(), and EncryptMsg().

Here is the caller graph for this function:

◆ SetIndex()

void ns3::QKDEncryptor::SetIndex ( uint32_t index )

Set the internal index identifier in the qkd encryptor container.

@featureTask

Parameters

index The internal index identifier.

Definition at line 133 of file qkd-encryptor.cc.

References m_index.

◆ SetNode()

void ns3::QKDEncryptor::SetNode ( Ptr< Node > node )

Set node on which qkd encryptor is installed.

Parameters

node The node

Definition at line 124 of file qkd-encryptor.cc.

References m_node.

◆ SHA1()

std::string ns3::QKDEncryptor::SHA1 ( std::string & inputString )

Calucale SHA1 authentication tag.

Parameters

inputString The input message.

Returns: The authentication tag.

Definition at line 379 of file qkd-encryptor.cc.

References m_authenticationTagLengthInBits, and NS_LOG_FUNCTION.

Referenced by Authenticate().

Here is the caller graph for this function:

◆ VMAC()

std::string ns3::QKDEncryptor::VMAC	(	std::string &	key,
		std::string &	inputString
	)

Calculate authentication tag in Wegman-Carter fashion.

Parameters

key	The authentication key.
inputString	The input message.

Returns: The authentication tag.

Definition at line 334 of file qkd-encryptor.cc.

References m_iv, and NS_LOG_FUNCTION.

Referenced by Authenticate().

Here is the caller graph for this function:

Member Data Documentation

◆ m_authenticationTagLengthInBits

uint32_t ns3::QKDEncryptor::m_authenticationTagLengthInBits

private

A length of the authentication tag in bits (32 by default).

Definition at line 275 of file qkd-encryptor.h.

Referenced by ChangeSettings(), MD5(), and SHA1().

◆ m_authenticationTrace

TracedCallback<Ptr<Packet>, std::string > ns3::QKDEncryptor::m_authenticationTrace

private

A trace callback for the authentication.

Definition at line 283 of file qkd-encryptor.h.

Referenced by GetTypeId().

◆ m_authenticationType

AuthenticationType ns3::QKDEncryptor::m_authenticationType

private

The authentication algorithm.

Definition at line 278 of file qkd-encryptor.h.

Referenced by Authenticate(), and ChangeSettings().

◆ m_compressionEnabled

bool ns3::QKDEncryptor::m_compressionEnabled

private

Should compression algorithms be used?

Definition at line 274 of file qkd-encryptor.h.

Referenced by GetTypeId().

◆ m_deauthenticationTrace

TracedCallback<Ptr<Packet>, std::string > ns3::QKDEncryptor::m_deauthenticationTrace

private

A trace callback for the authentication check.

Definition at line 284 of file qkd-encryptor.h.

Referenced by GetTypeId().

◆ m_decryptionTrace

TracedCallback<Ptr<Packet> > ns3::QKDEncryptor::m_decryptionTrace

private

A trace callback for the decryption.

Definition at line 281 of file qkd-encryptor.h.

Referenced by GetTypeId().

◆ m_encryptionEnabled

bool ns3::QKDEncryptor::m_encryptionEnabled

private

Execute the actual encryption algorithm?

Definition at line 273 of file qkd-encryptor.h.

Referenced by GetTypeId().

◆ m_encryptionTrace

TracedCallback<Ptr<Packet> > ns3::QKDEncryptor::m_encryptionTrace

private

A trace callback for the encryption.

Definition at line 280 of file qkd-encryptor.h.

Referenced by GetTypeId().

◆ m_encryptionType

EncryptionType ns3::QKDEncryptor::m_encryptionType

private

The encryption algorithm.

Definition at line 277 of file qkd-encryptor.h.

Referenced by ChangeSettings(), DecryptMsg(), and EncryptMsg().

◆ m_index

uint32_t ns3::QKDEncryptor::m_index

private

An index in the qkd encryptor container.

Definition at line 271 of file qkd-encryptor.h.

Referenced by GetIndex(), and SetIndex().

◆ m_iv

byte ns3::QKDEncryptor::m_iv[CryptoPP::AES::BLOCKSIZE]

private

Definition at line 268 of file qkd-encryptor.h.

Referenced by QKDEncryptor(), AESDecrypt(), AESEncrypt(), and VMAC().

◆ m_node

Ptr<Node> ns3::QKDEncryptor::m_node

private

A pointer to the node on which the encryptor is installed.

Definition at line 270 of file qkd-encryptor.h.

Referenced by GetNode(), and SetNode().

The documentation for this class was generated from the following files:

src/qkd/model/qkd-encryptor.h
src/qkd/model/qkd-encryptor.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Attributes

TraceSources

Member Enumeration Documentation

◆ AuthenticationType

◆ EncryptionType

Constructor & Destructor Documentation

◆ QKDEncryptor() [1/2]

◆ QKDEncryptor() [2/2]

◆ ~QKDEncryptor()

Member Function Documentation

◆ AESDecrypt()

◆ AESEncrypt()

◆ Authenticate()

◆ Base64Decode()

◆ Base64Encode()

◆ ChangeSettings()

◆ CheckAuthentication()

◆ DecryptMsg()

◆ EncryptMsg()

◆ GetIndex()

◆ GetNode()

◆ GetTypeId()

◆ HexDecode()

◆ HexEncode()

◆ MD5()

◆ OTP()

◆ SetIndex()

◆ SetNode()

◆ SHA1()

◆ VMAC()

Member Data Documentation

◆ m_authenticationTagLengthInBits

◆ m_authenticationTrace

◆ m_authenticationType

◆ m_compressionEnabled

◆ m_deauthenticationTrace

◆ m_decryptionTrace

◆ m_encryptionEnabled

◆ m_encryptionTrace

◆ m_encryptionType

◆ m_index

◆ m_iv

◆ m_node
