ns3::EpcX2Sap::RelativeNarrowbandTxBand Struct Reference

Relative Narrowband Tx Power (RNTP) as it is used in the LOAD INFORMATION message. More...

#include "epc-x2-sap.h"

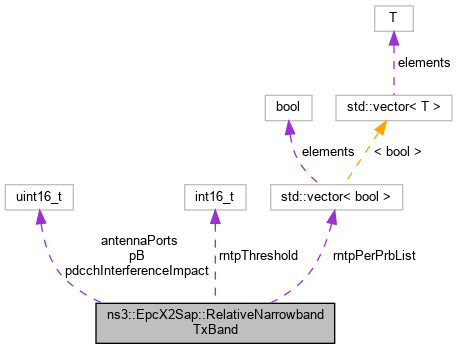

Collaboration diagram for ns3::EpcX2Sap::RelativeNarrowbandTxBand:

Public Attributes
uint16_t	antennaPorts {UINT16_MAX}
	antenna ports More...
uint16_t	pB {UINT16_MAX}
	PB. More...
uint16_t	pdcchInterferenceImpact {UINT16_MAX}
	PDC channel interference list. More...
std::vector< bool >	rntpPerPrbList
	RNTP per prb list. More...
int16_t	rntpThreshold {INT16_MIN}
	RNTP threshold. More...

Detailed Description

Relative Narrowband Tx Power (RNTP) as it is used in the LOAD INFORMATION message.

See section 9.2.19 for further info about the parameters

Note: You can use INT16_MIN value for -infinite value in the rntpThreshold field

Definition at line 142 of file epc-x2-sap.h.

Member Data Documentation

antennaPorts

uint16_t ns3::EpcX2Sap::RelativeNarrowbandTxBand::antennaPorts {UINT16_MAX}

antenna ports

Definition at line 146 of file epc-x2-sap.h.

Referenced by ns3::EpcX2LoadInformationHeader::Deserialize().

pB

uint16_t ns3::EpcX2Sap::RelativeNarrowbandTxBand::pB {UINT16_MAX}

PB.

Definition at line 147 of file epc-x2-sap.h.

Referenced by ns3::EpcX2LoadInformationHeader::Deserialize().

pdcchInterferenceImpact

uint16_t ns3::EpcX2Sap::RelativeNarrowbandTxBand::pdcchInterferenceImpact {UINT16_MAX}

PDC channel interference list.

Definition at line 148 of file epc-x2-sap.h.

Referenced by ns3::EpcX2LoadInformationHeader::Deserialize().

rntpPerPrbList

std::vector<bool> ns3::EpcX2Sap::RelativeNarrowbandTxBand::rntpPerPrbList

RNTP per prb list.

Definition at line 144 of file epc-x2-sap.h.

Referenced by ns3::EpcX2LoadInformationHeader::Deserialize(), and ns3::LteFfrDistributedAlgorithm::SendLoadInformation().

rntpThreshold

int16_t ns3::EpcX2Sap::RelativeNarrowbandTxBand::rntpThreshold {INT16_MIN}

RNTP threshold.

Definition at line 145 of file epc-x2-sap.h.

Referenced by ns3::EpcX2LoadInformationHeader::Deserialize().

---

The documentation for this struct was generated from the following file:

• src/lte/model/epc-x2-sap.h
