pfifo-vs-red.cc File Reference

#include "ns3/core-module.h"
#include "ns3/network-module.h"
#include "ns3/internet-module.h"
#include "ns3/point-to-point-module.h"
#include "ns3/applications-module.h"
#include "ns3/point-to-point-layout-module.h"
#include "ns3/traffic-control-module.h"
#include <iostream>
#include <iomanip>
#include <map>

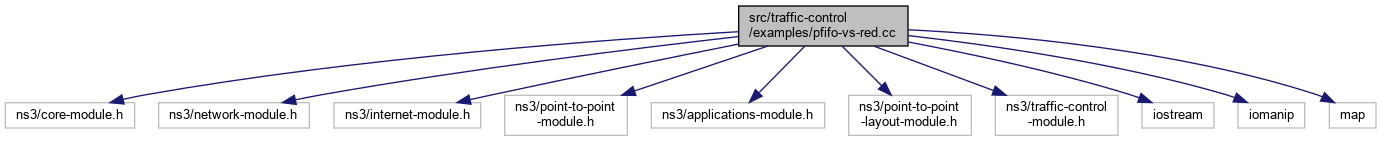

Include dependency graph for pfifo-vs-red.cc:

Go to the source code of this file.

Detailed Description

Usage

$ ./ns3 run "pfifo-vs-red [Program Options]"

Program Options

–nLeaf

Number of left and right side leaf nodes [5]

–maxPackets

Max Packets allowed in the device queue [100]

–queueDiscLimitPackets

Max Packets allowed in the queue disc [1000]

–queueDiscType

Set QueueDisc type to PfifoFast or RED [PfifoFast]

–appPktSize

Set OnOff App Packet Size [512]

–appDataRate

Set OnOff App DataRate [10Mbps]

–modeBytes

Set QueueDisc mode to Packets <0> or bytes <1> [0]

–redMinTh

RED queue minimum threshold [50]

–redMaxTh

RED queue maximum threshold [80]

Definition in file pfifo-vs-red.cc.
