ns3::TcpOptionSackPermitted Class Reference

Defines the TCP option of kind 4 (selective acknowledgment permitted option) as in RFC 2018 More...

#include "tcp-option-sack-permitted.h"

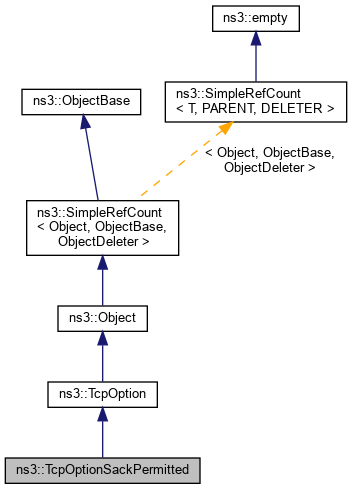

+ Inheritance diagram for ns3::TcpOptionSackPermitted:

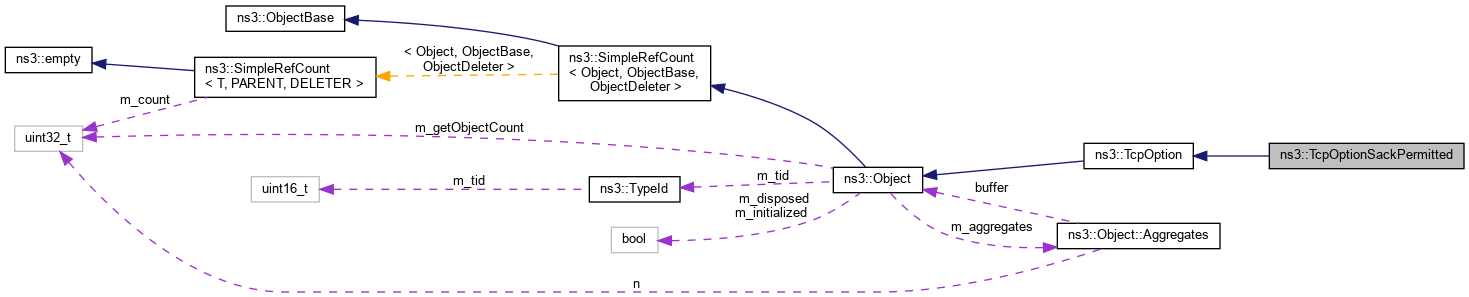

+ Collaboration diagram for ns3::TcpOptionSackPermitted:

Public Member Functions

 TcpOptionSackPermitted ()

virtual ~TcpOptionSackPermitted ()

virtual uint32_t Deserialize (Buffer::Iterator start)
 Deserialize the Option from a buffer iterator. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

virtual uint8_t GetKind (void) const
 Get the ‘kind’ (as in RFC 793) of this option. More...

virtual uint32_t GetSerializedSize (void) const
 Returns number of bytes required for Option serialization. More...

virtual void Print (std::ostream &os) const
 Print the Option contents. More...

virtual void Serialize (Buffer::Iterator start) const
 Serialize the Option to a buffer iterator. More...

- Public Member Functions inherited from ns3::TcpOption
 TcpOption ()

virtual ~TcpOption ()

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= ([[maybe_unused]] const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::TcpOption
static Ptr< TcpOptionCreateOption (uint8_t kind)
 Creates an option. More...

static TypeId GetTypeId (void)
 Get the type ID. More...

static bool IsKindKnown (uint8_t kind)
 Check if the option is implemented. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Additional Inherited Members

- Public Types inherited from ns3::TcpOption
enum  Kind {
  END = 0 , NOP = 1 , MSS = 2 , WINSCALE = 3 ,
  SACKPERMITTED = 4 , SACK = 5 , TS = 8 , UNKNOWN = 255
}
 The option Kind, as defined in the respective RFCs. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoDispose (void)
 Destructor implementation. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Defines the TCP option of kind 4 (selective acknowledgment permitted option) as in RFC 2018

Introspection did not find any typical Config paths.

TCP Sack-Permitted Option is 2-byte in length and sent in a SYN segment by a TCP host that can recognize and process SACK option during the lifetime of a connection.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 32 bytes (on a 64-bit architecture).

Definition at line 42 of file tcp-option-sack-permitted.h.

Constructor & Destructor Documentation

◆ TcpOptionSackPermitted()

ns3::TcpOptionSackPermitted::TcpOptionSackPermitted ( )

Definition at line 35 of file tcp-option-sack-permitted.cc.

◆ ~TcpOptionSackPermitted()

ns3::TcpOptionSackPermitted::~TcpOptionSackPermitted ( )
virtual

Definition at line 40 of file tcp-option-sack-permitted.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::TcpOptionSackPermitted::Deserialize ( Buffer::Iterator  start)
virtual

Deserialize the Option from a buffer iterator.

Parameters
startthe buffer iterator
Returns
the number of deserialized bytes

Implements ns3::TcpOption.

Definition at line 82 of file tcp-option-sack-permitted.cc.

References GetKind(), GetSerializedSize(), NS_LOG_WARN, ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

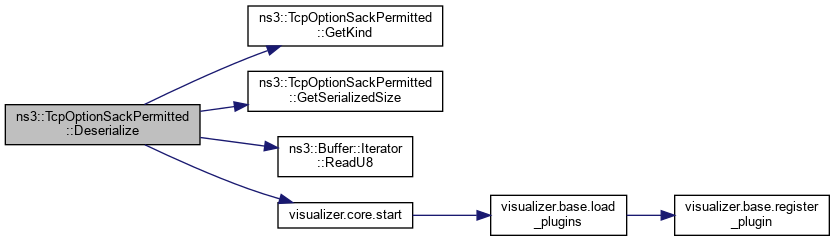

+ Here is the call graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::TcpOptionSackPermitted::GetInstanceTypeId ( void  ) const
virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Reimplemented from ns3::TcpOption.

Definition at line 56 of file tcp-option-sack-permitted.cc.

References GetTypeId().

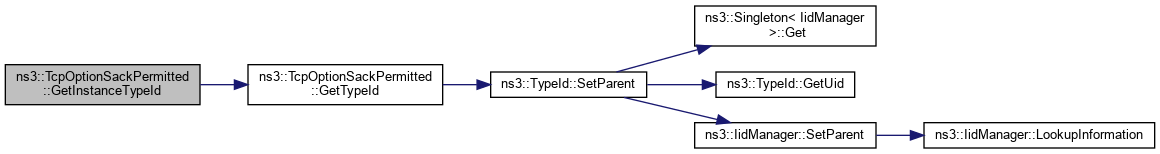

+ Here is the call graph for this function:

◆ GetKind()

uint8_t ns3::TcpOptionSackPermitted::GetKind ( void  ) const
virtual

Get the ‘kind’ (as in RFC 793) of this option.

Returns
the Option Kind

Implements ns3::TcpOption.

Definition at line 103 of file tcp-option-sack-permitted.cc.

References ns3::TcpOption::SACKPERMITTED.

Referenced by Deserialize(), and Serialize().

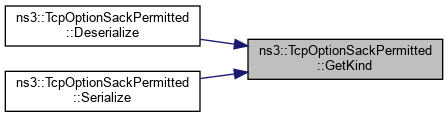

+ Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::TcpOptionSackPermitted::GetSerializedSize ( void  ) const
virtual

Returns number of bytes required for Option serialization.

Returns
number of bytes required for Option serialization

Implements ns3::TcpOption.

Definition at line 68 of file tcp-option-sack-permitted.cc.

Referenced by Deserialize().

+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::TcpOptionSackPermitted::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 45 of file tcp-option-sack-permitted.cc.

References ns3::TypeId::SetParent().

Referenced by ns3::TcpOption::CreateOption(), and GetInstanceTypeId().

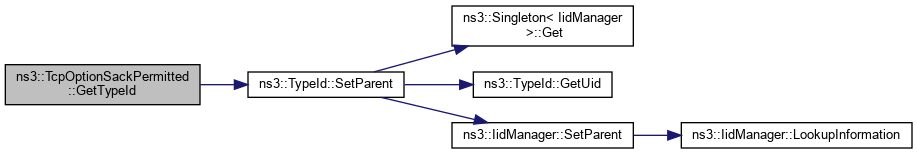

+ Here is the call graph for this function:

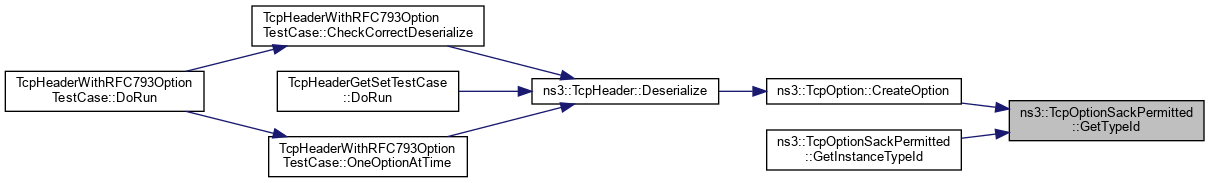

+ Here is the caller graph for this function:

◆ Print()

void ns3::TcpOptionSackPermitted::Print ( std::ostream &  os) const
virtual

Print the Option contents.

Parameters
osthe output stream

Implements ns3::TcpOption.

Definition at line 62 of file tcp-option-sack-permitted.cc.

◆ Serialize()

void ns3::TcpOptionSackPermitted::Serialize ( Buffer::Iterator  start) const
virtual

Serialize the Option to a buffer iterator.

Parameters
startthe buffer iterator

Implements ns3::TcpOption.

Definition at line 74 of file tcp-option-sack-permitted.cc.

References GetKind(), visualizer.core::start(), and ns3::Buffer::Iterator::WriteU8().

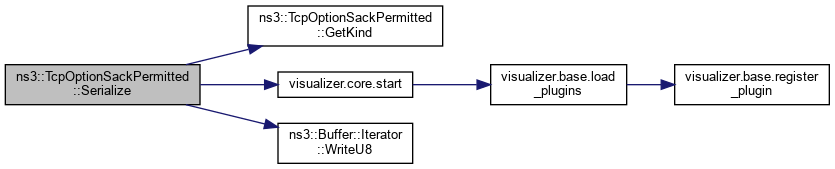

+ Here is the call graph for this function:
