ns3::RrcConnectionReconfigurationHeader Class Reference

This class manages the serialization/deserialization of RrcConnectionReconfiguration IE. More...

#include "lte-rrc-header.h"

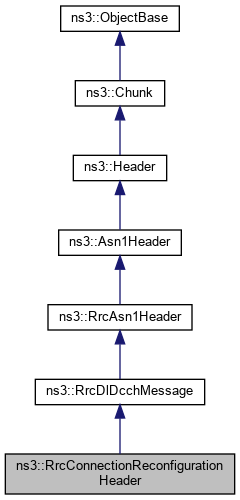

+ Inheritance diagram for ns3::RrcConnectionReconfigurationHeader:

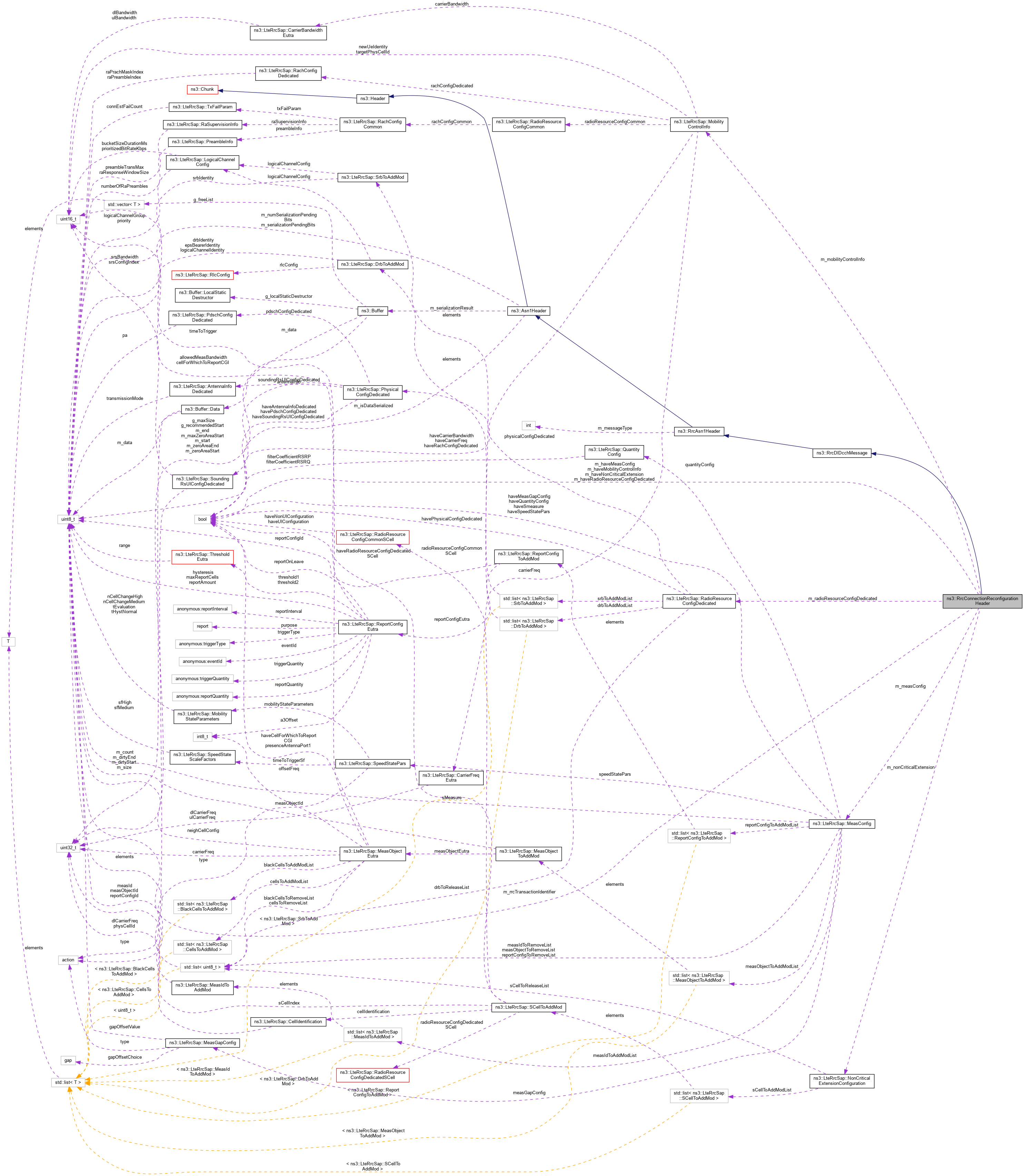

+ Collaboration diagram for ns3::RrcConnectionReconfigurationHeader:

Public Member Functions

 RrcConnectionReconfigurationHeader ()

 ~RrcConnectionReconfigurationHeader ()

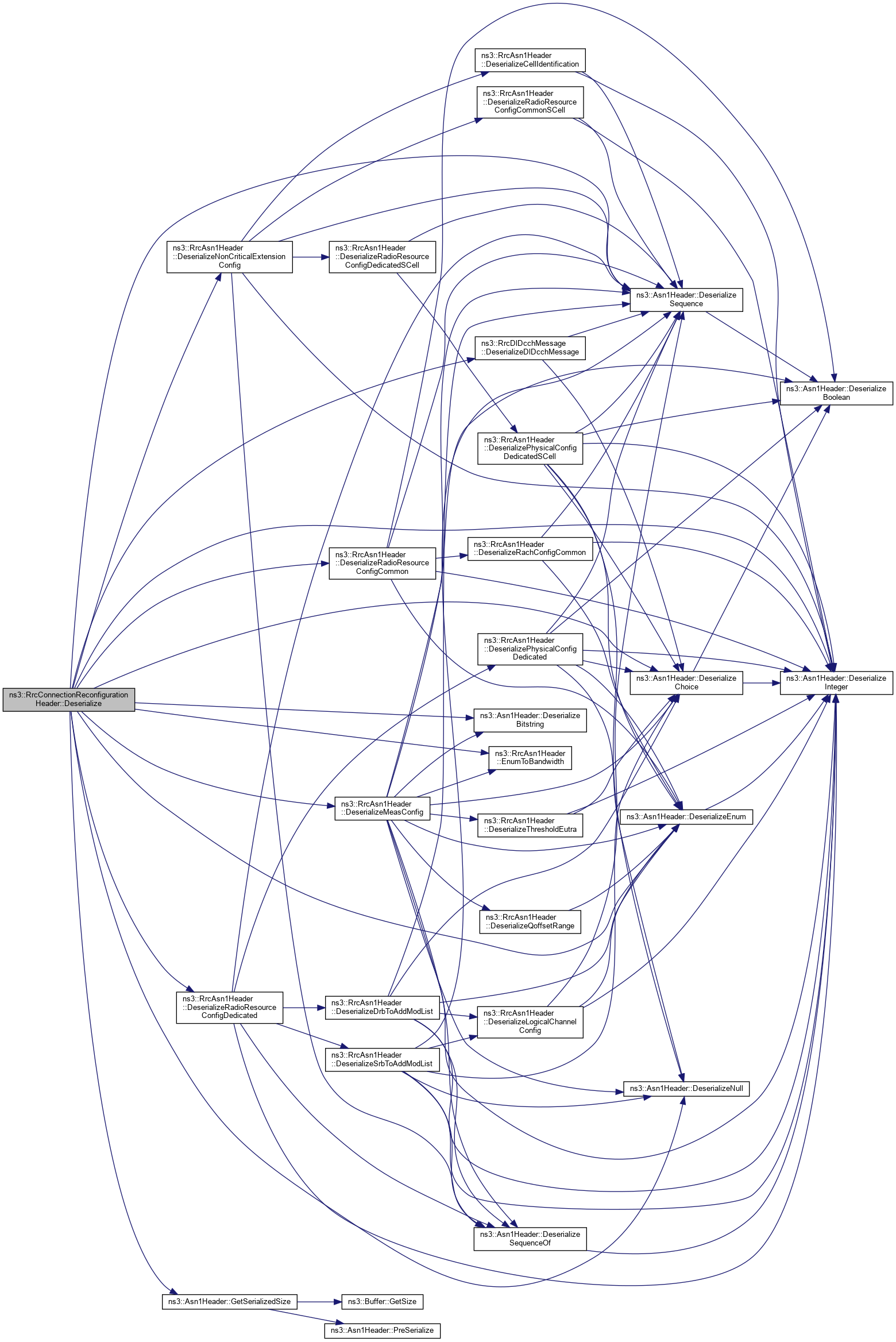

uint32_t Deserialize (Buffer::Iterator bIterator)

std::list< LteRrcSap::DrbToAddModGetDrbToAddModList () const
 Gets m_radioResourceConfigDedicated.drbToAddModList. More...

std::list< uint8_t > GetDrbToReleaseList () const
 Gets m_radioResourceConfigDedicated.drbToReleaseList. More...

bool GetHaveMeasConfig ()
 Getter for m_haveMeasConfig. More...

bool GetHaveMobilityControlInfo ()
 Getter for m_haveMobilityControlInfo. More...

bool GetHaveNonCriticalExtensionConfig ()
 Getter for m_haveNonCriticalExtension. More...

bool GetHaveRadioResourceConfigDedicated ()
 Getter for m_haveRadioResourceConfigDedicated. More...

LteRrcSap::MeasConfig GetMeasConfig ()
 Getter for m_measConfig. More...

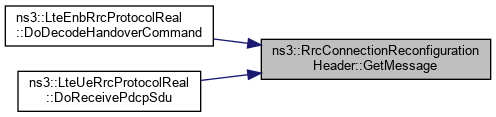

LteRrcSap::RrcConnectionReconfiguration GetMessage () const
 Returns a RrcConnectionReconfiguration IE from the values in the class attributes. More...

LteRrcSap::MobilityControlInfo GetMobilityControlInfo ()
 Getter for m_mobilityControlInfo. More...

LteRrcSap::NonCriticalExtensionConfiguration GetNonCriticalExtensionConfig ()
 Getter for m_nonCriticalExtension. More...

LteRrcSap::PhysicalConfigDedicated GetPhysicalConfigDedicated () const
 Gets m_radioResourceConfigDedicated.physicalConfigDedicated. More...

LteRrcSap::RadioResourceConfigDedicated GetRadioResourceConfigDedicated ()
 Getter for m_radioResourceConfigDedicated. More...

LteRrcSap::RadioResourceConfigDedicated GetRadioResourceConfigDedicated () const
 Getter for m_radioResourceConfigDedicated. More...

uint8_t GetRrcTransactionIdentifier () const
 Getter for m_rrcTransactionIdentifier. More...

std::list< LteRrcSap::SrbToAddModGetSrbToAddModList () const
 Gets m_radioResourceConfigDedicated.srbToAddModList. More...

bool HavePhysicalConfigDedicated () const
 Gets m_radioResourceConfigDedicated.havePhysicalConfigDedicated. More...

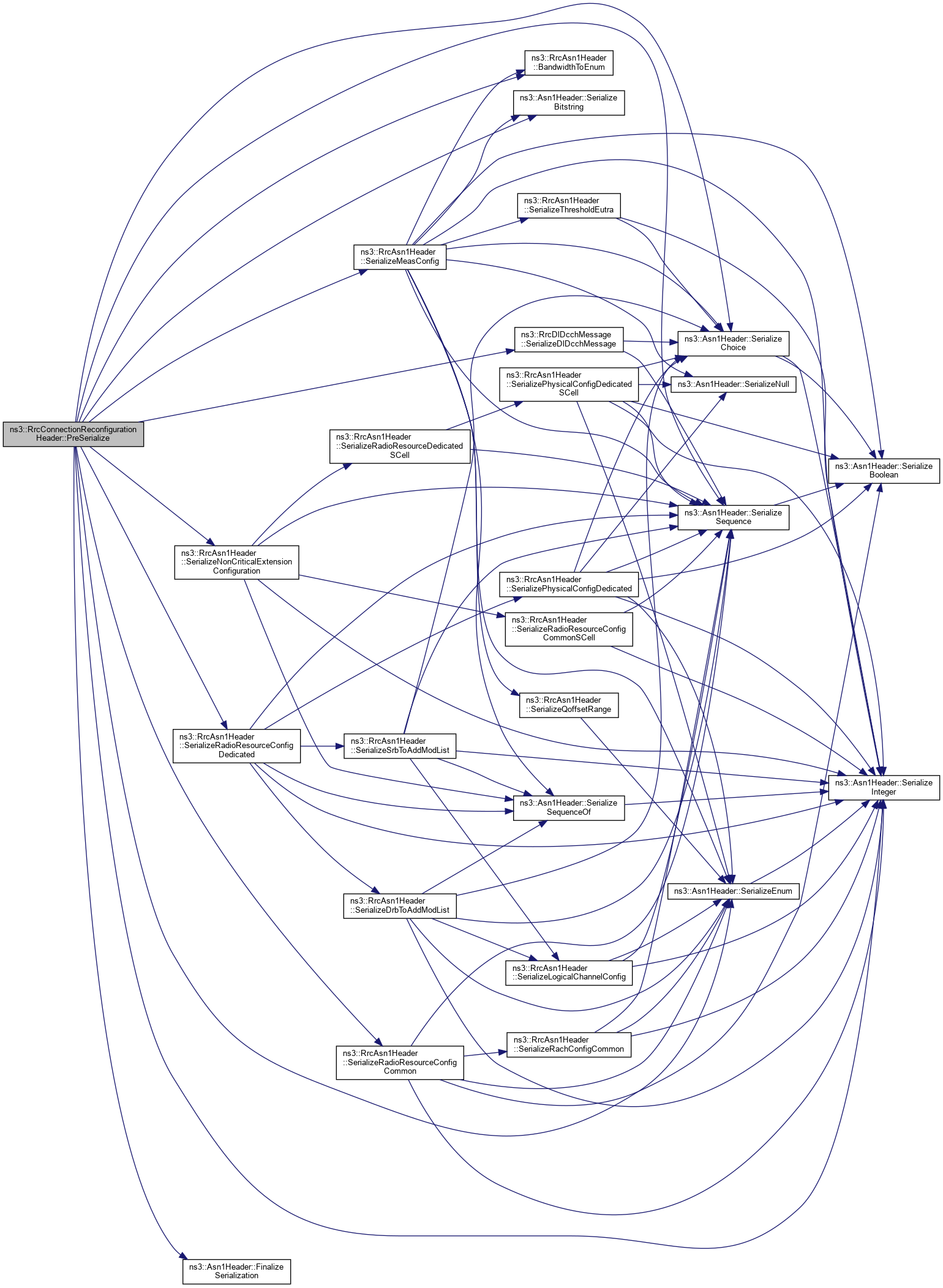

void PreSerialize () const
 This function serializes class attributes to m_serializationResult local Buffer. More...

void Print (std::ostream &os) const
 This function prints the object, for debugging purposes. More...

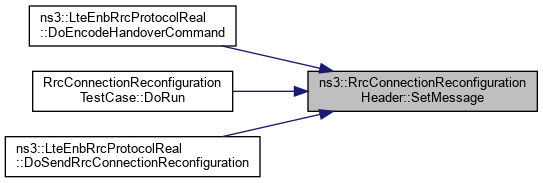

void SetMessage (LteRrcSap::RrcConnectionReconfiguration msg)
 Receives a RrcConnectionReconfiguration IE and stores the contents into the class attributes. More...

- Public Member Functions inherited from ns3::RrcDlDcchMessage
 RrcDlDcchMessage ()

 ~RrcDlDcchMessage ()

- Public Member Functions inherited from ns3::RrcAsn1Header
 RrcAsn1Header ()

int GetMessageType ()
 Get message type. More...

- Public Member Functions inherited from ns3::Asn1Header
 Asn1Header ()

virtual ~Asn1Header ()

uint32_t GetSerializedSize (void) const

void Serialize (Buffer::Iterator bIterator) const

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator. More...

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::Chunk
virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Private Attributes

bool m_haveMeasConfig
 have measure config? More...

bool m_haveMobilityControlInfo
 have mobility control info? More...

bool m_haveNonCriticalExtension
 Have non-critical extension. More...

bool m_haveRadioResourceConfigDedicated
 have radio resource config dedicated? More...

LteRrcSap::MeasConfig m_measConfig
 the measure config More...

LteRrcSap::MobilityControlInfo m_mobilityControlInfo
 the modility control info More...

LteRrcSap::NonCriticalExtensionConfiguration m_nonCriticalExtension
 the non-critical extension More...

LteRrcSap::RadioResourceConfigDedicated m_radioResourceConfigDedicated
 the radio resource config dedicated More...

uint8_t m_rrcTransactionIdentifier
 RRC transaction identifier. More...


Additional Inherited Members

- Static Public Member Functions inherited from ns3::Asn1Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...

- Protected Member Functions inherited from ns3::RrcDlDcchMessage
Buffer::Iterator DeserializeDlDcchMessage (Buffer::Iterator bIterator)
 Deserialize DL DCCH message function. More...

void SerializeDlDcchMessage (int msgType) const
 Serialize DL DCCH message function. More...

- Protected Member Functions inherited from ns3::RrcAsn1Header
int BandwidthToEnum (uint16_t bandwidth) const
 Convert from bandwidth (in RBs) to ENUMERATED value. More...

Buffer::Iterator DeserializeCellIdentification (LteRrcSap::CellIdentification *ci, Buffer::Iterator bIterator)
 Deserialize cell identification function. More...

Buffer::Iterator DeserializeDrbToAddModList (std::list< LteRrcSap::DrbToAddMod > *drbToAddModLis, Buffer::Iterator bIterator)
 Deserialize DRB to add mod list function. More...

Buffer::Iterator DeserializeLogicalChannelConfig (LteRrcSap::LogicalChannelConfig *logicalChannelConfig, Buffer::Iterator bIterator)
 Deserialize logical channel config function. More...

Buffer::Iterator DeserializeMeasConfig (LteRrcSap::MeasConfig *measConfig, Buffer::Iterator bIterator)
 Deserialize measure config function. More...

Buffer::Iterator DeserializeMeasResults (LteRrcSap::MeasResults *measResults, Buffer::Iterator bIterator)
 Deserialize measure results function. More...

Buffer::Iterator DeserializeNonCriticalExtensionConfig (LteRrcSap::NonCriticalExtensionConfiguration *nonCriticalExtension, Buffer::Iterator bIterator)
 Deserialize non critical extension config function. More...

Buffer::Iterator DeserializePhysicalConfigDedicated (LteRrcSap::PhysicalConfigDedicated *physicalConfigDedicated, Buffer::Iterator bIterator)
 Deserialize physical config dedicated function. More...

Buffer::Iterator DeserializePhysicalConfigDedicatedSCell (LteRrcSap::PhysicalConfigDedicatedSCell *pcdsc, Buffer::Iterator bIterator)
 Deserialize physical config dedicated SCell function. More...

Buffer::Iterator DeserializePlmnIdentity (uint32_t *plmnId, Buffer::Iterator bIterator)
 Deserialize PLMN identity function. More...

Buffer::Iterator DeserializeQoffsetRange (int8_t *qOffsetRange, Buffer::Iterator bIterator)
 Deserialize Qoffset range function. More...

Buffer::Iterator DeserializeRachConfigCommon (LteRrcSap::RachConfigCommon *rachConfigCommon, Buffer::Iterator bIterator)
 Deserialize RACH config common function. More...

Buffer::Iterator DeserializeRadioResourceConfigCommon (LteRrcSap::RadioResourceConfigCommon *radioResourceConfigCommon, Buffer::Iterator bIterator)
 Deserialize radio resource config common function. More...

Buffer::Iterator DeserializeRadioResourceConfigCommonSCell (LteRrcSap::RadioResourceConfigCommonSCell *rrccsc, Buffer::Iterator bIterator)
 Deserialize radio resource config common SCell function. More...

Buffer::Iterator DeserializeRadioResourceConfigCommonSib (LteRrcSap::RadioResourceConfigCommonSib *radioResourceConfigCommonSib, Buffer::Iterator bIterator)
 Deserialize radio resource config common SIB function. More...

Buffer::Iterator DeserializeRadioResourceConfigDedicated (LteRrcSap::RadioResourceConfigDedicated *radioResourceConfigDedicated, Buffer::Iterator bIterator)
 Deserialize radio resource config dedicated function. More...

Buffer::Iterator DeserializeRadioResourceConfigDedicatedSCell (LteRrcSap::RadioResourceConfigDedicatedSCell *rrcdsc, Buffer::Iterator bIterator)
 Deserialize radio resource config dedicated SCell function. More...

Buffer::Iterator DeserializeSrbToAddModList (std::list< LteRrcSap::SrbToAddMod > *srbToAddModList, Buffer::Iterator bIterator)
 Deserialize SRB to add mod list function. More...

Buffer::Iterator DeserializeSystemInformationBlockType1 (LteRrcSap::SystemInformationBlockType1 *systemInformationBlockType1, Buffer::Iterator bIterator)
 Deserialize system information block type 1 function. More...

Buffer::Iterator DeserializeSystemInformationBlockType2 (LteRrcSap::SystemInformationBlockType2 *systemInformationBlockType2, Buffer::Iterator bIterator)
 Deserialize system information block type 2 function. More...

Buffer::Iterator DeserializeThresholdEutra (LteRrcSap::ThresholdEutra *thresholdEutra, Buffer::Iterator bIterator)
 Deserialize threshold eutra function. More...

uint16_t EnumToBandwidth (int n) const
 Convert from ENUMERATED value to bandwidth (in RBs) More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

void Print (std::ostream &os, LteRrcSap::RadioResourceConfigDedicated radioResourceConfigDedicated) const
 This function prints RadioResourceConfigDedicated IE, for debugging purposes. More...

void SerializeDrbToAddModList (std::list< LteRrcSap::DrbToAddMod > drbToAddModList) const
 Serialize DRB to add mod list function. More...

void SerializeLogicalChannelConfig (LteRrcSap::LogicalChannelConfig logicalChannelConfig) const
 Serialize logicala channel config function. More...

void SerializeMeasConfig (LteRrcSap::MeasConfig measConfig) const
 Serialize measure config function. More...

void SerializeMeasResults (LteRrcSap::MeasResults measResults) const
 Serialize measure results function. More...

void SerializeNonCriticalExtensionConfiguration (LteRrcSap::NonCriticalExtensionConfiguration nonCriticalExtensionConfiguration) const
 Serialize non critical extension config function. More...

void SerializePhysicalConfigDedicated (LteRrcSap::PhysicalConfigDedicated physicalConfigDedicated) const
 Serialize physical config dedicated function. More...

void SerializePhysicalConfigDedicatedSCell (LteRrcSap::PhysicalConfigDedicatedSCell pcdsc) const
 Serialize physical config dedicated function. More...

void SerializePlmnIdentity (uint32_t plmnId) const
 Serialize PLMN identity function. More...

void SerializeQoffsetRange (int8_t qOffsetRange) const
 Serialize Q offset range function. More...

void SerializeRachConfigCommon (LteRrcSap::RachConfigCommon rachConfigCommon) const
 Serialize RACH config common function. More...

void SerializeRadioResourceConfigCommon (LteRrcSap::RadioResourceConfigCommon radioResourceConfigCommon) const
 Serialize system information block type 2 function. More...

void SerializeRadioResourceConfigCommonSCell (LteRrcSap::RadioResourceConfigCommonSCell rrccsc) const
 Serialize radio resource config common SCell function. More...

void SerializeRadioResourceConfigCommonSib (LteRrcSap::RadioResourceConfigCommonSib radioResourceConfigCommonSib) const
 Serialize radio resource config common SIB function. More...

void SerializeRadioResourceConfigDedicated (LteRrcSap::RadioResourceConfigDedicated radioResourceConfigDedicated) const
 Serialize radio resource config function. More...

void SerializeRadioResourceDedicatedSCell (LteRrcSap::RadioResourceConfigDedicatedSCell rrcdsc) const
 Serialize radio resource dedicated SCell function. More...

void SerializeSrbToAddModList (std::list< LteRrcSap::SrbToAddMod > srbToAddModList) const
 Serialize SRB to add mod list function. More...

void SerializeSystemInformationBlockType1 (LteRrcSap::SystemInformationBlockType1 systemInformationBlockType1) const
 Serialize system information block type 1 function. More...

void SerializeSystemInformationBlockType2 (LteRrcSap::SystemInformationBlockType2 systemInformationBlockType2) const
 Serialize system information block type 2 function. More...

void SerializeThresholdEutra (LteRrcSap::ThresholdEutra thresholdEutra) const
 Serialize threshold eutra function. More...

- Protected Member Functions inherited from ns3::Asn1Header
Buffer::Iterator DeserializeBitset (std::bitset< 8 > *data, Buffer::Iterator bIterator)
 Deserialize a bitset. More...

template<int N>
Buffer::Iterator DeserializeBitset (std::bitset< N > *data, Buffer::Iterator bIterator)
 Deserialize a bitset. More...

Buffer::Iterator DeserializeBitstring (std::bitset< 1 > *bitstring, Buffer::Iterator bIterator)
 Deserialize a bitstring. More...

Buffer::Iterator DeserializeBitstring (std::bitset< 10 > *bitstring, Buffer::Iterator bIterator)
 Deserialize a bitstring. More...

Buffer::Iterator DeserializeBitstring (std::bitset< 16 > *bitstring, Buffer::Iterator bIterator)
 Deserialize a bitstring. More...

Buffer::Iterator DeserializeBitstring (std::bitset< 2 > *bitstring, Buffer::Iterator bIterator)
 Deserialize a bitstring. More...

Buffer::Iterator DeserializeBitstring (std::bitset< 27 > *bitstring, Buffer::Iterator bIterator)
 Deserialize a bitstring. More...

Buffer::Iterator DeserializeBitstring (std::bitset< 28 > *bitstring, Buffer::Iterator bIterator)
 Deserialize a bitstring. More...

Buffer::Iterator DeserializeBitstring (std::bitset< 32 > *bitstring, Buffer::Iterator bIterator)
 Deserialize a bitstring. More...

Buffer::Iterator DeserializeBitstring (std::bitset< 8 > *bitstring, Buffer::Iterator bIterator)
 Deserialize a bitstring. More...

template<int N>
Buffer::Iterator DeserializeBitstring (std::bitset< N > *bitstring, Buffer::Iterator bIterator)
 Deserialize a bitstring. More...

Buffer::Iterator DeserializeBoolean (bool *value, Buffer::Iterator bIterator)
 Deserialize a boolean. More...

Buffer::Iterator DeserializeChoice (int numOptions, bool isExtensionMarkerPresent, int *selectedOption, Buffer::Iterator bIterator)
 Deserialize a Choice (set of options) More...

Buffer::Iterator DeserializeEnum (int numElems, int *selectedElem, Buffer::Iterator bIterator)
 Deserialize an Enum. More...

Buffer::Iterator DeserializeInteger (int *n, int nmin, int nmax, Buffer::Iterator bIterator)
 Deserialize an integer. More...

Buffer::Iterator DeserializeNull (Buffer::Iterator bIterator)
 Deserialize nothing (null op) More...

Buffer::Iterator DeserializeSequence (std::bitset< 0 > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
 Deserialize a sequence. More...

Buffer::Iterator DeserializeSequence (std::bitset< 1 > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
 Deserialize a sequence. More...

Buffer::Iterator DeserializeSequence (std::bitset< 10 > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
 Deserialize a sequence. More...

Buffer::Iterator DeserializeSequence (std::bitset< 11 > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
 Deserialize a sequence. More...

Buffer::Iterator DeserializeSequence (std::bitset< 2 > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
 Deserialize a sequence. More...

Buffer::Iterator DeserializeSequence (std::bitset< 3 > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
 Deserialize a sequence. More...

Buffer::Iterator DeserializeSequence (std::bitset< 4 > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
 Deserialize a sequence. More...

Buffer::Iterator DeserializeSequence (std::bitset< 5 > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
 Deserialize a sequence. More...

Buffer::Iterator DeserializeSequence (std::bitset< 6 > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
 Deserialize a sequence. More...

Buffer::Iterator DeserializeSequence (std::bitset< 7 > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
 Deserialize a sequence. More...

Buffer::Iterator DeserializeSequence (std::bitset< 9 > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
 Deserialize a sequence. More...

template<int N>
Buffer::Iterator DeserializeSequence (std::bitset< N > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
 Deserialize a sequence. More...

Buffer::Iterator DeserializeSequenceOf (int *numElems, int nMax, int nMin, Buffer::Iterator bIterator)
 Deserialize a Sequence. More...

void FinalizeSerialization () const
 Finalizes an in progress serialization. More...

template<int N>
void SerializeBitset (std::bitset< N > data) const
 Serialize a bitset. More...

void SerializeBitstring (std::bitset< 1 > bitstring) const
 Serialize a bitstring. More...

void SerializeBitstring (std::bitset< 10 > bitstring) const
 Serialize a bitstring. More...

void SerializeBitstring (std::bitset< 16 > bitstring) const
 Serialize a bitstring. More...

void SerializeBitstring (std::bitset< 2 > bitstring) const
 Serialize a bitstring. More...

void SerializeBitstring (std::bitset< 27 > bitstring) const
 Serialize a bitstring. More...

void SerializeBitstring (std::bitset< 28 > bitstring) const
 Serialize a bitstring. More...

void SerializeBitstring (std::bitset< 32 > bitstring) const
 Serialize a bitstring. More...

void SerializeBitstring (std::bitset< 8 > bitstring) const
 Serialize a bitstring. More...

template<int N>
void SerializeBitstring (std::bitset< N > bitstring) const
 Serialize a bitstring. More...

void SerializeBoolean (bool value) const
 Serialize a bool. More...

void SerializeChoice (int numOptions, int selectedOption, bool isExtensionMarkerPresent) const
 Serialize a Choice (set of options) More...

void SerializeEnum (int numElems, int selectedElem) const
 Serialize an Enum. More...

void SerializeInteger (int n, int nmin, int nmax) const
 Serialize an Integer. More...

void SerializeNull () const
 Serialize nothing (null op) More...

void SerializeSequence (std::bitset< 0 > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
 Serialize a sequence. More...

void SerializeSequence (std::bitset< 1 > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
 Serialize a sequence. More...

void SerializeSequence (std::bitset< 10 > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
 Serialize a sequence. More...

void SerializeSequence (std::bitset< 11 > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
 Serialize a sequence. More...

void SerializeSequence (std::bitset< 2 > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
 Serialize a sequence. More...

void SerializeSequence (std::bitset< 3 > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
 Serialize a sequence. More...

void SerializeSequence (std::bitset< 4 > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
 Serialize a sequence. More...

void SerializeSequence (std::bitset< 5 > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
 Serialize a sequence. More...

void SerializeSequence (std::bitset< 6 > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
 Serialize a sequence. More...

void SerializeSequence (std::bitset< 7 > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
 Serialize a sequence. More...

void SerializeSequence (std::bitset< 9 > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
 Serialize a sequence. More...

template<int N>
void SerializeSequence (std::bitset< N > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
 Serialize a sequence. More...

void SerializeSequenceOf (int numElems, int nMax, int nMin) const
 Serialize a Sequence. More...

void WriteOctet (uint8_t octet) const
 Function to write in m_serializationResult, after resizing its size. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...

- Static Protected Member Functions inherited from ns3::RrcAsn1Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Protected Attributes inherited from ns3::RrcAsn1Header
int m_messageType
 Stores RRC message type, according to 3GPP TS 36.331. More...

- Protected Attributes inherited from ns3::Asn1Header
bool m_isDataSerialized
 true if data is serialized More...

uint8_t m_numSerializationPendingBits
 number of pending bits More...

uint8_t m_serializationPendingBits
 pending bits More...

Buffer m_serializationResult
 serialization result More...


Detailed Description

This class manages the serialization/deserialization of RrcConnectionReconfiguration IE.

Definition at line 709 of file lte-rrc-header.h.

Constructor & Destructor Documentation

◆ RrcConnectionReconfigurationHeader()

ns3::RrcConnectionReconfigurationHeader::RrcConnectionReconfigurationHeader ( )

Definition at line 5125 of file lte-rrc-header.cc.

◆ ~RrcConnectionReconfigurationHeader()

ns3::RrcConnectionReconfigurationHeader::~RrcConnectionReconfigurationHeader ( )

Definition at line 5129 of file lte-rrc-header.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::RrcConnectionReconfigurationHeader::Deserialize ( Buffer::Iterator  start)
virtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Reimplemented from ns3::RrcDlDcchMessage.

Definition at line 5254 of file lte-rrc-header.cc.

References ns3::LteRrcSap::MobilityControlInfo::carrierBandwidth, ns3::LteRrcSap::MobilityControlInfo::carrierFreq, ns3::Asn1Header::DeserializeBitstring(), ns3::Asn1Header::DeserializeChoice(), ns3::RrcDlDcchMessage::DeserializeDlDcchMessage(), ns3::Asn1Header::DeserializeEnum(), ns3::Asn1Header::DeserializeInteger(), ns3::RrcAsn1Header::DeserializeMeasConfig(), ns3::RrcAsn1Header::DeserializeNonCriticalExtensionConfig(), ns3::Asn1Header::DeserializeNull(), ns3::RrcAsn1Header::DeserializeRadioResourceConfigCommon(), ns3::RrcAsn1Header::DeserializeRadioResourceConfigDedicated(), ns3::Asn1Header::DeserializeSequence(), ns3::LteRrcSap::CarrierBandwidthEutra::dlBandwidth, ns3::LteRrcSap::CarrierFreqEutra::dlCarrierFreq, ns3::RrcAsn1Header::EnumToBandwidth(), ns3::Asn1Header::GetSerializedSize(), ns3::LteRrcSap::MobilityControlInfo::haveCarrierBandwidth, ns3::LteRrcSap::MobilityControlInfo::haveCarrierFreq, ns3::LteRrcSap::MobilityControlInfo::haveRachConfigDedicated, m_haveMeasConfig, m_haveMobilityControlInfo, m_haveNonCriticalExtension, m_haveRadioResourceConfigDedicated, m_measConfig, m_mobilityControlInfo, m_nonCriticalExtension, m_radioResourceConfigDedicated, m_rrcTransactionIdentifier, MAX_EARFCN, ns3::LteRrcSap::MobilityControlInfo::newUeIdentity, ns3::LteRrcSap::MobilityControlInfo::rachConfigDedicated, ns3::LteRrcSap::MobilityControlInfo::radioResourceConfigCommon, ns3::LteRrcSap::RachConfigDedicated::raPrachMaskIndex, ns3::LteRrcSap::RachConfigDedicated::raPreambleIndex, ns3::LteRrcSap::MobilityControlInfo::targetPhysCellId, ns3::LteRrcSap::CarrierBandwidthEutra::ulBandwidth, and ns3::LteRrcSap::CarrierFreqEutra::ulCarrierFreq.

+ Here is the call graph for this function:

◆ GetDrbToAddModList()

std::list< LteRrcSap::DrbToAddMod > ns3::RrcConnectionReconfigurationHeader::GetDrbToAddModList ( ) const

Gets m_radioResourceConfigDedicated.drbToAddModList.

Returns
m_radioResourceConfigDedicated.drbToAddModList

Definition at line 5740 of file lte-rrc-header.cc.

References ns3::LteRrcSap::RadioResourceConfigDedicated::drbToAddModList, and m_radioResourceConfigDedicated.

◆ GetDrbToReleaseList()

std::list< uint8_t > ns3::RrcConnectionReconfigurationHeader::GetDrbToReleaseList ( ) const

Gets m_radioResourceConfigDedicated.drbToReleaseList.

Returns
m_radioResourceConfigDedicated.drbToReleaseList

Definition at line 5746 of file lte-rrc-header.cc.

References ns3::LteRrcSap::RadioResourceConfigDedicated::drbToReleaseList, and m_radioResourceConfigDedicated.

◆ GetHaveMeasConfig()

bool ns3::RrcConnectionReconfigurationHeader::GetHaveMeasConfig ( )

Getter for m_haveMeasConfig.

Returns
m_haveMeasConfig

Definition at line 5680 of file lte-rrc-header.cc.

References m_haveMeasConfig.

Referenced by RrcConnectionReconfigurationTestCase::DoRun().

+ Here is the caller graph for this function:

◆ GetHaveMobilityControlInfo()

bool ns3::RrcConnectionReconfigurationHeader::GetHaveMobilityControlInfo ( )

Getter for m_haveMobilityControlInfo.

Returns
m_haveMobilityControlInfo

Definition at line 5692 of file lte-rrc-header.cc.

References m_haveMobilityControlInfo.

Referenced by RrcConnectionReconfigurationTestCase::DoRun().

+ Here is the caller graph for this function:

◆ GetHaveNonCriticalExtensionConfig()

bool ns3::RrcConnectionReconfigurationHeader::GetHaveNonCriticalExtensionConfig ( )

Getter for m_haveNonCriticalExtension.

Returns
m_haveNonCriticalExtension

Definition at line 5716 of file lte-rrc-header.cc.

References m_haveNonCriticalExtension.

◆ GetHaveRadioResourceConfigDedicated()

bool ns3::RrcConnectionReconfigurationHeader::GetHaveRadioResourceConfigDedicated ( )

Getter for m_haveRadioResourceConfigDedicated.

Returns
m_haveRadioResourceConfigDedicated

Definition at line 5704 of file lte-rrc-header.cc.

References m_haveRadioResourceConfigDedicated.

Referenced by RrcConnectionReconfigurationTestCase::DoRun().

+ Here is the caller graph for this function:

◆ GetMeasConfig()

LteRrcSap::MeasConfig ns3::RrcConnectionReconfigurationHeader::GetMeasConfig ( )

Getter for m_measConfig.

Returns
m_measConfig

Definition at line 5686 of file lte-rrc-header.cc.

References m_measConfig.

◆ GetMessage()

◆ GetMobilityControlInfo()

LteRrcSap::MobilityControlInfo ns3::RrcConnectionReconfigurationHeader::GetMobilityControlInfo ( )

Getter for m_mobilityControlInfo.

Returns
m_mobilityControlInfo

Definition at line 5698 of file lte-rrc-header.cc.

References m_mobilityControlInfo.

Referenced by RrcConnectionReconfigurationTestCase::DoRun().

+ Here is the caller graph for this function:

◆ GetNonCriticalExtensionConfig()

LteRrcSap::NonCriticalExtensionConfiguration ns3::RrcConnectionReconfigurationHeader::GetNonCriticalExtensionConfig ( )

Getter for m_nonCriticalExtension.

Returns
m_nonCriticalExtension

Definition at line 5722 of file lte-rrc-header.cc.

References m_nonCriticalExtension.

◆ GetPhysicalConfigDedicated()

LteRrcSap::PhysicalConfigDedicated ns3::RrcConnectionReconfigurationHeader::GetPhysicalConfigDedicated ( ) const

Gets m_radioResourceConfigDedicated.physicalConfigDedicated.

Returns
m_radioResourceConfigDedicated.physicalConfigDedicated

Definition at line 5752 of file lte-rrc-header.cc.

References m_radioResourceConfigDedicated, and ns3::LteRrcSap::RadioResourceConfigDedicated::physicalConfigDedicated.

◆ GetRadioResourceConfigDedicated() [1/2]

LteRrcSap::RadioResourceConfigDedicated ns3::RrcConnectionReconfigurationHeader::GetRadioResourceConfigDedicated ( )

Getter for m_radioResourceConfigDedicated.

Returns
m_radioResourceConfigDedicated

Definition at line 5710 of file lte-rrc-header.cc.

References m_radioResourceConfigDedicated.

Referenced by RrcConnectionReconfigurationTestCase::DoRun().

+ Here is the caller graph for this function:

◆ GetRadioResourceConfigDedicated() [2/2]

LteRrcSap::RadioResourceConfigDedicated ns3::RrcConnectionReconfigurationHeader::GetRadioResourceConfigDedicated ( ) const

Getter for m_radioResourceConfigDedicated.

Returns
m_radioResourceConfigDedicated

◆ GetRrcTransactionIdentifier()

uint8_t ns3::RrcConnectionReconfigurationHeader::GetRrcTransactionIdentifier ( ) const

Getter for m_rrcTransactionIdentifier.

Returns
m_rrcTransactionIdentifier

Definition at line 5674 of file lte-rrc-header.cc.

References m_rrcTransactionIdentifier.

Referenced by RrcConnectionReconfigurationTestCase::DoRun().

+ Here is the caller graph for this function:

◆ GetSrbToAddModList()

std::list< LteRrcSap::SrbToAddMod > ns3::RrcConnectionReconfigurationHeader::GetSrbToAddModList ( ) const

Gets m_radioResourceConfigDedicated.srbToAddModList.

Returns
m_radioResourceConfigDedicated.srbToAddModList

Definition at line 5734 of file lte-rrc-header.cc.

References m_radioResourceConfigDedicated, and ns3::LteRrcSap::RadioResourceConfigDedicated::srbToAddModList.

◆ HavePhysicalConfigDedicated()

bool ns3::RrcConnectionReconfigurationHeader::HavePhysicalConfigDedicated ( ) const

Gets m_radioResourceConfigDedicated.havePhysicalConfigDedicated.

Returns
m_radioResourceConfigDedicated.havePhysicalConfigDedicated

Definition at line 5728 of file lte-rrc-header.cc.

References ns3::LteRrcSap::RadioResourceConfigDedicated::havePhysicalConfigDedicated, and m_radioResourceConfigDedicated.

◆ PreSerialize()

void ns3::RrcConnectionReconfigurationHeader::PreSerialize ( ) const
virtual

This function serializes class attributes to m_serializationResult local Buffer.

As ASN1 encoding produces a bitstream that does not have a fixed length, this function is needed to store the result, so its length can be retrieved with Header::GetSerializedSize() function. This method is pure virtual in this class (needs to be implemented in child classes) as the meaningful information elements are in the subclasses.

Reimplemented from ns3::RrcDlDcchMessage.

Definition at line 5134 of file lte-rrc-header.cc.

References ns3::RrcAsn1Header::BandwidthToEnum(), ns3::LteRrcSap::MobilityControlInfo::carrierBandwidth, ns3::LteRrcSap::MobilityControlInfo::carrierFreq, ns3::LteRrcSap::CarrierBandwidthEutra::dlBandwidth, ns3::LteRrcSap::CarrierFreqEutra::dlCarrierFreq, ns3::Asn1Header::FinalizeSerialization(), ns3::LteRrcSap::MobilityControlInfo::haveCarrierBandwidth, ns3::LteRrcSap::MobilityControlInfo::haveCarrierFreq, ns3::LteRrcSap::MobilityControlInfo::haveRachConfigDedicated, m_haveMeasConfig, m_haveMobilityControlInfo, m_haveNonCriticalExtension, m_haveRadioResourceConfigDedicated, m_measConfig, m_mobilityControlInfo, m_nonCriticalExtension, m_radioResourceConfigDedicated, m_rrcTransactionIdentifier, ns3::Asn1Header::m_serializationResult, MAX_EARFCN, ns3::LteRrcSap::MobilityControlInfo::newUeIdentity, ns3::LteRrcSap::MobilityControlInfo::rachConfigDedicated, ns3::LteRrcSap::MobilityControlInfo::radioResourceConfigCommon, ns3::LteRrcSap::RachConfigDedicated::raPrachMaskIndex, ns3::LteRrcSap::RachConfigDedicated::raPreambleIndex, ns3::Asn1Header::SerializeBitstring(), ns3::Asn1Header::SerializeChoice(), ns3::RrcDlDcchMessage::SerializeDlDcchMessage(), ns3::Asn1Header::SerializeEnum(), ns3::Asn1Header::SerializeInteger(), ns3::RrcAsn1Header::SerializeMeasConfig(), ns3::RrcAsn1Header::SerializeNonCriticalExtensionConfiguration(), ns3::RrcAsn1Header::SerializeRadioResourceConfigCommon(), ns3::RrcAsn1Header::SerializeRadioResourceConfigDedicated(), ns3::Asn1Header::SerializeSequence(), ns3::LteRrcSap::MobilityControlInfo::targetPhysCellId, ns3::LteRrcSap::CarrierBandwidthEutra::ulBandwidth, and ns3::LteRrcSap::CarrierFreqEutra::ulCarrierFreq.

+ Here is the call graph for this function:

◆ Print()

void ns3::RrcConnectionReconfigurationHeader::Print ( std::ostream &  os) const
virtual

This function prints the object, for debugging purposes.

Parameters
osThe output stream to use (i.e. std::cout)

Reimplemented from ns3::RrcDlDcchMessage.

Definition at line 5403 of file lte-rrc-header.cc.

References ns3::LteRrcSap::MobilityControlInfo::carrierBandwidth, ns3::LteRrcSap::MobilityControlInfo::carrierFreq, ns3::LteRrcSap::CarrierBandwidthEutra::dlBandwidth, ns3::LteRrcSap::CarrierFreqEutra::dlCarrierFreq, ns3::LteRrcSap::ReportConfigEutra::EVENT, ns3::LteRrcSap::ReportConfigEutra::EVENT_A3, ns3::LteRrcSap::ReportConfigEutra::EVENT_A5, ns3::LteRrcSap::QuantityConfig::filterCoefficientRSRP, ns3::LteRrcSap::QuantityConfig::filterCoefficientRSRQ, ns3::LteRrcSap::MeasGapConfig::gapOffsetChoice, ns3::LteRrcSap::MeasGapConfig::gapOffsetValue, ns3::LteRrcSap::MobilityControlInfo::haveCarrierBandwidth, ns3::LteRrcSap::MobilityControlInfo::haveCarrierFreq, ns3::LteRrcSap::MeasConfig::haveMeasGapConfig, ns3::LteRrcSap::MeasConfig::haveQuantityConfig, ns3::LteRrcSap::MobilityControlInfo::haveRachConfigDedicated, ns3::LteRrcSap::MeasConfig::haveSmeasure, ns3::LteRrcSap::MeasConfig::haveSpeedStatePars, m_haveMeasConfig, m_haveMobilityControlInfo, m_haveRadioResourceConfigDedicated, m_measConfig, m_mobilityControlInfo, m_radioResourceConfigDedicated, m_rrcTransactionIdentifier, ns3::LteRrcSap::MeasConfig::measGapConfig, ns3::LteRrcSap::MeasConfig::measIdToAddModList, ns3::LteRrcSap::MeasConfig::measIdToRemoveList, ns3::LteRrcSap::MeasConfig::measObjectToAddModList, ns3::LteRrcSap::MeasConfig::measObjectToRemoveList, ns3::LteRrcSap::SpeedStatePars::mobilityStateParameters, ns3::LteRrcSap::MobilityStateParameters::nCellChangeHigh, ns3::LteRrcSap::MobilityStateParameters::nCellChangeMedium, ns3::LteRrcSap::MobilityControlInfo::newUeIdentity, ns3::RrcAsn1Header::Print(), ns3::LteRrcSap::MeasConfig::quantityConfig, ns3::LteRrcSap::MobilityControlInfo::rachConfigDedicated, ns3::LteRrcSap::RachConfigDedicated::raPrachMaskIndex, ns3::LteRrcSap::RachConfigDedicated::raPreambleIndex, ns3::LteRrcSap::MeasConfig::reportConfigToAddModList, ns3::LteRrcSap::MeasConfig::reportConfigToRemoveList, ns3::LteRrcSap::SpeedStateScaleFactors::sfHigh, ns3::LteRrcSap::SpeedStateScaleFactors::sfMedium, ns3::LteRrcSap::MeasConfig::sMeasure, ns3::LteRrcSap::MeasConfig::speedStatePars, ns3::LteRrcSap::MobilityControlInfo::targetPhysCellId, ns3::LteRrcSap::MobilityStateParameters::tEvaluation, ns3::LteRrcSap::MobilityStateParameters::tHystNormal, ns3::LteRrcSap::SpeedStatePars::timeToTriggerSf, ns3::LteRrcSap::MeasGapConfig::type, ns3::LteRrcSap::SpeedStatePars::type, ns3::LteRrcSap::CarrierBandwidthEutra::ulBandwidth, and ns3::LteRrcSap::CarrierFreqEutra::ulCarrierFreq.

+ Here is the call graph for this function:

◆ SetMessage()

Member Data Documentation

◆ m_haveMeasConfig

bool ns3::RrcConnectionReconfigurationHeader::m_haveMeasConfig
private

have measure config?

Definition at line 824 of file lte-rrc-header.h.

Referenced by Deserialize(), GetHaveMeasConfig(), GetMessage(), PreSerialize(), Print(), and SetMessage().

◆ m_haveMobilityControlInfo

bool ns3::RrcConnectionReconfigurationHeader::m_haveMobilityControlInfo
private

have mobility control info?

Definition at line 826 of file lte-rrc-header.h.

Referenced by Deserialize(), GetHaveMobilityControlInfo(), GetMessage(), PreSerialize(), Print(), and SetMessage().

◆ m_haveNonCriticalExtension

bool ns3::RrcConnectionReconfigurationHeader::m_haveNonCriticalExtension
private

Have non-critical extension.

Definition at line 830 of file lte-rrc-header.h.

Referenced by Deserialize(), GetHaveNonCriticalExtensionConfig(), GetMessage(), PreSerialize(), and SetMessage().

◆ m_haveRadioResourceConfigDedicated

bool ns3::RrcConnectionReconfigurationHeader::m_haveRadioResourceConfigDedicated
private

have radio resource config dedicated?

Definition at line 828 of file lte-rrc-header.h.

Referenced by Deserialize(), GetHaveRadioResourceConfigDedicated(), GetMessage(), PreSerialize(), Print(), and SetMessage().

◆ m_measConfig

LteRrcSap::MeasConfig ns3::RrcConnectionReconfigurationHeader::m_measConfig
private

the measure config

Definition at line 825 of file lte-rrc-header.h.

Referenced by Deserialize(), GetMeasConfig(), GetMessage(), PreSerialize(), Print(), and SetMessage().

◆ m_mobilityControlInfo

LteRrcSap::MobilityControlInfo ns3::RrcConnectionReconfigurationHeader::m_mobilityControlInfo
private

the modility control info

Definition at line 827 of file lte-rrc-header.h.

Referenced by Deserialize(), GetMessage(), GetMobilityControlInfo(), PreSerialize(), Print(), and SetMessage().

◆ m_nonCriticalExtension

LteRrcSap::NonCriticalExtensionConfiguration ns3::RrcConnectionReconfigurationHeader::m_nonCriticalExtension
private

the non-critical extension

Definition at line 831 of file lte-rrc-header.h.

Referenced by Deserialize(), GetMessage(), GetNonCriticalExtensionConfig(), PreSerialize(), and SetMessage().

◆ m_radioResourceConfigDedicated

LteRrcSap::RadioResourceConfigDedicated ns3::RrcConnectionReconfigurationHeader::m_radioResourceConfigDedicated
private

◆ m_rrcTransactionIdentifier

uint8_t ns3::RrcConnectionReconfigurationHeader::m_rrcTransactionIdentifier
private

RRC transaction identifier.

Definition at line 823 of file lte-rrc-header.h.

Referenced by Deserialize(), GetMessage(), GetRrcTransactionIdentifier(), PreSerialize(), Print(), and SetMessage().


The documentation for this class was generated from the following files:
