RipNg Routing Table Entry (RTE) - see RFC 2080 More...

#include "ripng-header.h"

Inheritance diagram for ns3::RipNgRte:

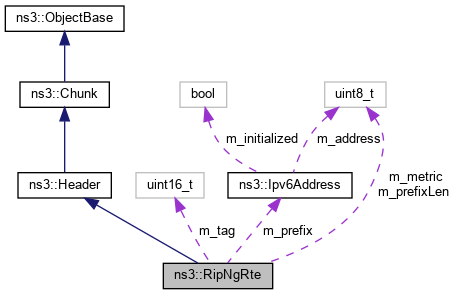

Collaboration diagram for ns3::RipNgRte:

Public Member Functions
	RipNgRte (void)

virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet. More...

virtual TypeId	GetInstanceTypeId (void) const
	Return the instance type identifier. More...

Ipv6Address	GetPrefix (void) const
	Get the prefix. More...

uint8_t	GetPrefixLen (void) const
	Get the prefix length. More...

uint8_t	GetRouteMetric (void) const
	Get the route metric. More...

uint16_t	GetRouteTag (void) const
	Get the route tag. More...

virtual uint32_t	GetSerializedSize (void) const
	Get the serialized size of the packet. More...

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet. More...

void	SetPrefix (Ipv6Address prefix)
	Set the prefix. More...

void	SetPrefixLen (uint8_t prefixLen)
	Set the prefix length. More...

void	SetRouteMetric (uint8_t routeMetric)
	Set the route metric. More...

void	SetRouteTag (uint16_t routeTag)
	Set the route tag. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint8_t	m_metric
	route metric More...

Ipv6Address	m_prefix
	prefix More...

uint8_t	m_prefixLen
	prefix length More...

uint16_t	m_tag
	route tag More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

RipNg Routing Table Entry (RTE) - see RFC 2080

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 32 bytes (on a 64-bit architecture).

Definition at line 38 of file ripng-header.h.

Constructor & Destructor Documentation

◆ RipNgRte()

ns3::RipNgRte::RipNgRte ( void )

Definition at line 31 of file ripng-header.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::RipNgRte::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the packet.

Parameters

start Buffer iterator

Returns: size of the packet

Implements ns3::Header.

Definition at line 72 of file ripng-header.cc.

References GetSerializedSize(), m_metric, m_prefix, m_prefixLen, m_tag, ns3::Buffer::Iterator::Read(), ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadU8(), and ns3::Ipv6Address::Set().

Referenced by ns3::RipNgHeader::Deserialize().

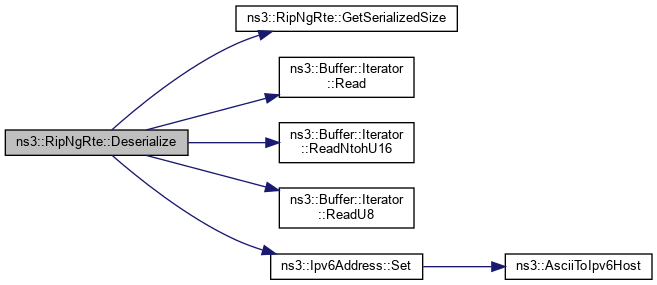

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::RipNgRte::GetInstanceTypeId ( void ) const

virtual

Return the instance type identifier.

Returns: instance type ID

Implements ns3::ObjectBase.

Definition at line 45 of file ripng-header.cc.

References GetTypeId().

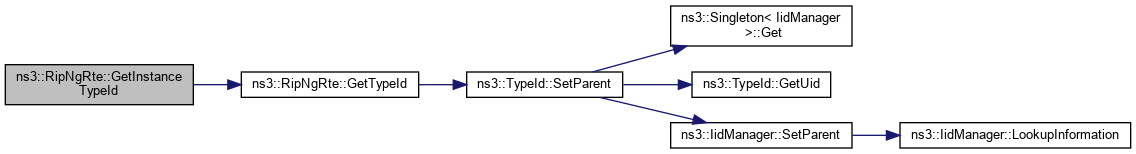

Here is the call graph for this function:

◆ GetPrefix()

Ipv6Address ns3::RipNgRte::GetPrefix ( void ) const

Get the prefix.

Returns: the prefix

Definition at line 90 of file ripng-header.cc.

References m_prefix.

◆ GetPrefixLen()

uint8_t ns3::RipNgRte::GetPrefixLen ( void ) const

Get the prefix length.

Returns: the prefix length

Definition at line 100 of file ripng-header.cc.

References m_prefixLen.

◆ GetRouteMetric()

uint8_t ns3::RipNgRte::GetRouteMetric ( void ) const

Get the route metric.

Returns: the route metric

Definition at line 120 of file ripng-header.cc.

References m_metric.

◆ GetRouteTag()

uint16_t ns3::RipNgRte::GetRouteTag ( void ) const

Get the route tag.

Returns: the route tag

Definition at line 110 of file ripng-header.cc.

References m_tag.

◆ GetSerializedSize()

uint32_t ns3::RipNgRte::GetSerializedSize ( void ) const

virtual

Get the serialized size of the packet.

Returns: size

Implements ns3::Header.

Definition at line 55 of file ripng-header.cc.

Referenced by Deserialize(), ns3::RipNg::DoSendRouteUpdate(), ns3::RipNgHeader::GetSerializedSize(), and ns3::RipNg::HandleRequests().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::RipNgRte::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 36 of file ripng-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

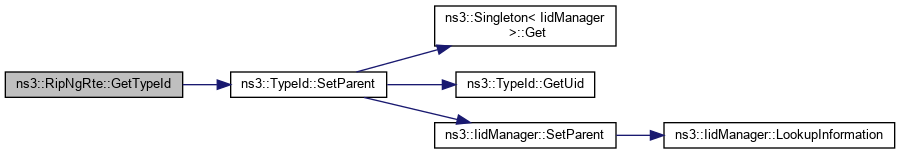

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

void ns3::RipNgRte::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 50 of file ripng-header.cc.

References m_metric, m_prefix, m_prefixLen, and m_tag.

Referenced by ns3::operator<<().

Here is the caller graph for this function:
