The QKD key is an elementary class of QKDNetSim. More...

#include "qkd-key.h"

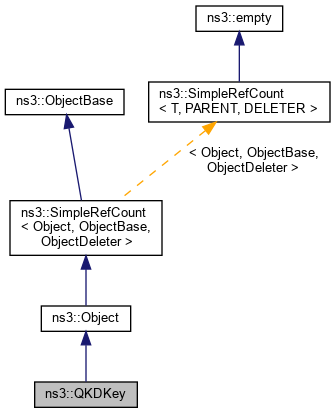

Inheritance diagram for ns3::QKDKey:

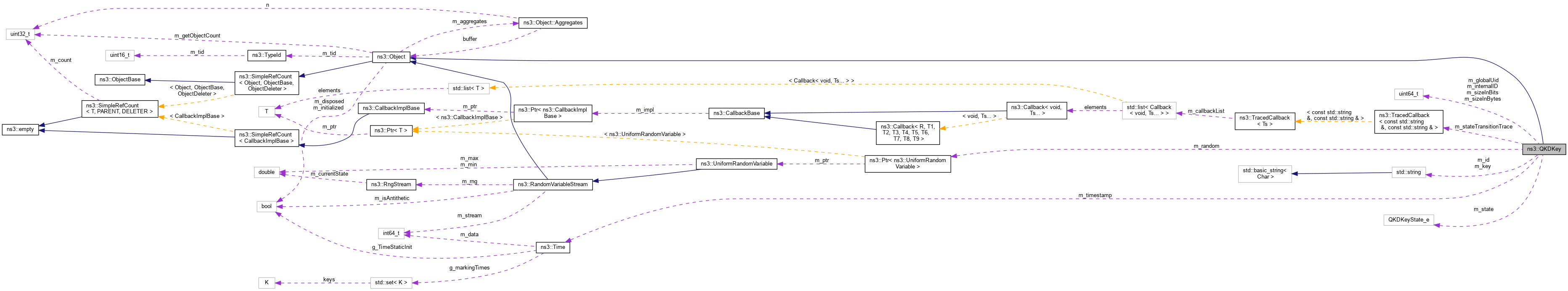

Collaboration diagram for ns3::QKDKey:

Public Types
enum	QKDKeyState_e { INIT , READY , SERVED , TRANSFORMED , USED , OBSOLETE , RESTORED , RESERVED }
	The QKD key states. More...

Public Member Functions
	QKDKey (std::string keyId, std::string key)
	Constructor. More...

	QKDKey (std::string keyId, uint64_t keyIdnum, std::string key)
	Constructor. More...

	QKDKey (std::string keyId, uint64_t keyIdnum, uint64_t keySize)
	Constructor. More...

	QKDKey (uint64_t keySize)
	Constructor. More...

std::string	ConsumeKeyString (void)
	Get the key value and switch the key state to SERVED. More...

Ptr< QKDKey >	Copy (void) const
	Copy the key. More...

std::string	GenerateRandomString (const int len)
	Get a random string. More...

std::string	GetId (void) const
	Get the key identifier. More...

uint8_t *	GetKey (void)
	Get key value in byte* format. More...

std::string	GetKeyBinary ()
	Get key value in bit notation. More...

std::string	GetKeyString (void)
	Get QKD key value. More...

Time	GetKeyTimestamp ()
	Get the key timestamp. More...

uint64_t	GetSize (void) const
	Get the key size in bytes. More...

uint64_t	GetSizeInBits (void) const
	Get the key size in bits. More...

QKDKeyState_e	GetState () const
	Get the current state of the key. More...

std::string	GetStateString () const
	Get the current state of the key in a string format. More...

void	MarkReady ()
	Mark the key as ready. More...

void	MarkReserved ()
	Mark the key as reserved. More...

void	MarkRestored ()
	Mark the key as restored. More...

void	MarkServed ()
	Mark the key as served. More...

void	MarkTransformed ()
	Mark the key as transformed. More...

void	MarkUsed ()
	Mark the key as used. More...

void	SetId (std::string value)
	Set the key identifier. More...

void	SetSize (uint64_t sizeInBytes)
	Set the key size. More...

void	SwitchToState (QKDKeyState_e state)
	Change the state of the key. More...

std::string	ToString (void)
	Get the key value. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static std::string	GetStateString (QKDKeyState_e state)
	Get the given state in a string format. More...

static TypeId	GetTypeId (void)
	Get the TypeId. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Public Attributes
ns3::TracedCallback< const std::string &, const std::string & >	m_stateTransitionTrace
	The `StateTransition` trace source. More...

Private Attributes
std::string	m_id

uint64_t	m_internalID

std::string	m_key

Ptr< UniformRandomVariable >	m_random

uint64_t	m_sizeInBits

uint64_t	m_sizeInBytes

QKDKeyState_e	m_state
	The key state. More...

Time	m_timestamp

Static Private Attributes
static uint64_t	m_globalUid = 0

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

The QKD key is an elementary class of QKDNetSim.

Introspection did not find any typical Config paths.

It is used to describe the key that is established in the QKD process.

\noteIn the QKD process, keys are stored as blocks. Each QKDKey is identified using a unique 32 long character identifier. The key is also marked with the timestamp of its origin, its length, and the condition in which the key is located. QKDKey can be found in one of the following states: INIT - the call for the establishment of the key record is initiated READY - the key is successfully created and stored SERVED - the key is served for usage on request TRANSFORMED - the key is generated as the result of transform operation USED - the key is used for cryptographic operations (under construction) OBSOLETE - the key validity has expired (under construction) RESTORED - the key is restored for further usage (under construction)

No Attributes are defined for this type.

TraceSources

StateTransition: Trace fired upon every QKDKey state transition.
Callback signature: ns3::Application::StateTransitionCallback

Size of this type is 168 bytes (on a 64-bit architecture).

Definition at line 69 of file qkd-key.h.

Member Enumeration Documentation

◆ QKDKeyState_e

enum ns3::QKDKey::QKDKeyState_e

The QKD key states.

Enumerator
INIT
READY
SERVED
TRANSFORMED
USED
OBSOLETE
RESTORED
RESERVED

Definition at line 76 of file qkd-key.h.

Constructor & Destructor Documentation

◆ QKDKey() [1/4]

ns3::QKDKey::QKDKey ( uint64_t keySize )

Constructor.

Create a random QKD key.

Parameters

keySize The key size.

Definition at line 68 of file qkd-key.cc.

References GenerateRandomString(), GetStateString(), m_globalUid, m_id, m_internalID, m_key, m_random, m_sizeInBits, m_sizeInBytes, m_timestamp, ns3::Simulator::Now(), NS_FATAL_ERROR, NS_LOG_FUNCTION, READY, and SwitchToState().

Here is the call graph for this function:

◆ QKDKey() [2/4]

ns3::QKDKey::QKDKey	(	std::string	keyId,
		uint64_t	keyIdnum,
		uint64_t	keySize
	)

Constructor.

Create a QKD key.

Parameters

keyId	The key identifier.
KeyIdnum	The internal key identifier.
keySize	The key size.

Definition at line 106 of file qkd-key.cc.

References GenerateRandomString(), m_globalUid, m_id, m_internalID, m_key, m_random, m_sizeInBits, m_sizeInBytes, m_timestamp, ns3::Simulator::Now(), NS_FATAL_ERROR, NS_LOG_FUNCTION, READY, and SwitchToState().

Here is the call graph for this function:

◆ QKDKey() [3/4]

ns3::QKDKey::QKDKey	(	std::string	keyId,
		uint64_t	keyIdnum,
		std::string	key
	)

Constructor.

Create a QKD key.

Parameters

keyId	The key identifier.
keyIdnum	The internal key identifier.
key	The key value.

Definition at line 134 of file qkd-key.cc.

References m_globalUid, m_id, m_internalID, m_key, m_random, m_sizeInBits, m_sizeInBytes, m_timestamp, ns3::Simulator::Now(), NS_LOG_FUNCTION, READY, and SwitchToState().

Here is the call graph for this function:

◆ QKDKey() [4/4]

ns3::QKDKey::QKDKey	(	std::string	keyId,
		std::string	key
	)

Constructor.

Create a QKD key.

Parameters

keyId	The key identifier.
key	The key value.

Definition at line 155 of file qkd-key.cc.

References m_key, m_random, m_sizeInBits, m_sizeInBytes, m_timestamp, ns3::Simulator::Now(), READY, and SwitchToState().

Here is the call graph for this function:

Member Function Documentation

◆ ConsumeKeyString()

std::string ns3::QKDKey::ConsumeKeyString ( void )

Get the key value and switch the key state to SERVED.

Returns: The key value.

Definition at line 227 of file qkd-key.cc.

References m_id, m_key, NS_LOG_FUNCTION, SERVED, and SwitchToState().

Here is the call graph for this function:

◆ Copy()

Ptr< QKDKey > ns3::QKDKey::Copy ( void ) const

Copy the key.

Returns: The QKD key object.

Definition at line 55 of file qkd-key.cc.

◆ GenerateRandomString()

std::string ns3::QKDKey::GenerateRandomString ( const int len )

Get a random string.

Parameters

len	The length of the string.

Returns: The random string.

Definition at line 292 of file qkd-key.cc.

References ns3::UniformRandomVariable::GetValue(), m_internalID, m_random, and NS_LOG_FUNCTION.

Referenced by QKDKey().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetId()

std::string ns3::QKDKey::GetId ( void ) const

Get the key identifier.

Returns: The key identifier.

Definition at line 190 of file qkd-key.cc.

References m_id.

◆ GetKey()

uint8_t * ns3::QKDKey::GetKey ( void )

Get key value in byte* format.

Convert key from std::String to byte*.

Returns: The key value in byte* format.

Definition at line 242 of file qkd-key.cc.

References m_id, m_key, NS_LOG_FUNCTION, SERVED, and SwitchToState().

Here is the call graph for this function:

◆ GetKeyBinary()

std::string ns3::QKDKey::GetKeyBinary ( )

Get key value in bit notation.

Returns: The key value in bit notation.

Definition at line 177 of file qkd-key.cc.

References m_key, and NS_LOG_FUNCTION.

◆ GetKeyString()

std::string ns3::QKDKey::GetKeyString ( void )

Get QKD key value.

Returns: The key value.

Definition at line 170 of file qkd-key.cc.

References m_key, and NS_LOG_FUNCTION.

◆ GetKeyTimestamp()

Time ns3::QKDKey::GetKeyTimestamp ( )

Get the key timestamp.

Returns: The key timestamp.

Definition at line 376 of file qkd-key.cc.

References m_timestamp.

◆ GetSize()

uint64_t ns3::QKDKey::GetSize ( void ) const

Get the key size in bytes.

Returns: The key size.

Definition at line 202 of file qkd-key.cc.

References m_id, m_sizeInBytes, and NS_LOG_FUNCTION.

◆ GetSizeInBits()

uint64_t ns3::QKDKey::GetSizeInBits ( void ) const

Get the key size in bits.

Returns: The key size.

Definition at line 209 of file qkd-key.cc.

References m_id, m_sizeInBytes, and NS_LOG_FUNCTION.

◆ GetState()

QKDKey::QKDKeyState_e ns3::QKDKey::GetState ( void ) const

Get the current state of the key.

Returns: The current state of the key.

Definition at line 311 of file qkd-key.cc.

References m_state.

◆ GetStateString() [1/2]

std::string ns3::QKDKey::GetStateString ( ) const

Get the current state of the key in a string format.

Returns: The current state of the key.

Definition at line 356 of file qkd-key.cc.

References m_state.

Referenced by QKDKey(), and SwitchToState().

Here is the caller graph for this function:

◆ GetStateString() [2/2]

std::string ns3::QKDKey::GetStateString ( QKDKey::QKDKeyState_e state )

static

Get the given state in a string format.

Parameters

state The key state.

Returns: The key state expressed in string format.

Definition at line 319 of file qkd-key.cc.

References INIT, NS_FATAL_ERROR, OBSOLETE, READY, RESERVED, RESTORED, SERVED, TRANSFORMED, and USED.

◆ GetTypeId()

TypeId ns3::QKDKey::GetTypeId ( void )

static

Get the TypeId.

Returns: The TypeId for this class.

Definition at line 40 of file qkd-key.cc.

References m_stateTransitionTrace, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

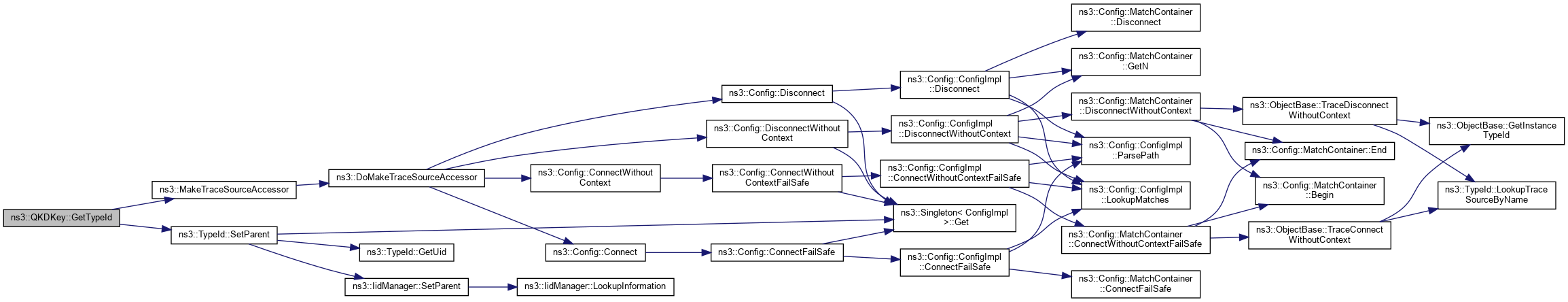

Here is the call graph for this function:

◆ MarkReady()

void ns3::QKDKey::MarkReady ( )

Mark the key as ready.

Definition at line 252 of file qkd-key.cc.

References m_id, m_key, m_state, NS_LOG_FUNCTION, READY, and SwitchToState().

Here is the call graph for this function:

◆ MarkReserved()

void ns3::QKDKey::MarkReserved ( )

Mark the key as reserved.

Definition at line 280 of file qkd-key.cc.

References m_id, m_key, m_state, NS_LOG_FUNCTION, RESERVED, and SwitchToState().

Here is the call graph for this function:

◆ MarkRestored()

void ns3::QKDKey::MarkRestored ( )

Mark the key as restored.

Definition at line 272 of file qkd-key.cc.

References m_id, m_key, m_state, NS_LOG_FUNCTION, RESTORED, and SwitchToState().

Here is the call graph for this function:

◆ MarkServed()

void ns3::QKDKey::MarkServed ( )

Mark the key as served.

Definition at line 258 of file qkd-key.cc.

References m_id, m_key, m_state, NS_LOG_FUNCTION, SERVED, and SwitchToState().

Here is the call graph for this function:

◆ MarkTransformed()

void ns3::QKDKey::MarkTransformed ( )

Mark the key as transformed.

Definition at line 286 of file qkd-key.cc.

References m_id, m_key, m_state, NS_LOG_FUNCTION, SwitchToState(), and TRANSFORMED.

Here is the call graph for this function:

◆ MarkUsed()

void ns3::QKDKey::MarkUsed ( )

Mark the key as used.

Definition at line 265 of file qkd-key.cc.

References m_id, m_key, m_state, NS_LOG_FUNCTION, SwitchToState(), and USED.

Here is the call graph for this function:

◆ SetId()

void ns3::QKDKey::SetId ( std::string value )

Set the key identifier.

Parameters

value The key identifier.

Definition at line 196 of file qkd-key.cc.

References m_id.

◆ SetSize()

void ns3::QKDKey::SetSize ( uint64_t sizeInBytes )

Set the key size.

Parameters

sizeInBytes The key size in bytes.

Definition at line 216 of file qkd-key.cc.

References m_id, m_sizeInBits, m_sizeInBytes, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

◆ SwitchToState()

void ns3::QKDKey::SwitchToState ( QKDKey::QKDKeyState_e state )

Change the state of the key.

Fires the StateTransition trace source.

Parameters

state The new state.

Definition at line 362 of file qkd-key.cc.

References GetStateString(), m_state, m_stateTransitionTrace, NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by QKDKey(), ConsumeKeyString(), GetKey(), MarkReady(), MarkReserved(), MarkRestored(), MarkServed(), MarkTransformed(), and MarkUsed().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ToString()

std::string ns3::QKDKey::ToString ( void )

Get the key value.

Returns: The key value.

Definition at line 235 of file qkd-key.cc.

References m_id, m_key, and NS_LOG_FUNCTION.

Member Data Documentation

◆ m_globalUid

uint64_t ns3::QKDKey::m_globalUid = 0

staticprivate

Definition at line 265 of file qkd-key.h.

Referenced by QKDKey().

◆ m_id

std::string ns3::QKDKey::m_id

private

Definition at line 264 of file qkd-key.h.

Referenced by QKDKey(), ConsumeKeyString(), GetId(), GetKey(), GetSize(), GetSizeInBits(), MarkReady(), MarkReserved(), MarkRestored(), MarkServed(), MarkTransformed(), MarkUsed(), SetId(), SetSize(), and ToString().

◆ m_internalID

uint64_t ns3::QKDKey::m_internalID

private

Definition at line 263 of file qkd-key.h.

Referenced by QKDKey(), and GenerateRandomString().

◆ m_key

std::string ns3::QKDKey::m_key

private

Definition at line 268 of file qkd-key.h.

Referenced by QKDKey(), ConsumeKeyString(), GetKey(), GetKeyBinary(), GetKeyString(), MarkReady(), MarkReserved(), MarkRestored(), MarkServed(), MarkTransformed(), MarkUsed(), and ToString().

◆ m_random

Ptr<UniformRandomVariable> ns3::QKDKey::m_random

private

Definition at line 271 of file qkd-key.h.

Referenced by QKDKey(), and GenerateRandomString().

◆ m_sizeInBits

uint64_t ns3::QKDKey::m_sizeInBits

private

Definition at line 267 of file qkd-key.h.

Referenced by QKDKey(), and SetSize().

◆ m_sizeInBytes

uint64_t ns3::QKDKey::m_sizeInBytes

private

Definition at line 266 of file qkd-key.h.

Referenced by QKDKey(), GetSize(), GetSizeInBits(), and SetSize().

◆ m_state

QKDKeyState_e ns3::QKDKey::m_state

private

The key state.

Definition at line 270 of file qkd-key.h.

Referenced by GetState(), GetStateString(), MarkReady(), MarkReserved(), MarkRestored(), MarkServed(), MarkTransformed(), MarkUsed(), and SwitchToState().

◆ m_stateTransitionTrace

ns3::TracedCallback<const std::string &, const std::string &> ns3::QKDKey::m_stateTransitionTrace

The StateTransition trace source.

Definition at line 260 of file qkd-key.h.

Referenced by GetTypeId(), and SwitchToState().

◆ m_timestamp

Time ns3::QKDKey::m_timestamp

private

Definition at line 269 of file qkd-key.h.

Referenced by QKDKey(), and GetKeyTimestamp().

The documentation for this class was generated from the following files:

src/qkd/model/qkd-key.h
src/qkd/model/qkd-key.cc

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

TraceSources

Member Enumeration Documentation

◆ QKDKeyState_e

Constructor & Destructor Documentation

◆ QKDKey() [1/4]

◆ QKDKey() [2/4]

◆ QKDKey() [3/4]

◆ QKDKey() [4/4]

Member Function Documentation

◆ ConsumeKeyString()

◆ Copy()

◆ GenerateRandomString()

◆ GetId()

◆ GetKey()

◆ GetKeyBinary()

◆ GetKeyString()

◆ GetKeyTimestamp()

◆ GetSize()

◆ GetSizeInBits()

◆ GetState()

◆ GetStateString() [1/2]

◆ GetStateString() [2/2]

◆ GetTypeId()

◆ MarkReady()

◆ MarkReserved()

◆ MarkRestored()

◆ MarkServed()

◆ MarkTransformed()

◆ MarkUsed()

◆ SetId()

◆ SetSize()

◆ SwitchToState()

◆ ToString()

Member Data Documentation

◆ m_globalUid

◆ m_id

◆ m_internalID

◆ m_key

◆ m_random

◆ m_sizeInBits

◆ m_sizeInBytes

◆ m_state

◆ m_stateTransitionTrace

◆ m_timestamp
