ns3::PriorityUlJob Class Reference

PriorityUlJob class. More...

#include "ul-job.h"

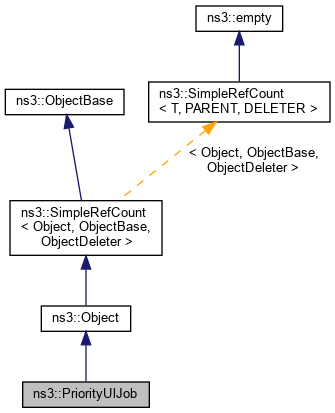

+ Inheritance diagram for ns3::PriorityUlJob:

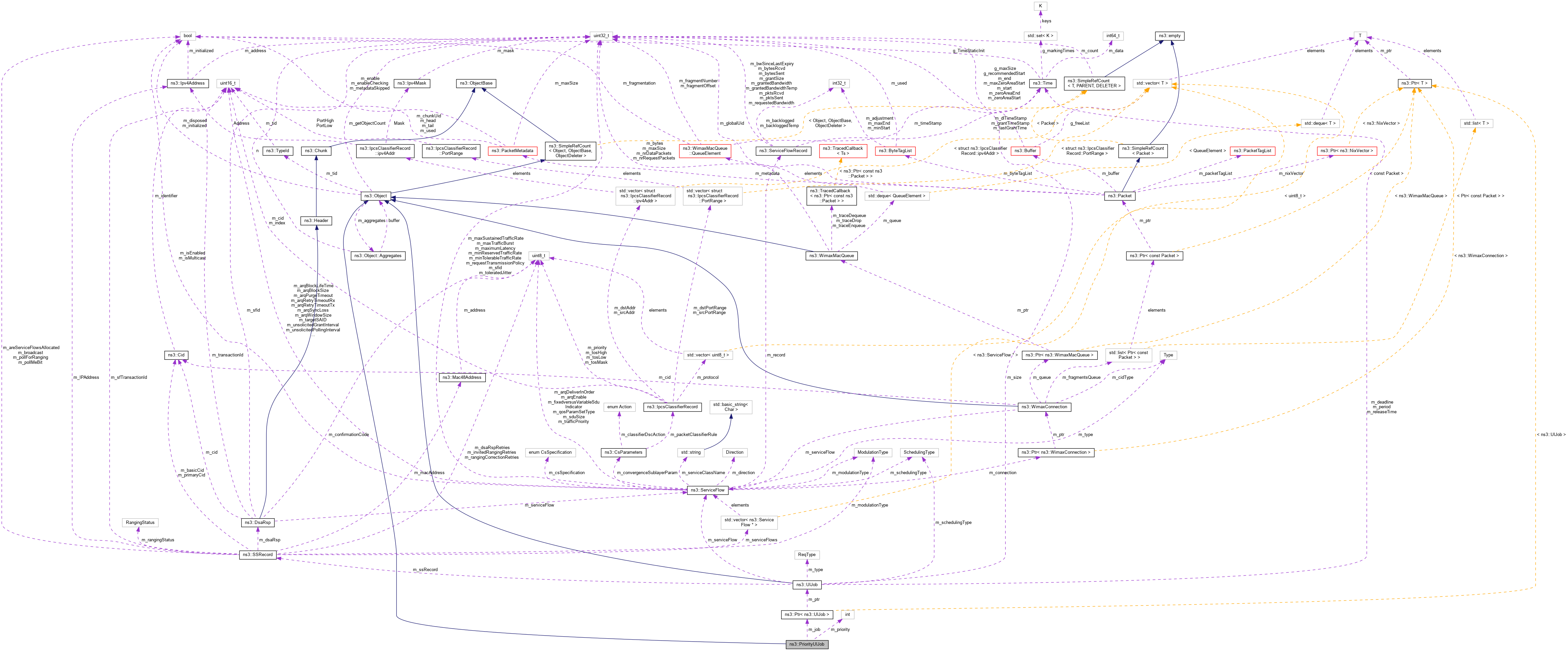

+ Collaboration diagram for ns3::PriorityUlJob:

Public Member Functions

 PriorityUlJob ()
 this class implements an auxiliary struct to compute the priority of the rtPS and nrtPS in the intermediate queue More...

int GetPriority (void)
 Get priority. More...

Ptr< UlJobGetUlJob (void)
 Get UL job functiion. More...

void SetPriority (int priority)
 Set priority. More...

void SetUlJob (Ptr< UlJob > job)
 Set UL job. More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= ([[maybe_unused]] const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Private Attributes

Ptr< UlJobm_job
 the job More...

int m_priority
 the priority More...


Additional Inherited Members

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoDispose (void)
 Destructor implementation. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

PriorityUlJob class.

Definition at line 167 of file ul-job.h.

Constructor & Destructor Documentation

◆ PriorityUlJob()

ns3::PriorityUlJob::PriorityUlJob ( void  )

this class implements an auxiliary struct to compute the priority of the rtPS and nrtPS in the intermediate queue

Definition at line 146 of file ul-job.cc.

Member Function Documentation

◆ GetPriority()

int ns3::PriorityUlJob::GetPriority ( void  )

Get priority.

Returns
the priority

Definition at line 151 of file ul-job.cc.

References m_priority.

Referenced by ns3::SortProcess::operator()().

+ Here is the caller graph for this function:

◆ GetUlJob()

Ptr< UlJob > ns3::PriorityUlJob::GetUlJob ( void  )

Get UL job functiion.

Returns
the UL job

Definition at line 163 of file ul-job.cc.

References m_job.

Referenced by ns3::SortProcess::operator()().

+ Here is the caller graph for this function:

◆ SetPriority()

void ns3::PriorityUlJob::SetPriority ( int  priority)

Set priority.

Parameters
prioritythe priority

Definition at line 157 of file ul-job.cc.

References m_priority.

◆ SetUlJob()

void ns3::PriorityUlJob::SetUlJob ( Ptr< UlJob job)

Set UL job.

Parameters
jobthe UL job

Definition at line 168 of file ul-job.cc.

References m_job.

Member Data Documentation

◆ m_job

Ptr<UlJob> ns3::PriorityUlJob::m_job
private

the job

Definition at line 201 of file ul-job.h.

Referenced by GetUlJob(), and SetUlJob().

◆ m_priority

int ns3::PriorityUlJob::m_priority
private

the priority

Definition at line 200 of file ul-job.h.

Referenced by GetPriority(), and SetPriority().


The documentation for this class was generated from the following files:
