ns3::PointToPointEpcHelper Class Reference

Create an EPC network with PointToPoint links in the backhaul network. More...

#include "point-to-point-epc-helper.h"

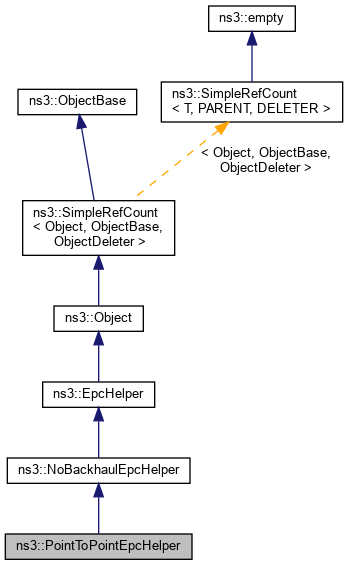

+ Inheritance diagram for ns3::PointToPointEpcHelper:

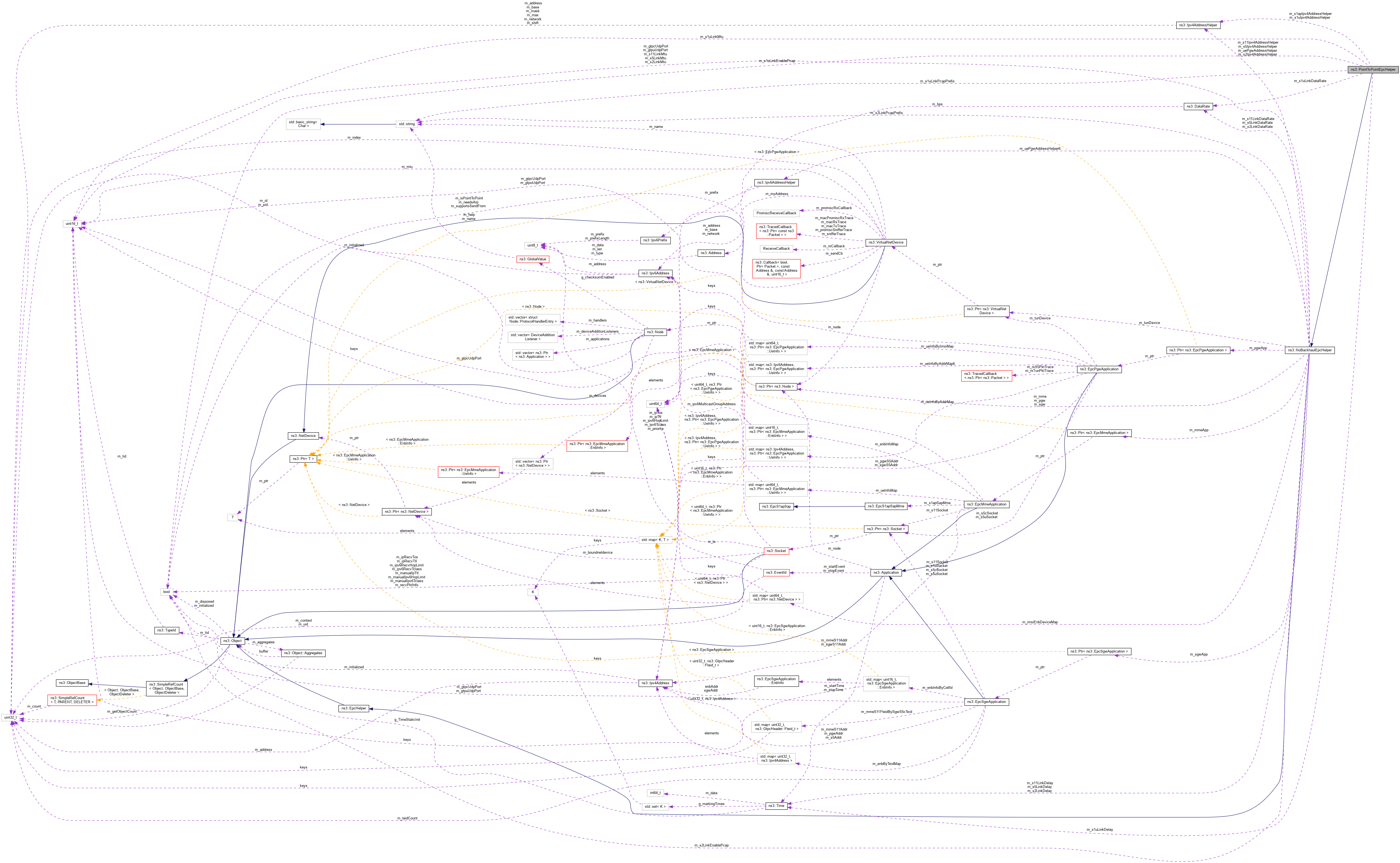

+ Collaboration diagram for ns3::PointToPointEpcHelper:

Public Member Functions

 PointToPointEpcHelper ()
 Constructor. More...

virtual ~PointToPointEpcHelper ()
 Destructor. More...

virtual void AddEnb (Ptr< Node > enbNode, Ptr< NetDevice > lteEnbNetDevice, std::vector< uint16_t > cellIds)
 Add an eNB to the EPC. More...

virtual void DoDispose ()
 Destructor implementation. More...

TypeId GetInstanceTypeId () const
 Get the most derived TypeId for this Object. More...

- Public Member Functions inherited from ns3::NoBackhaulEpcHelper
 NoBackhaulEpcHelper ()
 Constructor. More...

virtual ~NoBackhaulEpcHelper ()
 Destructor. More...

virtual uint8_t ActivateEpsBearer (Ptr< NetDevice > ueLteDevice, uint64_t imsi, Ptr< EpcTft > tft, EpsBearer bearer)
 Activate an EPS bearer, setting up the corresponding S1-U tunnel. More...

virtual void AddS1Interface (Ptr< Node > enb, Ipv4Address enbAddress, Ipv4Address sgwAddress, std::vector< uint16_t > cellIds)
 Add an S1 interface between an eNB and a SGW. More...

virtual void AddUe (Ptr< NetDevice > ueLteDevice, uint64_t imsi)
 Notify the EPC of the existence of a new UE which might attach at a later time. More...

virtual void AddX2Interface (Ptr< Node > enbNode1, Ptr< Node > enbNode2)
 Add an X2 interface between two eNB. More...

virtual Ipv4InterfaceContainer AssignUeIpv4Address (NetDeviceContainer ueDevices)
 Assign IPv4 addresses to UE devices. More...

virtual Ipv6InterfaceContainer AssignUeIpv6Address (NetDeviceContainer ueDevices)
 Assign IPv6 addresses to UE devices. More...

virtual Ptr< NodeGetPgwNode () const
 Get the PGW node. More...

virtual Ptr< NodeGetSgwNode () const
 Get the SGW node. More...

virtual Ipv4Address GetUeDefaultGatewayAddress ()

virtual Ipv6Address GetUeDefaultGatewayAddress6 ()

- Public Member Functions inherited from ns3::EpcHelper
 EpcHelper ()
 Constructor. More...

virtual ~EpcHelper ()
 Destructor. More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= ([[maybe_unused]] const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::NoBackhaulEpcHelper
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::EpcHelper
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

Ipv4AddressHelper m_s1apIpv4AddressHelper
 Helper to assign addresses to S1-MME NetDevices. More...

Ipv4AddressHelper m_s1uIpv4AddressHelper
 S1-U interfaces. More...

DataRate m_s1uLinkDataRate
 The data rate to be used for the next S1-U link to be created. More...

Time m_s1uLinkDelay
 The delay to be used for the next S1-U link to be created. More...

bool m_s1uLinkEnablePcap
 Enable PCAP generation for S1 link. More...

uint16_t m_s1uLinkMtu
 The MTU of the next S1-U link to be created. More...

std::string m_s1uLinkPcapPrefix
 Prefix for the PCAP file for the S1 link. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::NoBackhaulEpcHelper
virtual void DoActivateEpsBearerForUe (const Ptr< NetDevice > &ueDevice, const Ptr< EpcTft > &tft, const EpsBearer &bearer) const
 DoActivateEpsBearerForUe: Schedule ActivateEpsBearer on the UE. More...

virtual void DoAddX2Interface (const Ptr< EpcX2 > &enb1X2, const Ptr< NetDevice > &enb1LteDev, const Ipv4Address &enb1X2Address, const Ptr< EpcX2 > &enb2X2, const Ptr< NetDevice > &enb2LteDev, const Ipv4Address &enb2X2Address) const
 DoAddX2Interface: Call AddX2Interface on top of the Enb device pointers. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Create an EPC network with PointToPoint links in the backhaul network.

Introspection did not find any typical Config paths.

This Helper extends NoBackhaulEpcHelper creating PointToPoint links in the backhaul network (i.e. in the S1-U and S1-MME interfaces)


Attributes

  • S1uLinkDataRate: The data rate to be used for the next S1-U link to be created
    • Set with class: DataRateValue
    • Underlying type: DataRate
    • Initial value: 10000000000bps
    • Flags: construct write read
  • S1uLinkDelay: The delay to be used for the next S1-U link to be created
    • Set with class: ns3::TimeValue
    • Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
    • Initial value: +0ns
    • Flags: construct write read
  • S1uLinkMtu: The MTU of the next S1-U link to be created. Note that, because of the additional GTP/UDP/IP tunneling overhead, you need a MTU larger than the end-to-end MTU that you want to support.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint16_t 0:65535
    • Initial value: 2000
    • Flags: construct write read
  • S1uLinkPcapPrefix: Prefix for Pcap generated by S1-U link
    • Set with class: StringValue
    • Underlying type:
    • Initial value: s1u
    • Flags: construct write read
  • S1uLinkEnablePcap: Enable Pcap for X2 link
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read

Attributes defined in parent class ns3::NoBackhaulEpcHelper

  • S5LinkDataRate: The data rate to be used for the next S5 link to be created
    • Set with class: DataRateValue
    • Underlying type: DataRate
    • Initial value: 10000000000bps
    • Flags: construct write read
  • S5LinkDelay: The delay to be used for the next S5 link to be created
    • Set with class: ns3::TimeValue
    • Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
    • Initial value: +0ns
    • Flags: construct write read
  • S5LinkMtu: The MTU of the next S5 link to be created
    • Set with class: ns3::UintegerValue
    • Underlying type: uint16_t 0:65535
    • Initial value: 2000
    • Flags: construct write read
  • S11LinkDataRate: The data rate to be used for the next S11 link to be created
    • Set with class: DataRateValue
    • Underlying type: DataRate
    • Initial value: 10000000000bps
    • Flags: construct write read
  • S11LinkDelay: The delay to be used for the next S11 link to be created
    • Set with class: ns3::TimeValue
    • Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
    • Initial value: +0ns
    • Flags: construct write read
  • S11LinkMtu: The MTU of the next S11 link to be created.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint16_t 0:65535
    • Initial value: 2000
    • Flags: construct write read
  • X2LinkDataRate: The data rate to be used for the next X2 link to be created
    • Set with class: DataRateValue
    • Underlying type: DataRate
    • Initial value: 10000000000bps
    • Flags: construct write read
  • X2LinkDelay: The delay to be used for the next X2 link to be created
    • Set with class: ns3::TimeValue
    • Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
    • Initial value: +0ns
    • Flags: construct write read
  • X2LinkMtu: The MTU of the next X2 link to be created. Note that, because of some big X2 messages, you need a big MTU.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint16_t 0:65535
    • Initial value: 3000
    • Flags: construct write read
  • X2LinkPcapPrefix: Prefix for Pcap generated by X2 link
    • Set with class: StringValue
    • Underlying type:
    • Initial value: x2
    • Flags: construct write read
  • X2LinkEnablePcap: Enable Pcap for X2 link
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 512 bytes (on a 64-bit architecture).

Definition at line 38 of file point-to-point-epc-helper.h.

Constructor & Destructor Documentation

◆ PointToPointEpcHelper()

ns3::PointToPointEpcHelper::PointToPointEpcHelper ( )

Constructor.

Definition at line 38 of file point-to-point-epc-helper.cc.

References ns3::ObjectBase::ConstructSelf(), m_s1apIpv4AddressHelper, m_s1uIpv4AddressHelper, NS_LOG_FUNCTION, and ns3::Ipv4AddressHelper::SetBase().

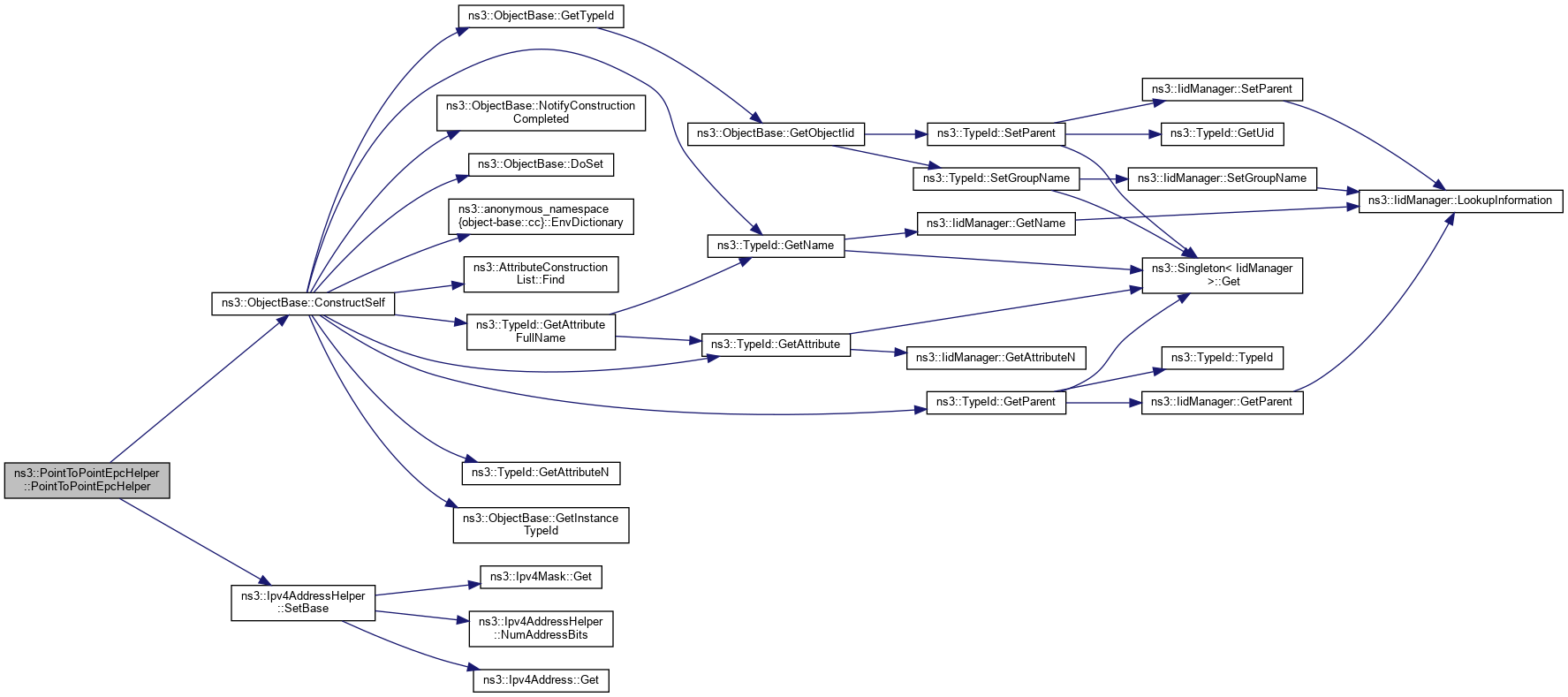

+ Here is the call graph for this function:

◆ ~PointToPointEpcHelper()

ns3::PointToPointEpcHelper::~PointToPointEpcHelper ( )
virtual

Destructor.

Definition at line 52 of file point-to-point-epc-helper.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

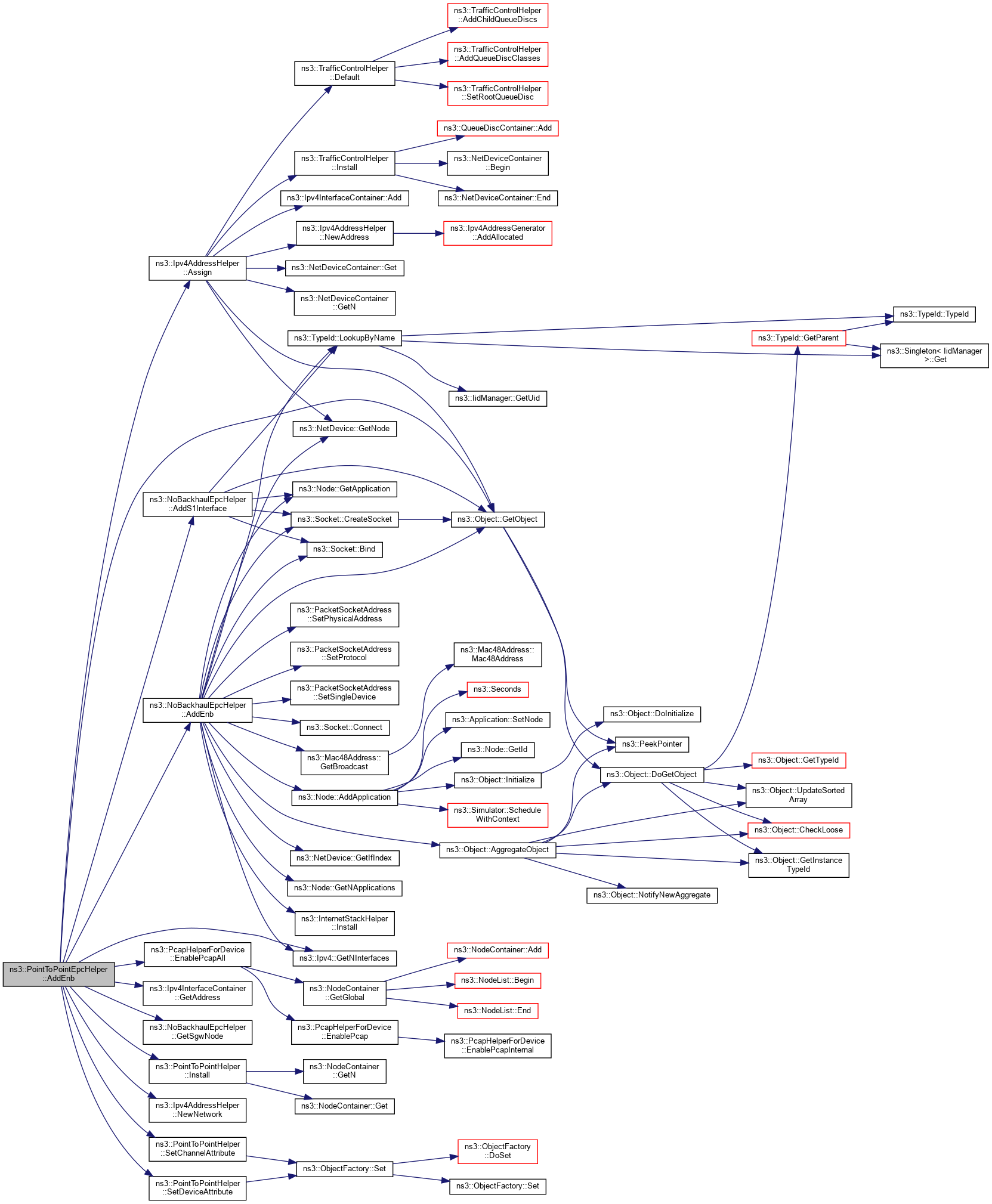

◆ AddEnb()

void ns3::PointToPointEpcHelper::AddEnb ( Ptr< Node enbNode,
Ptr< NetDevice lteEnbNetDevice,
std::vector< uint16_t >  cellIds
)
virtual

◆ DoDispose()

void ns3::PointToPointEpcHelper::DoDispose ( void  )
virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::NoBackhaulEpcHelper.

Definition at line 101 of file point-to-point-epc-helper.cc.

References ns3::NoBackhaulEpcHelper::DoDispose(), and NS_LOG_FUNCTION.

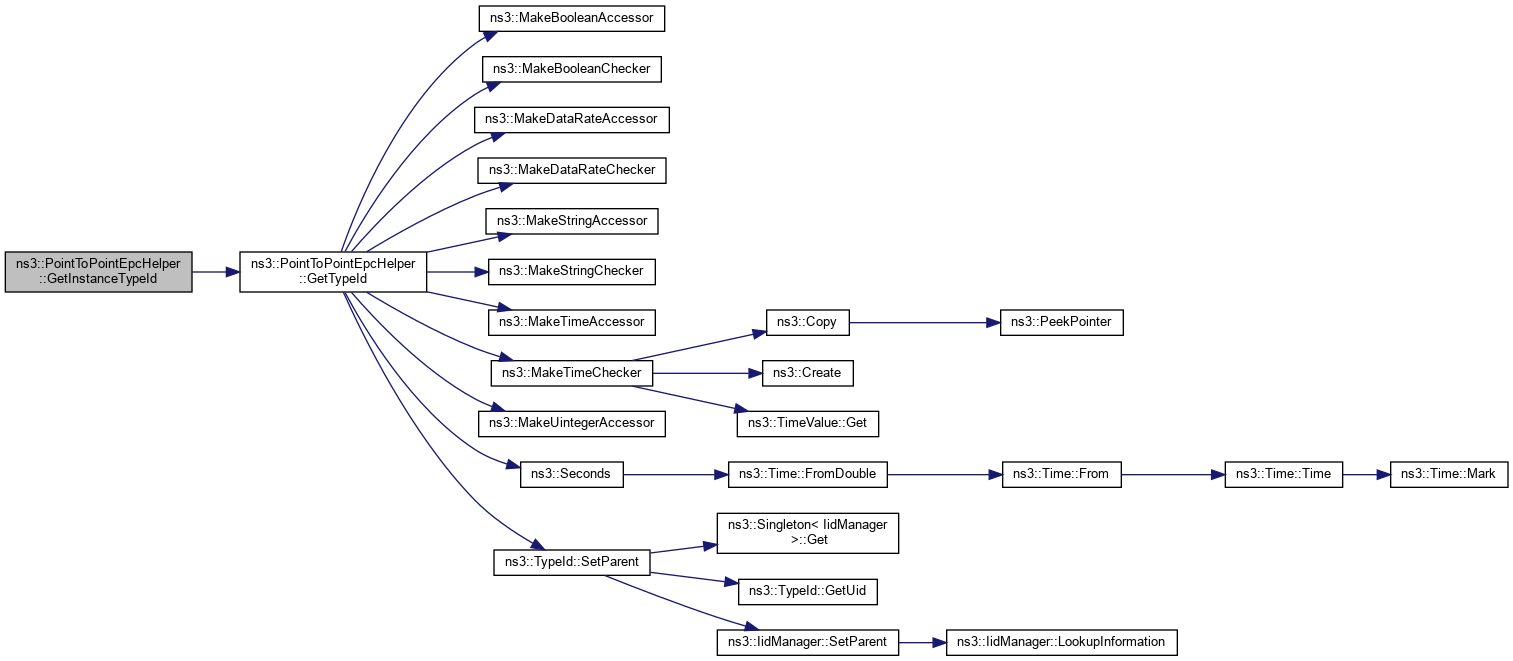

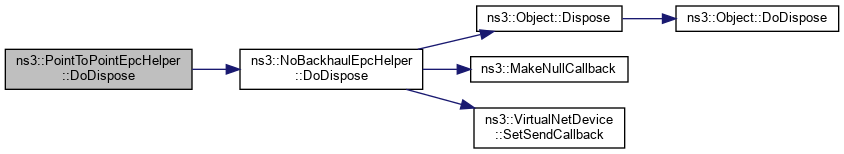

+ Here is the call graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::PointToPointEpcHelper::GetInstanceTypeId ( ) const
virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Reimplemented from ns3::NoBackhaulEpcHelper.

Definition at line 95 of file point-to-point-epc-helper.cc.

References GetTypeId().

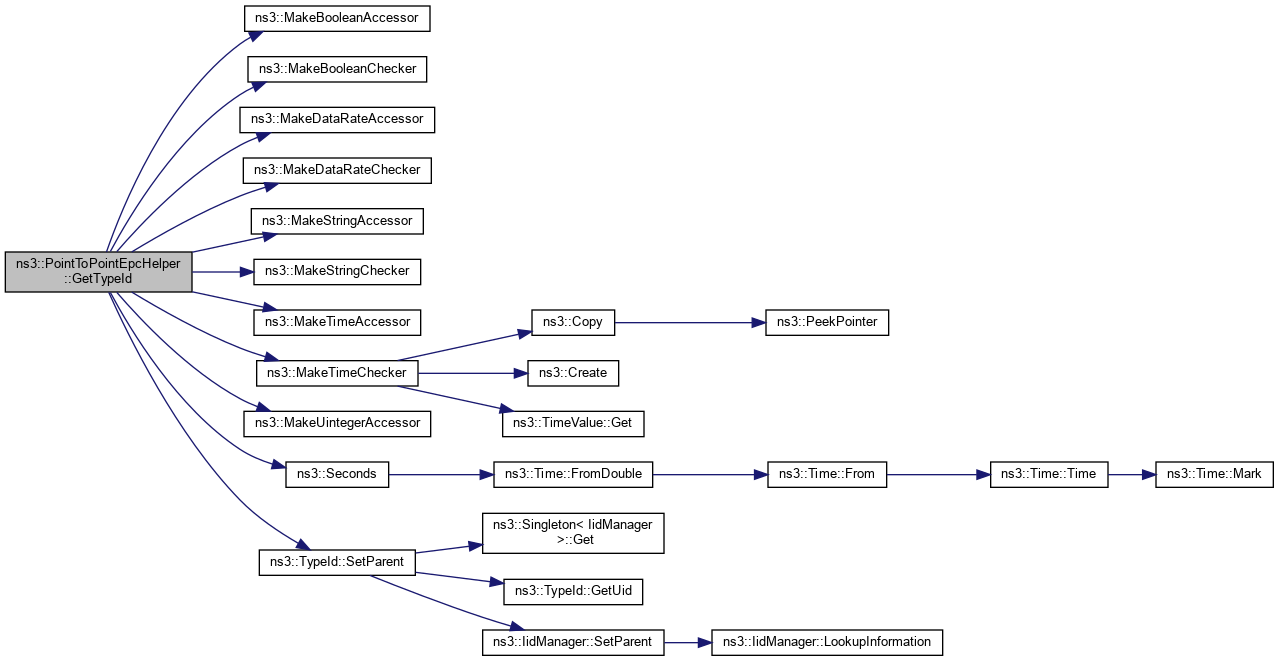

+ Here is the call graph for this function:

◆ GetTypeId()

Member Data Documentation

◆ m_s1apIpv4AddressHelper

Ipv4AddressHelper ns3::PointToPointEpcHelper::m_s1apIpv4AddressHelper
private

Helper to assign addresses to S1-MME NetDevices.

Definition at line 95 of file point-to-point-epc-helper.h.

Referenced by PointToPointEpcHelper().

◆ m_s1uIpv4AddressHelper

Ipv4AddressHelper ns3::PointToPointEpcHelper::m_s1uIpv4AddressHelper
private

S1-U interfaces.

Helper to assign addresses to S1-U NetDevices

Definition at line 72 of file point-to-point-epc-helper.h.

Referenced by PointToPointEpcHelper(), and AddEnb().

◆ m_s1uLinkDataRate

DataRate ns3::PointToPointEpcHelper::m_s1uLinkDataRate
private

The data rate to be used for the next S1-U link to be created.

Definition at line 77 of file point-to-point-epc-helper.h.

Referenced by AddEnb(), and GetTypeId().

◆ m_s1uLinkDelay

Time ns3::PointToPointEpcHelper::m_s1uLinkDelay
private

The delay to be used for the next S1-U link to be created.

Definition at line 82 of file point-to-point-epc-helper.h.

Referenced by AddEnb(), and GetTypeId().

◆ m_s1uLinkEnablePcap

bool ns3::PointToPointEpcHelper::m_s1uLinkEnablePcap
private

Enable PCAP generation for S1 link.

Definition at line 100 of file point-to-point-epc-helper.h.

Referenced by AddEnb(), and GetTypeId().

◆ m_s1uLinkMtu

uint16_t ns3::PointToPointEpcHelper::m_s1uLinkMtu
private

The MTU of the next S1-U link to be created.

Note that, because of the additional GTP/UDP/IP tunneling overhead, you need a MTU larger than the end-to-end MTU that you want to support.

Definition at line 90 of file point-to-point-epc-helper.h.

Referenced by AddEnb(), and GetTypeId().

◆ m_s1uLinkPcapPrefix

std::string ns3::PointToPointEpcHelper::m_s1uLinkPcapPrefix
private

Prefix for the PCAP file for the S1 link.

Definition at line 105 of file point-to-point-epc-helper.h.

Referenced by AddEnb(), and GetTypeId().


The documentation for this class was generated from the following files:
