ns3::OfdmUcdChannelEncodings Class Reference

This class implements the OFDM UCD channel encodings as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 11.3.1 UCD channel encodings, page 651. More...

#include "ul-mac-messages.h"

+ Inheritance diagram for ns3::OfdmUcdChannelEncodings:

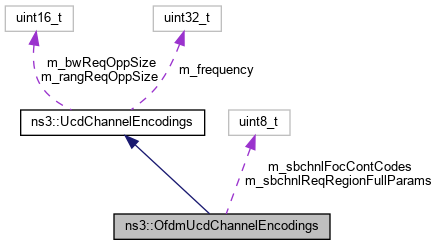

+ Collaboration diagram for ns3::OfdmUcdChannelEncodings:

Public Member Functions

 OfdmUcdChannelEncodings (void)

 ~OfdmUcdChannelEncodings (void)

uint8_t GetSbchnlFocContCodes (void) const
 Get SB channel for control codes. More...

uint8_t GetSbchnlReqRegionFullParams (void) const
 Get SB channel request region full parameters. More...

uint16_t GetSize (void) const
 Get size. More...

void SetSbchnlFocContCodes (uint8_t sbchnlFocContCodes)
 Set SB channel for control codes. More...

void SetSbchnlReqRegionFullParams (uint8_t sbchnlReqRegionFullParams)
 Set SB channel reguest region full parameters. More...

- Public Member Functions inherited from ns3::UcdChannelEncodings
 UcdChannelEncodings (void)

virtual ~UcdChannelEncodings (void)

uint16_t GetBwReqOppSize (void) const
 Get BW request opp size. More...

uint32_t GetFrequency (void) const
 Get frequency. More...

uint16_t GetRangReqOppSize (void) const
 Get range request opp size. More...

uint16_t GetSize (void) const
 Get size. More...

Buffer::Iterator Read (Buffer::Iterator start)
 Read item. More...

void SetBwReqOppSize (uint16_t bwReqOppSize)
 Set BW request opp size. More...

void SetFrequency (uint32_t frequency)
 Set frequency. More...

void SetRangReqOppSize (uint16_t rangReqOppSize)
 Set range request opp size. More...

Buffer::Iterator Write (Buffer::Iterator start) const
 Write item. More...


Private Member Functions

virtual Buffer::Iterator DoRead (Buffer::Iterator start)
 Read item. More...

virtual Buffer::Iterator DoWrite (Buffer::Iterator start) const
 Write item. More...


Private Attributes

uint8_t m_sbchnlFocContCodes
 SB channel for control codes. More...

uint8_t m_sbchnlReqRegionFullParams
 SB channel request region full parameters. More...


Detailed Description

This class implements the OFDM UCD channel encodings as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 11.3.1 UCD channel encodings, page 651.

Definition at line 133 of file ul-mac-messages.h.

Constructor & Destructor Documentation

◆ OfdmUcdChannelEncodings()

ns3::OfdmUcdChannelEncodings::OfdmUcdChannelEncodings ( void  )

Definition at line 105 of file ul-mac-messages.cc.

◆ ~OfdmUcdChannelEncodings()

ns3::OfdmUcdChannelEncodings::~OfdmUcdChannelEncodings ( void  )

Definition at line 111 of file ul-mac-messages.cc.

Member Function Documentation

◆ DoRead()

Buffer::Iterator ns3::OfdmUcdChannelEncodings::DoRead ( Buffer::Iterator  start)
privatevirtual

Read item.

Parameters
startthe iterator
Returns
the updated iterator

Implements ns3::UcdChannelEncodings.

Definition at line 156 of file ul-mac-messages.cc.

References m_sbchnlFocContCodes, m_sbchnlReqRegionFullParams, ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

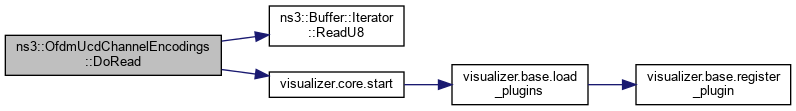

+ Here is the call graph for this function:

◆ DoWrite()

Buffer::Iterator ns3::OfdmUcdChannelEncodings::DoWrite ( Buffer::Iterator  start) const
privatevirtual

Write item.

Parameters
startthe iterator
Returns
the updated iterator

Implements ns3::UcdChannelEncodings.

Definition at line 147 of file ul-mac-messages.cc.

References m_sbchnlFocContCodes, m_sbchnlReqRegionFullParams, visualizer.core::start(), and ns3::Buffer::Iterator::WriteU8().

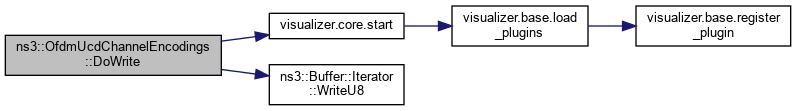

+ Here is the call graph for this function:

◆ GetSbchnlFocContCodes()

uint8_t ns3::OfdmUcdChannelEncodings::GetSbchnlFocContCodes ( void  ) const

Get SB channel for control codes.

Returns
the channel for control codes

Definition at line 135 of file ul-mac-messages.cc.

References m_sbchnlFocContCodes.

◆ GetSbchnlReqRegionFullParams()

uint8_t ns3::OfdmUcdChannelEncodings::GetSbchnlReqRegionFullParams ( void  ) const

Get SB channel request region full parameters.

Returns
the channel request region full parameters

Definition at line 129 of file ul-mac-messages.cc.

References m_sbchnlReqRegionFullParams.

◆ GetSize()

uint16_t ns3::OfdmUcdChannelEncodings::GetSize ( void  ) const

Get size.

Returns
the size

Definition at line 141 of file ul-mac-messages.cc.

References ns3::UcdChannelEncodings::GetSize().

Referenced by ns3::Ucd::GetSerializedSize().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ SetSbchnlFocContCodes()

void ns3::OfdmUcdChannelEncodings::SetSbchnlFocContCodes ( uint8_t  sbchnlFocContCodes)

Set SB channel for control codes.

Parameters
sbchnlFocContCodesthe channel control codes

Definition at line 123 of file ul-mac-messages.cc.

References m_sbchnlFocContCodes.

Referenced by ns3::BaseStationNetDevice::CreateUcd().

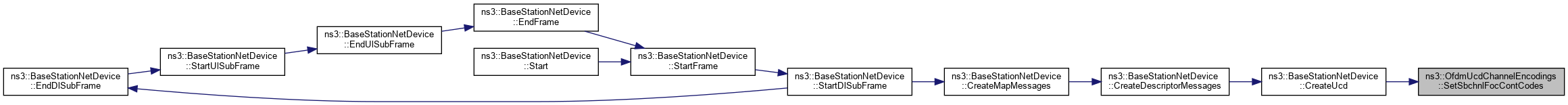

+ Here is the caller graph for this function:

◆ SetSbchnlReqRegionFullParams()

void ns3::OfdmUcdChannelEncodings::SetSbchnlReqRegionFullParams ( uint8_t  sbchnlReqRegionFullParams)

Set SB channel reguest region full parameters.

Parameters
sbchnlReqRegionFullParamsthe channel request region full parameters

Definition at line 116 of file ul-mac-messages.cc.

References m_sbchnlReqRegionFullParams.

Referenced by ns3::BaseStationNetDevice::CreateUcd().

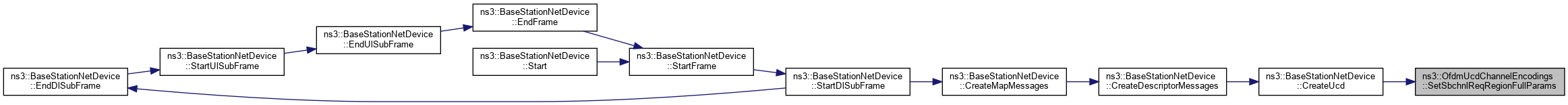

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_sbchnlFocContCodes

uint8_t ns3::OfdmUcdChannelEncodings::m_sbchnlFocContCodes
private

SB channel for control codes.

Definition at line 181 of file ul-mac-messages.h.

Referenced by DoRead(), DoWrite(), GetSbchnlFocContCodes(), and SetSbchnlFocContCodes().

◆ m_sbchnlReqRegionFullParams

uint8_t ns3::OfdmUcdChannelEncodings::m_sbchnlReqRegionFullParams
private

SB channel request region full parameters.

Definition at line 180 of file ul-mac-messages.h.

Referenced by DoRead(), DoWrite(), GetSbchnlReqRegionFullParams(), and SetSbchnlReqRegionFullParams().


The documentation for this class was generated from the following files:
