ns3::MgtAddBaResponseHeader Class Reference

Implement the header for management frames of type Add Block Ack response. More...

#include "mgt-headers.h"

+ Inheritance diagram for ns3::MgtAddBaResponseHeader:
+ Collaboration diagram for ns3::MgtAddBaResponseHeader:

Public Member Functions

 MgtAddBaResponseHeader ()

uint32_t Deserialize (Buffer::Iterator start)

uint16_t GetBufferSize (void) const
 Return the buffer size. More...

TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

uint32_t GetSerializedSize (void) const

StatusCode GetStatusCode (void) const
 Return the status code. More...

uint8_t GetTid (void) const
 Return the Traffic ID (TID). More...

uint16_t GetTimeout (void) const
 Return the timeout. More...

bool IsAmsduSupported (void) const
 Return whether A-MSDU capability is supported. More...

bool IsImmediateBlockAck (void) const
 Return whether the Block Ack policy is immediate Block Ack. More...

void Print (std::ostream &os) const

void Serialize (Buffer::Iterator start) const

void SetAmsduSupport (bool supported)
 Enable or disable A-MSDU support. More...

void SetBufferSize (uint16_t size)
 Set buffer size. More...

void SetDelayedBlockAck ()
 Enable delayed BlockAck. More...

void SetImmediateBlockAck ()
 Enable immediate BlockAck. More...

void SetStatusCode (StatusCode code)
 Set the status code. More...

void SetTid (uint8_t tid)
 Set Traffic ID (TID). More...

void SetTimeout (uint16_t timeout)
 Set timeout. More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator. More...

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::Chunk
virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

uint16_t GetParameterSet (void) const
 Return the raw parameter set. More...

void SetParameterSet (uint16_t params)
 Set the parameter set from the given raw value. More...


Private Attributes

uint8_t m_amsduSupport
 Flag if A-MSDU is supported. More...

uint16_t m_bufferSize
 Buffer size. More...

StatusCode m_code
 Status code. More...

uint8_t m_dialogToken
 Not used for now. More...

uint8_t m_policy
 Block ACK policy. More...

uint8_t m_tid
 Traffic ID. More...

uint16_t m_timeoutValue
 Timeout. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Implement the header for management frames of type Add Block Ack response.

Introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 24 bytes (on a 64-bit architecture).

Definition at line 1149 of file mgt-headers.h.

Constructor & Destructor Documentation

◆ MgtAddBaResponseHeader()

ns3::MgtAddBaResponseHeader::MgtAddBaResponseHeader ( )

Definition at line 1644 of file mgt-headers.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::MgtAddBaResponseHeader::Deserialize ( Buffer::Iterator  start)
virtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 1696 of file mgt-headers.cc.

References ns3::StatusCode::Deserialize(), ns3::Buffer::Iterator::GetDistanceFrom(), m_code, m_dialogToken, m_timeoutValue, ns3::Buffer::Iterator::ReadLsbtohU16(), ns3::Buffer::Iterator::ReadU8(), SetParameterSet(), and visualizer.core::start().

+ Here is the call graph for this function:

◆ GetBufferSize()

uint16_t ns3::MgtAddBaResponseHeader::GetBufferSize ( void  ) const

Return the buffer size.

Returns
the buffer size.

Definition at line 1774 of file mgt-headers.cc.

References m_bufferSize.

Referenced by ns3::HtFrameExchangeManager::CreateBlockAckAgreement(), and ns3::BlockAckManager::UpdateAgreement().

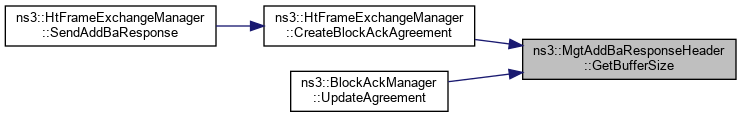

+ Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::MgtAddBaResponseHeader::GetInstanceTypeId ( void  ) const
virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 1663 of file mgt-headers.cc.

References GetTypeId().

+ Here is the call graph for this function:

◆ GetParameterSet()

uint16_t ns3::MgtAddBaResponseHeader::GetParameterSet ( void  ) const
private

Return the raw parameter set.

Returns
the raw parameter set

Definition at line 1786 of file mgt-headers.cc.

References m_amsduSupport, m_bufferSize, m_policy, and m_tid.

Referenced by Serialize().

+ Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::MgtAddBaResponseHeader::GetSerializedSize ( void  ) const
virtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 1675 of file mgt-headers.cc.

References ns3::StatusCode::GetSerializedSize(), and m_code.

+ Here is the call graph for this function:

◆ GetStatusCode()

StatusCode ns3::MgtAddBaResponseHeader::GetStatusCode ( void  ) const

Return the status code.

Returns
the status code

Definition at line 1750 of file mgt-headers.cc.

References m_code.

Referenced by ns3::QosTxop::GotAddBaResponse().

+ Here is the caller graph for this function:

◆ GetTid()

uint8_t ns3::MgtAddBaResponseHeader::GetTid ( void  ) const

Return the Traffic ID (TID).

Returns
TID

Definition at line 1756 of file mgt-headers.cc.

References m_tid.

Referenced by ns3::HtFrameExchangeManager::CreateBlockAckAgreement(), ns3::GetTid(), ns3::QosTxop::GotAddBaResponse(), ns3::WifiMac::Receive(), and ns3::BlockAckManager::UpdateAgreement().

+ Here is the caller graph for this function:

◆ GetTimeout()

uint16_t ns3::MgtAddBaResponseHeader::GetTimeout ( void  ) const

Return the timeout.

Returns
timeout

Definition at line 1768 of file mgt-headers.cc.

References m_timeoutValue.

Referenced by ns3::HtFrameExchangeManager::CreateBlockAckAgreement(), and ns3::BlockAckManager::UpdateAgreement().

+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::MgtAddBaResponseHeader::GetTypeId ( void  )
static

Register this type.

Returns
The TypeId.

Definition at line 1652 of file mgt-headers.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ IsAmsduSupported()

bool ns3::MgtAddBaResponseHeader::IsAmsduSupported ( void  ) const

Return whether A-MSDU capability is supported.

Returns
true is A-MSDU is supported, false otherwise

Definition at line 1780 of file mgt-headers.cc.

References m_amsduSupport.

Referenced by ns3::HtFrameExchangeManager::CreateBlockAckAgreement(), and ns3::BlockAckManager::UpdateAgreement().

+ Here is the caller graph for this function:

◆ IsImmediateBlockAck()

bool ns3::MgtAddBaResponseHeader::IsImmediateBlockAck ( void  ) const

Return whether the Block Ack policy is immediate Block Ack.

Returns
true if immediate Block Ack is being used, false otherwise

Definition at line 1762 of file mgt-headers.cc.

References m_policy.

Referenced by ns3::HtFrameExchangeManager::CreateBlockAckAgreement(), and ns3::BlockAckManager::UpdateAgreement().

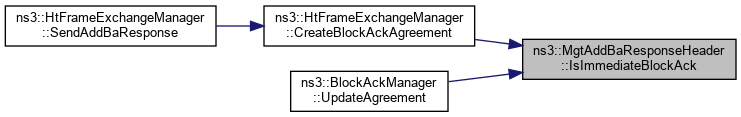

+ Here is the caller graph for this function:

◆ Print()

void ns3::MgtAddBaResponseHeader::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 1669 of file mgt-headers.cc.

References m_code.

◆ Serialize()

void ns3::MgtAddBaResponseHeader::Serialize ( Buffer::Iterator  start) const
virtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 1686 of file mgt-headers.cc.

References GetParameterSet(), m_code, m_dialogToken, m_timeoutValue, ns3::StatusCode::Serialize(), visualizer.core::start(), ns3::Buffer::Iterator::WriteHtolsbU16(), and ns3::Buffer::Iterator::WriteU8().

+ Here is the call graph for this function:

◆ SetAmsduSupport()

void ns3::MgtAddBaResponseHeader::SetAmsduSupport ( bool  supported)

Enable or disable A-MSDU support.

Parameters
supportedenable or disable A-MSDU support

Definition at line 1744 of file mgt-headers.cc.

References m_amsduSupport.

Referenced by AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), HeAggregationTest::DoRunSubTest(), and ns3::HtFrameExchangeManager::SendAddBaResponse().

+ Here is the caller graph for this function:

◆ SetBufferSize()

void ns3::MgtAddBaResponseHeader::SetBufferSize ( uint16_t  size)

Set buffer size.

Parameters
sizebuffer size

Definition at line 1732 of file mgt-headers.cc.

References m_bufferSize.

Referenced by AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), HeAggregationTest::DoRunSubTest(), and ns3::HtFrameExchangeManager::SendAddBaResponse().

+ Here is the caller graph for this function:

◆ SetDelayedBlockAck()

void ns3::MgtAddBaResponseHeader::SetDelayedBlockAck ( void  )

Enable delayed BlockAck.

Definition at line 1707 of file mgt-headers.cc.

References m_policy.

Referenced by ns3::HtFrameExchangeManager::SendAddBaResponse().

+ Here is the caller graph for this function:

◆ SetImmediateBlockAck()

void ns3::MgtAddBaResponseHeader::SetImmediateBlockAck ( void  )

Enable immediate BlockAck.

Definition at line 1713 of file mgt-headers.cc.

References m_policy.

Referenced by AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), HeAggregationTest::DoRunSubTest(), and ns3::HtFrameExchangeManager::SendAddBaResponse().

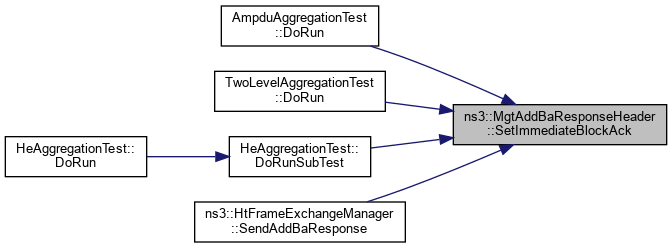

+ Here is the caller graph for this function:

◆ SetParameterSet()

void ns3::MgtAddBaResponseHeader::SetParameterSet ( uint16_t  params)
private

Set the parameter set from the given raw value.

Parameters
paramsraw parameter set value

Definition at line 1797 of file mgt-headers.cc.

References m_amsduSupport, m_bufferSize, m_policy, and m_tid.

Referenced by Deserialize().

+ Here is the caller graph for this function:

◆ SetStatusCode()

void ns3::MgtAddBaResponseHeader::SetStatusCode ( StatusCode  code)

Set the status code.

Parameters
codethe status code

Definition at line 1738 of file mgt-headers.cc.

References m_code.

Referenced by AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), HeAggregationTest::DoRunSubTest(), and ns3::HtFrameExchangeManager::SendAddBaResponse().

+ Here is the caller graph for this function:

◆ SetTid()

void ns3::MgtAddBaResponseHeader::SetTid ( uint8_t  tid)

Set Traffic ID (TID).

Parameters
tidtraffic ID

Definition at line 1719 of file mgt-headers.cc.

References m_tid, and NS_ASSERT.

Referenced by AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), HeAggregationTest::DoRunSubTest(), and ns3::HtFrameExchangeManager::SendAddBaResponse().

+ Here is the caller graph for this function:

◆ SetTimeout()

void ns3::MgtAddBaResponseHeader::SetTimeout ( uint16_t  timeout)

Set timeout.

Parameters
timeouttimeout

Definition at line 1726 of file mgt-headers.cc.

References m_timeoutValue, and timeout.

Referenced by AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), HeAggregationTest::DoRunSubTest(), and ns3::HtFrameExchangeManager::SendAddBaResponse().

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_amsduSupport

uint8_t ns3::MgtAddBaResponseHeader::m_amsduSupport
private

Flag if A-MSDU is supported.

Definition at line 1258 of file mgt-headers.h.

Referenced by GetParameterSet(), IsAmsduSupported(), SetAmsduSupport(), and SetParameterSet().

◆ m_bufferSize

uint16_t ns3::MgtAddBaResponseHeader::m_bufferSize
private

Buffer size.

Definition at line 1261 of file mgt-headers.h.

Referenced by GetBufferSize(), GetParameterSet(), SetBufferSize(), and SetParameterSet().

◆ m_code

StatusCode ns3::MgtAddBaResponseHeader::m_code
private

Status code.

Definition at line 1257 of file mgt-headers.h.

Referenced by Deserialize(), GetSerializedSize(), GetStatusCode(), Print(), Serialize(), and SetStatusCode().

◆ m_dialogToken

uint8_t ns3::MgtAddBaResponseHeader::m_dialogToken
private

Not used for now.

Definition at line 1256 of file mgt-headers.h.

Referenced by Deserialize(), and Serialize().

◆ m_policy

uint8_t ns3::MgtAddBaResponseHeader::m_policy
private

Block ACK policy.

Definition at line 1259 of file mgt-headers.h.

Referenced by GetParameterSet(), IsImmediateBlockAck(), SetDelayedBlockAck(), SetImmediateBlockAck(), and SetParameterSet().

◆ m_tid

uint8_t ns3::MgtAddBaResponseHeader::m_tid
private

Traffic ID.

Definition at line 1260 of file mgt-headers.h.

Referenced by GetParameterSet(), GetTid(), SetParameterSet(), and SetTid().

◆ m_timeoutValue

uint16_t ns3::MgtAddBaResponseHeader::m_timeoutValue
private

Timeout.

Definition at line 1262 of file mgt-headers.h.

Referenced by Deserialize(), GetTimeout(), Serialize(), and SetTimeout().


The documentation for this class was generated from the following files:
