Network layer to device interface. More...

#include "lr-wpan-net-device.h"

Inheritance diagram for ns3::LrWpanNetDevice:

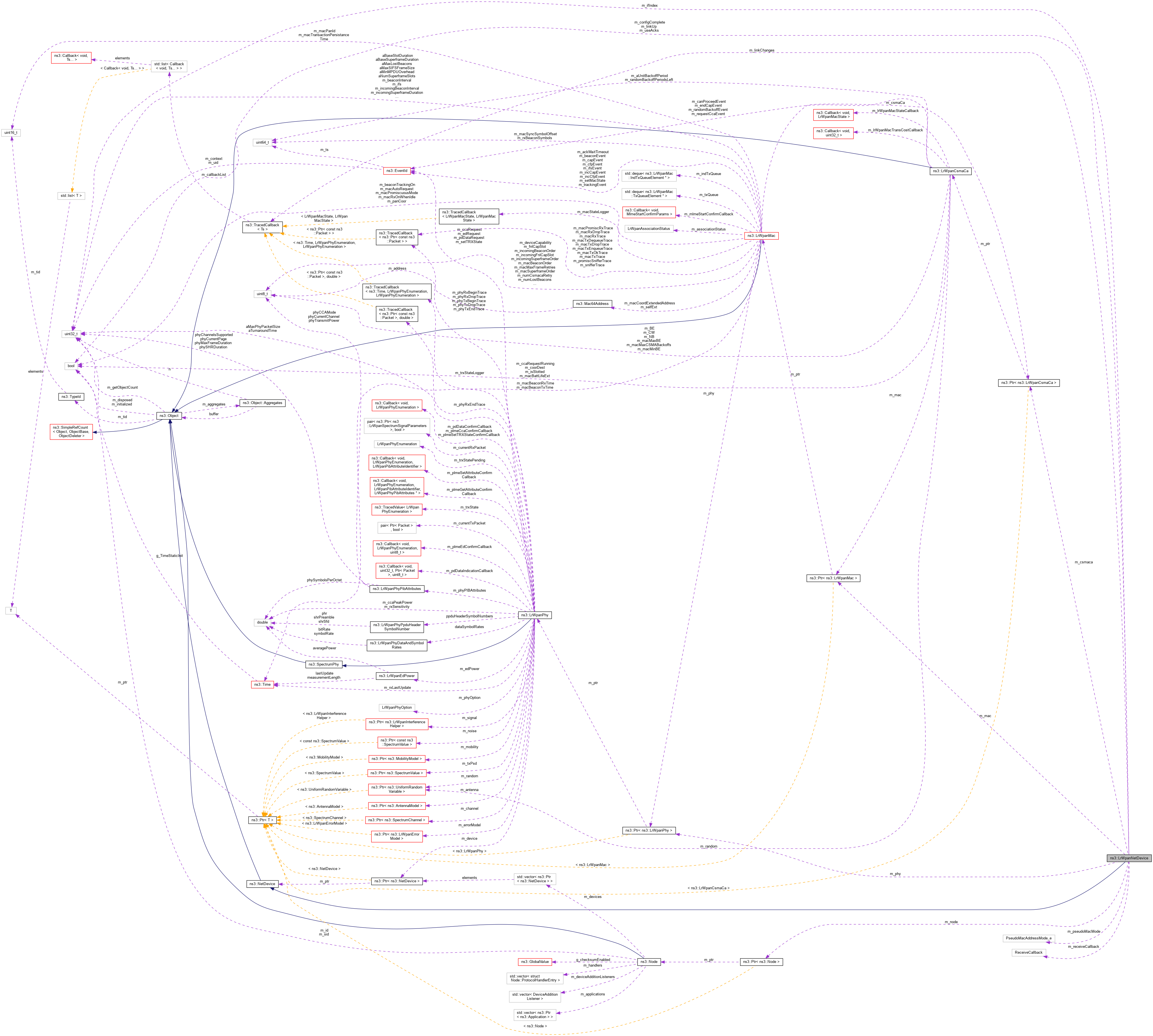

Collaboration diagram for ns3::LrWpanNetDevice:

Public Types
enum	PseudoMacAddressMode_e { RFC4944 , RFC6282 }
	How the pseudo-MAC address is built from the short address (XXXX) and the PanId (YYYY). More...

Public Types inherited from ns3::NetDevice
typedef void(*	LinkChangeTracedCallback) (void)
	TracedCallback signature for link changed event. More...

enum	PacketType { PACKET_HOST = 1 , NS3_PACKET_HOST = PACKET_HOST , PACKET_BROADCAST , NS3_PACKET_BROADCAST = PACKET_BROADCAST , PACKET_MULTICAST , NS3_PACKET_MULTICAST = PACKET_MULTICAST , PACKET_OTHERHOST , NS3_PACKET_OTHERHOST = PACKET_OTHERHOST }
	Packet types are used as they are in Linux. More...

typedef Callback< bool, Ptr< NetDevice >, Ptr< const Packet >, uint16_t, const Address &, const Address &, enum PacketType >	PromiscReceiveCallback

typedef Callback< bool, Ptr< NetDevice >, Ptr< const Packet >, uint16_t, const Address & >	ReceiveCallback

Public Member Functions
	LrWpanNetDevice (void)

virtual	~LrWpanNetDevice (void)

virtual void	AddLinkChangeCallback (Callback< void > callback)

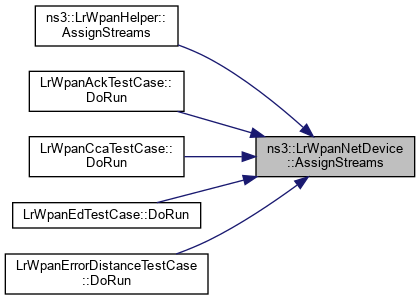

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

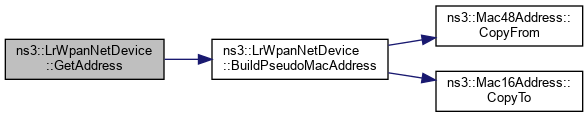

virtual Address	GetAddress (void) const
	This method indirects to LrWpanMac::SetShortAddress () More...

virtual Address	GetBroadcast (void) const

virtual Ptr< Channel >	GetChannel (void) const

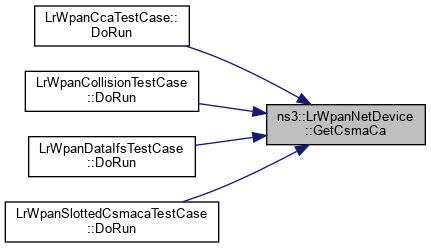

Ptr< LrWpanCsmaCa >	GetCsmaCa (void) const
	Get the CSMA/CA implementation used by this NetDevice. More...

virtual uint32_t	GetIfIndex (void) const

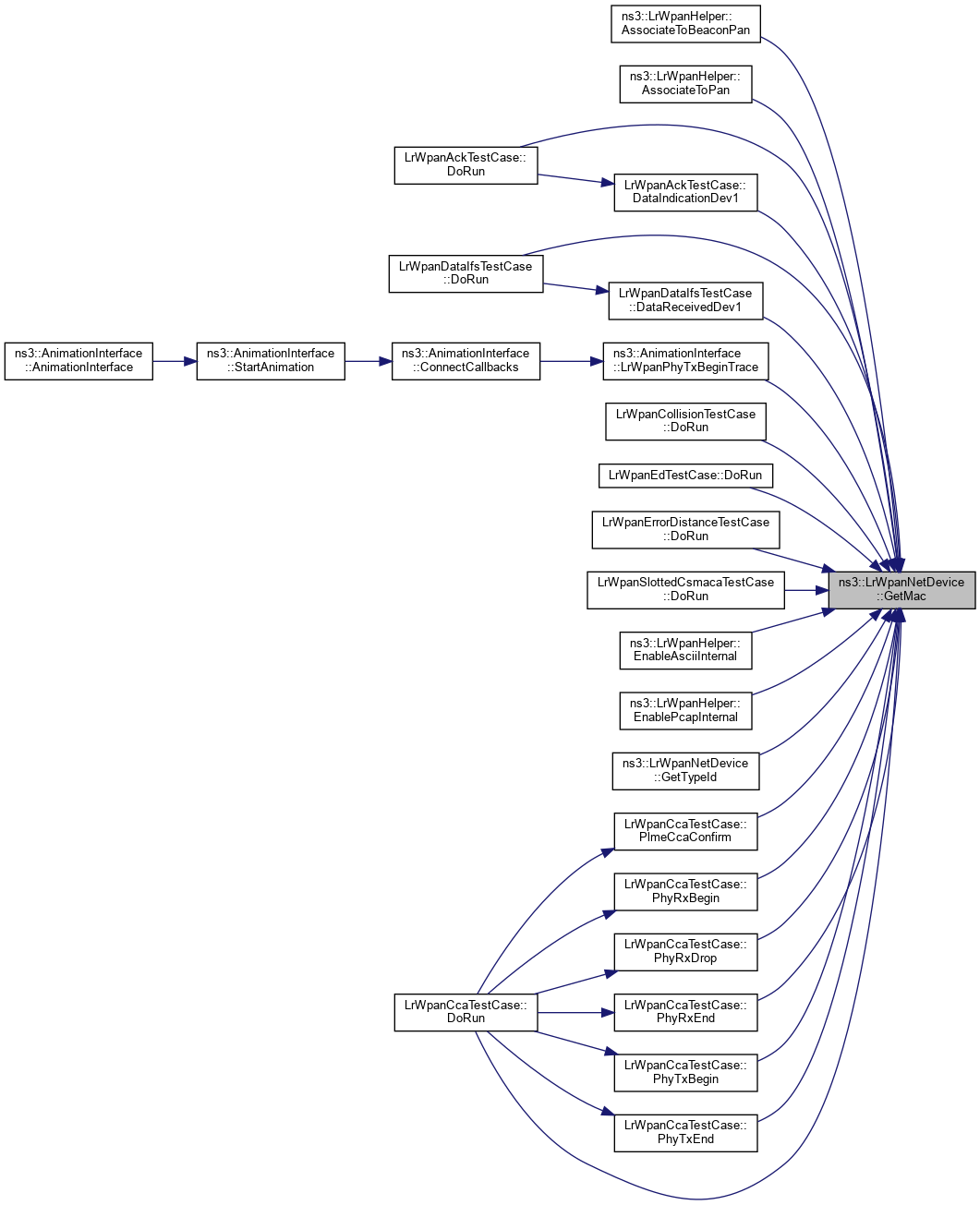

Ptr< LrWpanMac >	GetMac (void) const
	Get the MAC used by this NetDevice. More...

virtual uint16_t	GetMtu (void) const

virtual Address	GetMulticast (Ipv4Address multicastGroup) const
	Make and return a MAC multicast address using the provided multicast group. More...

virtual Address	GetMulticast (Ipv6Address addr) const
	Get the MAC multicast address corresponding to the IPv6 address provided. More...

virtual Ptr< Node >	GetNode (void) const

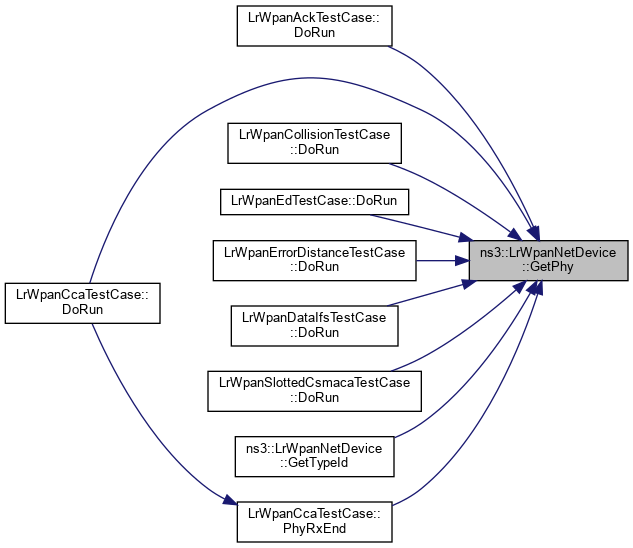

Ptr< LrWpanPhy >	GetPhy (void) const
	Get the PHY used by this NetDevice. More...

virtual bool	IsBridge (void) const
	Return true if the net device is acting as a bridge. More...

virtual bool	IsBroadcast (void) const

virtual bool	IsLinkUp (void) const

virtual bool	IsMulticast (void) const

virtual bool	IsPointToPoint (void) const
	Return true if the net device is on a point-to-point link. More...

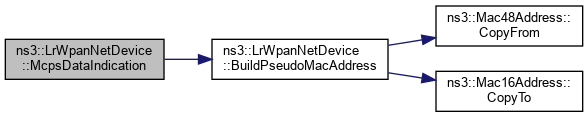

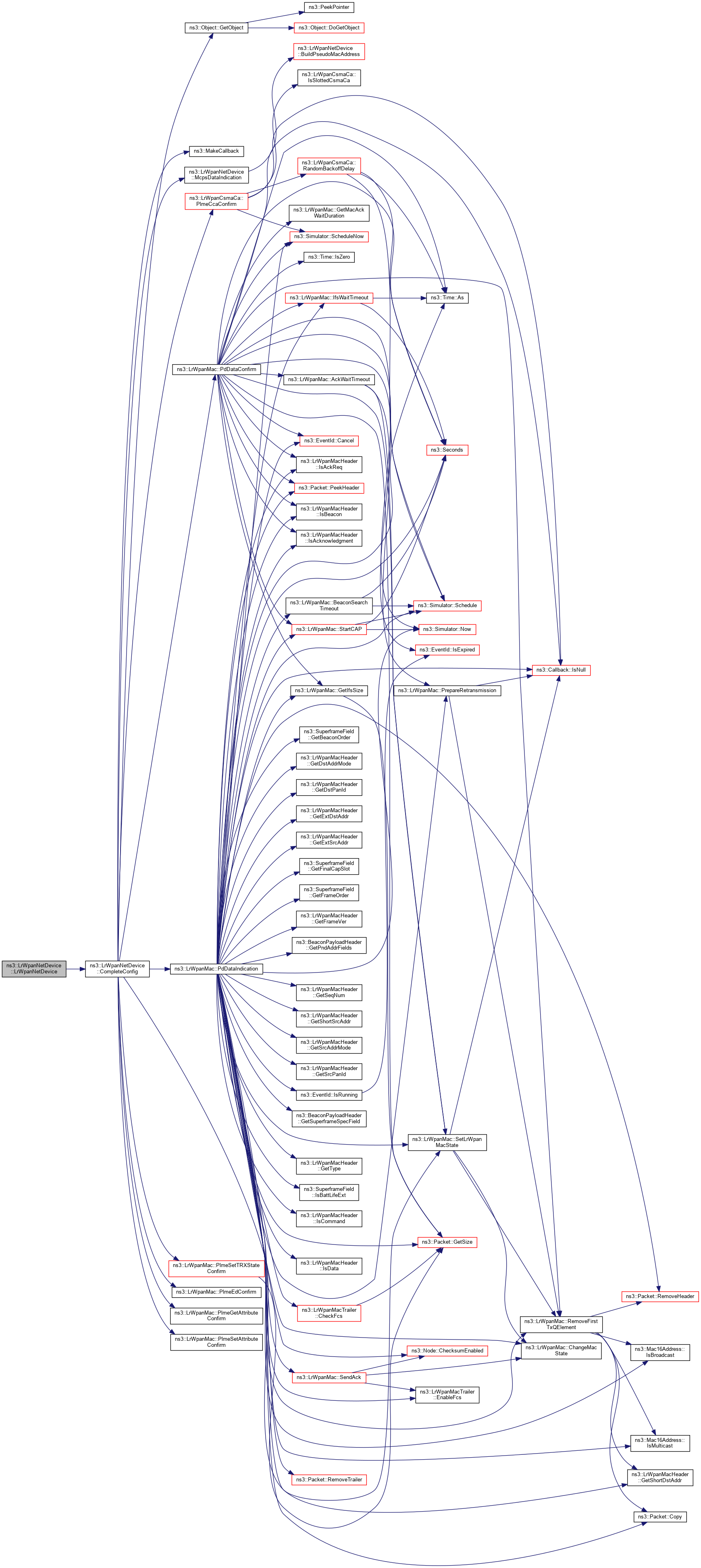

void	McpsDataIndication (McpsDataIndicationParams params, Ptr< Packet > pkt)
	The callback used by the MAC to hand over incoming packets to the NetDevice. More...

virtual bool	NeedsArp (void) const

virtual bool	Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber)

virtual bool	SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber)

virtual void	SetAddress (Address address)
	This method indirects to LrWpanMac::SetShortAddress () More...

void	SetChannel (Ptr< SpectrumChannel > channel)
	Set the channel to which the NetDevice, and therefore the PHY, should be attached to. More...

void	SetCsmaCa (Ptr< LrWpanCsmaCa > csmaca)
	Set the CSMA/CA implementation to be used by the MAC and this NetDevice. More...

virtual void	SetIfIndex (const uint32_t index)

void	SetMac (Ptr< LrWpanMac > mac)
	Set the MAC to be used by this NetDevice. More...

virtual bool	SetMtu (const uint16_t mtu)

virtual void	SetNode (Ptr< Node > node)

void	SetPhy (Ptr< LrWpanPhy > phy)
	Set the PHY to be used by the MAC and this NetDevice. More...

virtual void	SetPromiscReceiveCallback (PromiscReceiveCallback cb)

virtual void	SetReceiveCallback (NetDevice::ReceiveCallback cb)

virtual bool	SupportsSendFrom (void) const

Public Member Functions inherited from ns3::NetDevice
virtual	~NetDevice ()

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::NetDevice
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions

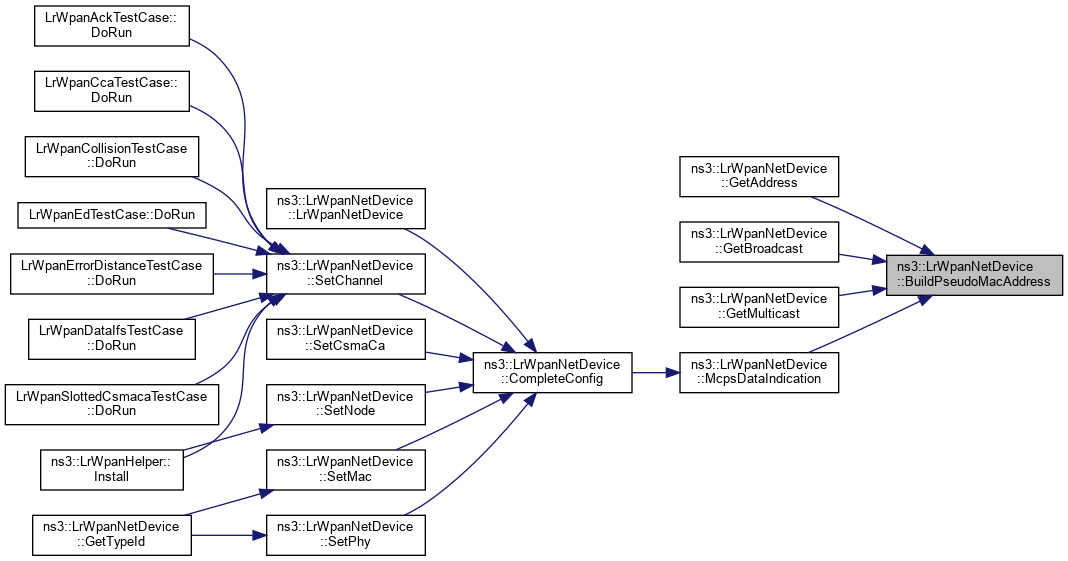

Mac48Address	BuildPseudoMacAddress (uint16_t panId, Mac16Address shortAddr) const
	Builds a "pseudo 48-bit address" from the PanId and Short Address The form is PanId : 0x0 : 0x0 : ShortAddress. More...

void	CompleteConfig (void)
	Configure PHY, MAC and CSMA/CA. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

Ptr< SpectrumChannel >	DoGetChannel (void) const
	Attribute accessor method for the "Channel" attribute. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

void	LinkDown (void)
	Mark NetDevice link as down. More...

void	LinkUp (void)
	Mark NetDevice link as up. More...

Private Attributes
bool	m_configComplete
	True if MAC, PHY and CSMA/CA where successfully configured and the NetDevice is ready for being used. More...

Ptr< LrWpanCsmaCa >	m_csmaca
	The CSMA/CA implementation for this NetDevice. More...

uint32_t	m_ifIndex
	The interface index of this NetDevice. More...

TracedCallback	m_linkChanges
	Trace source for link up/down changes. More...

bool	m_linkUp
	Is the link/device currently up and running? More...

Ptr< LrWpanMac >	m_mac
	The MAC for this NetDevice. More...

Ptr< Node >	m_node
	The node associated with this NetDevice. More...

Ptr< LrWpanPhy >	m_phy
	The PHY for this NetDevice. More...

PseudoMacAddressMode_e	m_pseudoMacMode
	How the pseudo MAC address is created. More...

ReceiveCallback	m_receiveCallback
	Upper layer callback used for notification of new data packet arrivals. More...

bool	m_useAcks
	Configure the NetDevice to request MAC layer acknowledgments when sending packets using the Send() API. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Network layer to device interface.

The ns3::NetDevice includes IP-specific API such as GetMulticast(), Send() and SendTo() methods, which do not map well the the 802.15.4 MAC MCPS DataRequest primitive. So, the basic design is to provide, as much as makes sense, the class ns3::NetDevice API, but rely on the user accessing the LrWpanMac pointer to make 802.15.4-specific API calls. As such, this is really just an encapsulating class.

Config Paths

ns3::LrWpanNetDevice is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::LrWpanNetDevice"

Attributes

Channel: The channel attached to this device
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::SpectrumChannel>
- Flags: read
Phy: The PHY layer attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::LrWpanPhy>
- Initial value: 0
- Flags: construct write read
Mac: The MAC layer attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::LrWpanMac>
- Initial value: 0
- Flags: construct write read
UseAcks: Request acknowledgments for data frames.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
PseudoMacAddressMode: Build the pseudo-MAC Address according to RFC 4944 or RFC 6282 (default: RFC 6282).
- Set with class: ns3::EnumValue
- Underlying type:
- Initial value: RFC 6282 (don't use PanId)
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 112 bytes (on a 64-bit architecture).

Definition at line 49 of file lr-wpan-net-device.h.

Member Enumeration Documentation

◆ PseudoMacAddressMode_e

enum ns3::LrWpanNetDevice::PseudoMacAddressMode_e

How the pseudo-MAC address is built from the short address (XXXX) and the PanId (YYYY).

See RFC 4944 and RFC 6282.

Enumerator
RFC4944	YYYY:0000:XXXX (with U/L bit set to local)
RFC6282	0200:0000:XXXX

Definition at line 68 of file lr-wpan-net-device.h.

Constructor & Destructor Documentation

◆ LrWpanNetDevice()

ns3::LrWpanNetDevice::LrWpanNetDevice ( void )

Definition at line 77 of file lr-wpan-net-device.cc.

References CompleteConfig(), m_csmaca, m_mac, m_phy, and NS_LOG_FUNCTION.

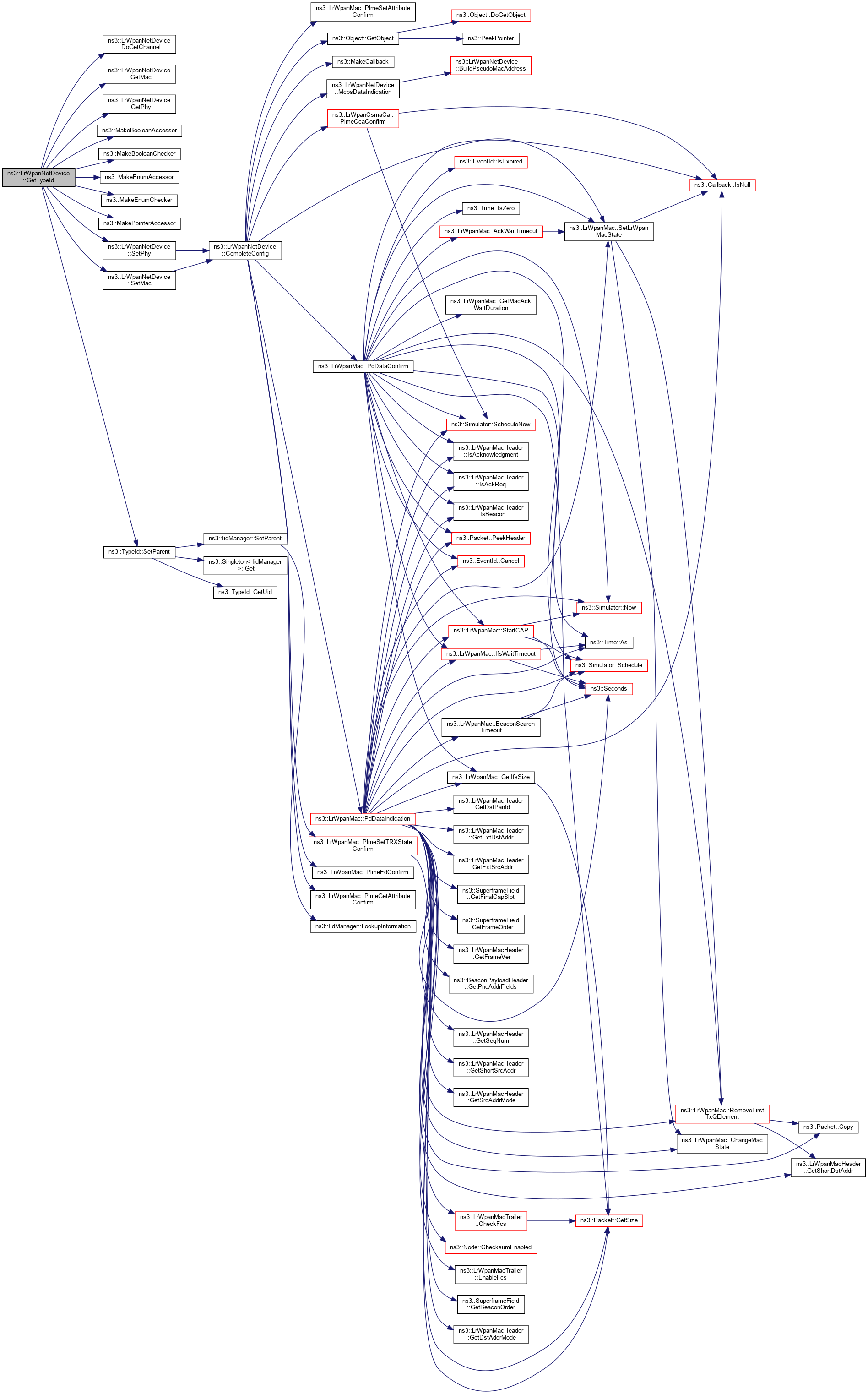

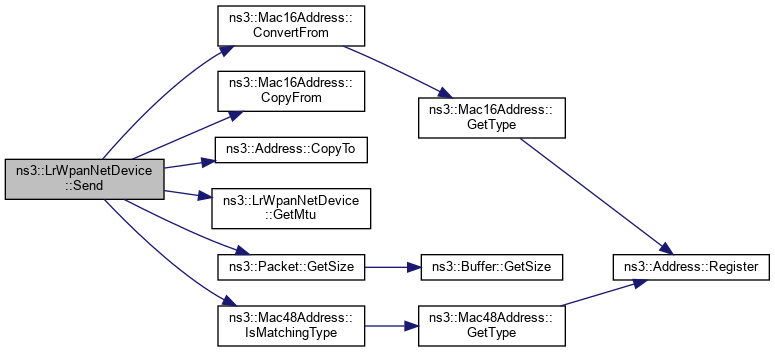

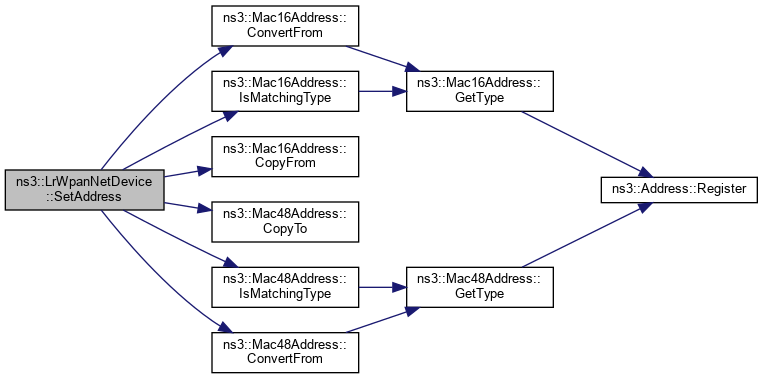

Here is the call graph for this function:

◆ ~LrWpanNetDevice()

ns3::LrWpanNetDevice::~LrWpanNetDevice ( void )

virtual

Definition at line 87 of file lr-wpan-net-device.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AddLinkChangeCallback()

void ns3::LrWpanNetDevice::AddLinkChangeCallback ( Callback< void > callback )

virtual

Parameters

callback the callback to invoke

Add a callback invoked whenever the link status changes to UP. This callback is typically used by the IP/ARP layer to flush the ARP cache and by IPv6 stack to flush NDISC cache whenever the link goes up.

Implements ns3::NetDevice.

Definition at line 324 of file lr-wpan-net-device.cc.

References ns3::TracedCallback< Ts >::ConnectWithoutContext(), m_linkChanges, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ AssignStreams()

int64_t ns3::LrWpanNetDevice::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 531 of file lr-wpan-net-device.cc.

References m_csmaca, m_phy, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::LrWpanHelper::AssignStreams(), LrWpanAckTestCase::DoRun(), LrWpanCcaTestCase::DoRun(), LrWpanEdTestCase::DoRun(), and LrWpanErrorDistanceTestCase::DoRun().

Here is the caller graph for this function:

◆ BuildPseudoMacAddress()

Mac48Address ns3::LrWpanNetDevice::BuildPseudoMacAddress	(	uint16_t	panId,
		Mac16Address	shortAddr
	)		const

private

Builds a "pseudo 48-bit address" from the PanId and Short Address The form is PanId : 0x0 : 0x0 : ShortAddress.

The address follows RFC 4944, section 6, and it is used to build an Interface ID.

The Interface ID should have its U/L bit is set to zero, to indicate that this interface ID is not globally unique. However, the U/L bit flipping is performed when the IPv6 address is created.

As a consequence, here we set it to 1.

Parameters

panId	The PanID
shortAddr	The Short MAC address

Returns: a Pseudo-Mac48Adress

Definition at line 501 of file lr-wpan-net-device.cc.

References ns3::Mac48Address::CopyFrom(), ns3::Mac16Address::CopyTo(), m_pseudoMacMode, NS_LOG_FUNCTION, and RFC4944.

Referenced by GetAddress(), GetBroadcast(), GetMulticast(), and McpsDataIndication().

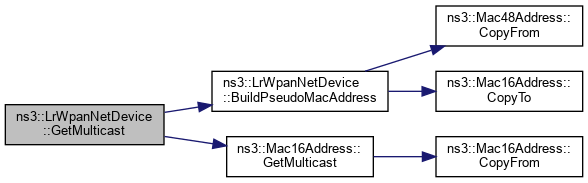

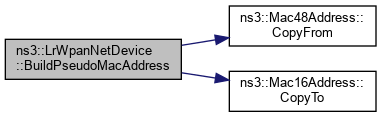

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CompleteConfig()

void ns3::LrWpanNetDevice::CompleteConfig ( void )

private

Configure PHY, MAC and CSMA/CA.

Definition at line 120 of file lr-wpan-net-device.cc.

References ns3::Object::GetObject(), m_configComplete, m_csmaca, m_mac, m_node, m_phy, ns3::MakeCallback(), McpsDataIndication(), third::mobility, NS_LOG_FUNCTION, NS_LOG_WARN, ns3::LrWpanMac::PdDataConfirm(), ns3::LrWpanMac::PdDataIndication(), ns3::LrWpanCsmaCa::PlmeCcaConfirm(), ns3::LrWpanMac::PlmeEdConfirm(), ns3::LrWpanMac::PlmeGetAttributeConfirm(), ns3::LrWpanMac::PlmeSetAttributeConfirm(), ns3::LrWpanMac::PlmeSetTRXStateConfirm(), and ns3::LrWpanMac::SetLrWpanMacState().

Referenced by LrWpanNetDevice(), SetChannel(), SetCsmaCa(), SetMac(), SetNode(), and SetPhy().

Here is the call graph for this function:

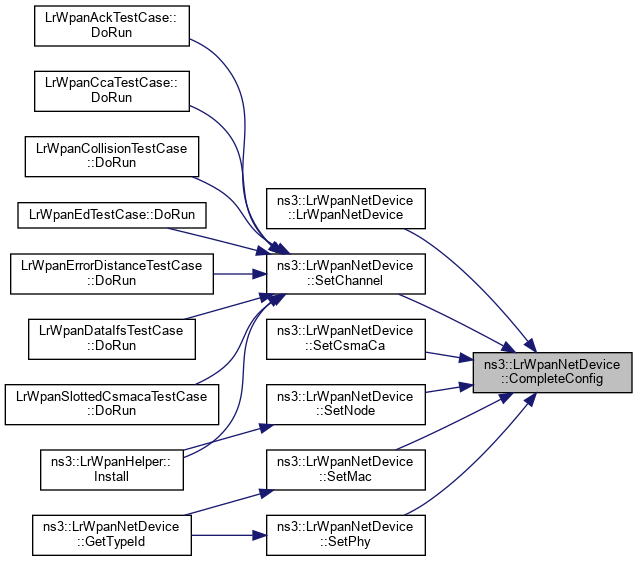

Here is the caller graph for this function:

◆ DoDispose()

void ns3::LrWpanNetDevice::DoDispose ( void )

privatevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 94 of file lr-wpan-net-device.cc.

References ns3::Object::DoDispose(), m_csmaca, m_mac, m_node, m_phy, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ DoGetChannel()

Ptr< SpectrumChannel > ns3::LrWpanNetDevice::DoGetChannel ( void ) const

private

Attribute accessor method for the "Channel" attribute.

Returns: the channel to which this NetDevice is attached

Definition at line 249 of file lr-wpan-net-device.cc.

References m_phy, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ DoInitialize()

void ns3::LrWpanNetDevice::DoInitialize ( void )

privatevirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 110 of file lr-wpan-net-device.cc.

References ns3::Object::DoInitialize(), m_mac, m_phy, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetAddress()

Address ns3::LrWpanNetDevice::GetAddress ( void ) const

virtual

This method indirects to LrWpanMac::SetShortAddress ()

Returns: The short address.

Implements ns3::NetDevice.

Definition at line 284 of file lr-wpan-net-device.cc.

References BuildPseudoMacAddress(), m_mac, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetBroadcast()

Address ns3::LrWpanNetDevice::GetBroadcast ( void ) const

virtual

Returns: the broadcast address supported by this netdevice.

Calling this method is invalid if IsBroadcast returns not true.

Implements ns3::NetDevice.

Definition at line 338 of file lr-wpan-net-device.cc.

References BuildPseudoMacAddress(), ns3::Mac16Address::GetBroadcast(), m_mac, and NS_LOG_FUNCTION.

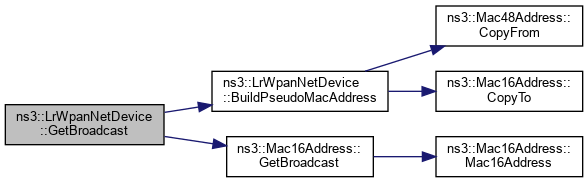

Here is the call graph for this function:

◆ GetChannel()

Ptr< Channel > ns3::LrWpanNetDevice::GetChannel ( void ) const

virtual

Returns: the channel this NetDevice is connected to. The value returned can be zero if the NetDevice is not yet connected to any channel or if the underlying NetDevice has no concept of a channel. i.e., callers must check for zero and be ready to handle it.

Implements ns3::NetDevice.

Definition at line 226 of file lr-wpan-net-device.cc.

References m_phy, and NS_LOG_FUNCTION.

◆ GetCsmaCa()

Ptr< LrWpanCsmaCa > ns3::LrWpanNetDevice::GetCsmaCa ( void ) const

Get the CSMA/CA implementation used by this NetDevice.

Returns: the CSMA/CA implementation object

Definition at line 206 of file lr-wpan-net-device.cc.

References m_csmaca, and NS_LOG_FUNCTION.

Referenced by LrWpanCcaTestCase::DoRun(), LrWpanCollisionTestCase::DoRun(), LrWpanDataIfsTestCase::DoRun(), and LrWpanSlottedCsmacaTestCase::DoRun().

Here is the caller graph for this function:

◆ GetIfIndex()

uint32_t ns3::LrWpanNetDevice::GetIfIndex ( void ) const

virtual

Returns: index ifIndex of the device

Implements ns3::NetDevice.

Definition at line 219 of file lr-wpan-net-device.cc.

References m_ifIndex, and NS_LOG_FUNCTION.

◆ GetMac()

Ptr< LrWpanMac > ns3::LrWpanNetDevice::GetMac ( void ) const

Get the MAC used by this NetDevice.

Returns: the MAC object

Definition at line 192 of file lr-wpan-net-device.cc.

References m_mac.

Referenced by ns3::LrWpanHelper::AssociateToBeaconPan(), ns3::LrWpanHelper::AssociateToPan(), LrWpanAckTestCase::DataIndicationDev1(), LrWpanDataIfsTestCase::DataReceivedDev1(), LrWpanAckTestCase::DoRun(), LrWpanCcaTestCase::DoRun(), LrWpanCollisionTestCase::DoRun(), LrWpanEdTestCase::DoRun(), LrWpanErrorDistanceTestCase::DoRun(), LrWpanDataIfsTestCase::DoRun(), LrWpanSlottedCsmacaTestCase::DoRun(), ns3::LrWpanHelper::EnableAsciiInternal(), ns3::LrWpanHelper::EnablePcapInternal(), GetTypeId(), ns3::AnimationInterface::LrWpanPhyTxBeginTrace(), LrWpanCcaTestCase::PhyRxBegin(), LrWpanCcaTestCase::PhyRxDrop(), LrWpanCcaTestCase::PhyRxEnd(), LrWpanCcaTestCase::PhyTxBegin(), LrWpanCcaTestCase::PhyTxEnd(), and LrWpanCcaTestCase::PlmeCcaConfirm().

Here is the caller graph for this function:

◆ GetMtu()

uint16_t ns3::LrWpanNetDevice::GetMtu ( void ) const

virtual

Returns: the link-level MTU in bytes for this interface.

This value is typically used by the IP layer to perform IP fragmentation when needed.

Implements ns3::NetDevice.

Definition at line 306 of file lr-wpan-net-device.cc.

References NS_LOG_FUNCTION.

Referenced by Send().

Here is the caller graph for this function:

◆ GetMulticast() [1/2]

Address ns3::LrWpanNetDevice::GetMulticast ( Ipv4Address multicastGroup ) const

virtual

Make and return a MAC multicast address using the provided multicast group.

RFC 1112 says that an Ipv4 host group address is mapped to an Ethernet multicast address by placing the low-order 23-bits of the IP address into the low-order 23 bits of the Ethernet multicast address 01-00-5E-00-00-00 (hex). Similar RFCs exist for Ipv6 and Eui64 mappings. This method performs the multicast address creation function appropriate to the underlying MAC address of the device. This MAC address is encapsulated in an abstract Address to avoid dependencies on the exact MAC address format.

In the case of net devices that do not support multicast, clients are expected to test NetDevice::IsMulticast and avoid attempting to map multicast packets. Subclasses of NetDevice that do support multicasting are expected to override this method and provide an implementation appropriate to the particular device.

Parameters

multicastGroup The IP address for the multicast group destination of the packet.

Returns: The MAC multicast Address used to send packets to the provided multicast group.

Warning: Calling this method is invalid if IsMulticast returns not true.

See also: IsMulticast()

Implements ns3::NetDevice.

Definition at line 355 of file lr-wpan-net-device.cc.

References NS_ABORT_MSG.

◆ GetMulticast() [2/2]

Address ns3::LrWpanNetDevice::GetMulticast ( Ipv6Address addr ) const

virtual

Get the MAC multicast address corresponding to the IPv6 address provided.

Parameters

addr	IPv6 address

Returns: the MAC multicast address

Warning: Calling this method is invalid if IsMulticast returns not true.

Implements ns3::NetDevice.

Definition at line 362 of file lr-wpan-net-device.cc.

References BuildPseudoMacAddress(), ns3::Mac16Address::GetMulticast(), m_mac, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetNode()

Ptr< Node > ns3::LrWpanNetDevice::GetNode ( void ) const

virtual

Returns: the node base class which contains this network interface.

When a subclass needs to get access to the underlying node base class to print the nodeid for example, it can invoke this method.

Implements ns3::NetDevice.

Definition at line 438 of file lr-wpan-net-device.cc.

References m_node, and NS_LOG_FUNCTION.

◆ GetPhy()

Ptr< LrWpanPhy > ns3::LrWpanNetDevice::GetPhy ( void ) const

Get the PHY used by this NetDevice.

Returns: the PHY object

Definition at line 199 of file lr-wpan-net-device.cc.

References m_phy, and NS_LOG_FUNCTION.

Referenced by LrWpanAckTestCase::DoRun(), LrWpanCcaTestCase::DoRun(), LrWpanCollisionTestCase::DoRun(), LrWpanEdTestCase::DoRun(), LrWpanErrorDistanceTestCase::DoRun(), LrWpanDataIfsTestCase::DoRun(), LrWpanSlottedCsmacaTestCase::DoRun(), GetTypeId(), and LrWpanCcaTestCase::PhyRxEnd().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::LrWpanNetDevice::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 44 of file lr-wpan-net-device.cc.

References DoGetChannel(), GetMac(), GetPhy(), m_pseudoMacMode, m_useAcks, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeEnumAccessor(), ns3::MakeEnumChecker(), ns3::MakePointerAccessor(), RFC4944, RFC6282, SetMac(), ns3::TypeId::SetParent(), and SetPhy().

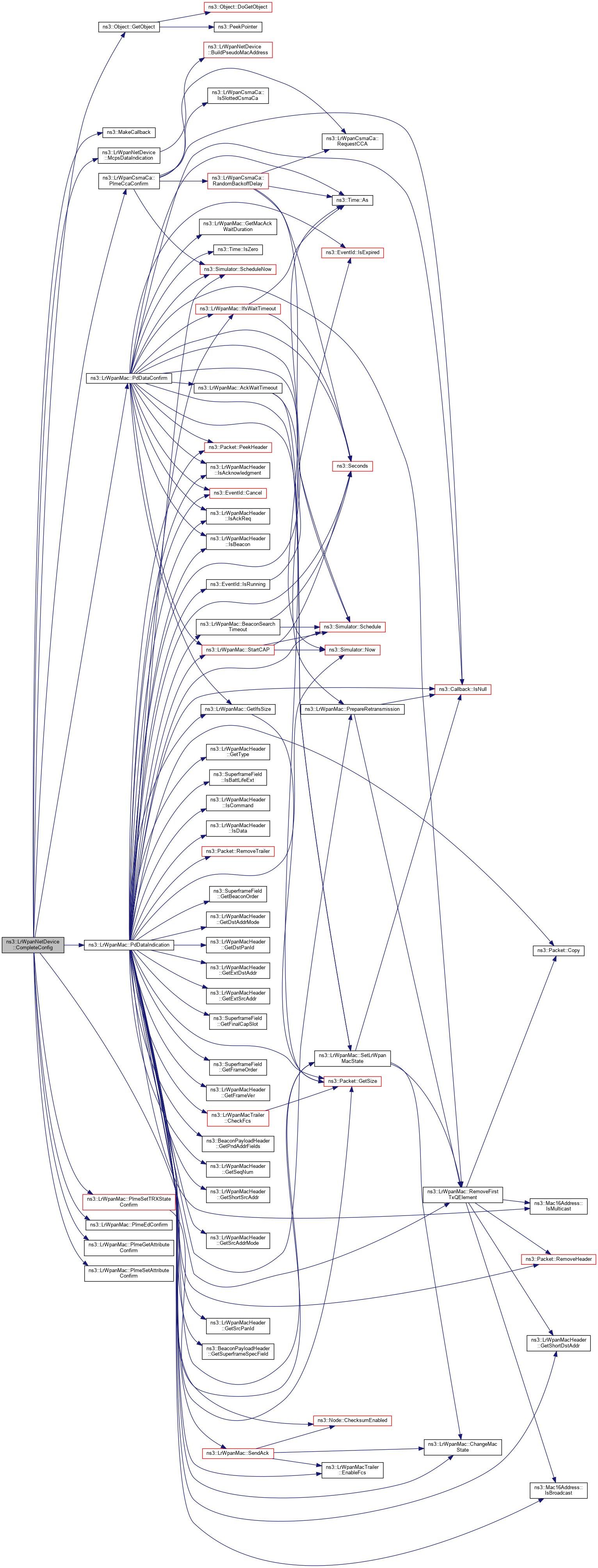

Here is the call graph for this function:

◆ IsBridge()

bool ns3::LrWpanNetDevice::IsBridge ( void ) const

virtual

Return true if the net device is acting as a bridge.

Returns: value of m_isBridge flag

Implements ns3::NetDevice.

Definition at line 372 of file lr-wpan-net-device.cc.

References NS_LOG_FUNCTION.

◆ IsBroadcast()

bool ns3::LrWpanNetDevice::IsBroadcast ( void ) const

virtual

Returns: true if this interface supports a broadcast address, false otherwise.

Implements ns3::NetDevice.

Definition at line 331 of file lr-wpan-net-device.cc.

References NS_LOG_FUNCTION.

◆ IsLinkUp()

bool ns3::LrWpanNetDevice::IsLinkUp ( void ) const

virtual

Returns: true if link is up; false otherwise

Implements ns3::NetDevice.

Definition at line 317 of file lr-wpan-net-device.cc.

References m_linkUp, m_phy, and NS_LOG_FUNCTION.

◆ IsMulticast()

bool ns3::LrWpanNetDevice::IsMulticast ( void ) const

virtual

Returns: value of m_isMulticast flag

Implements ns3::NetDevice.

Definition at line 348 of file lr-wpan-net-device.cc.

References NS_LOG_FUNCTION.

◆ IsPointToPoint()

bool ns3::LrWpanNetDevice::IsPointToPoint ( void ) const

virtual

Return true if the net device is on a point-to-point link.

Returns: value of m_isPointToPoint flag

Implements ns3::NetDevice.

Definition at line 379 of file lr-wpan-net-device.cc.

References NS_LOG_FUNCTION.

◆ LinkDown()

void ns3::LrWpanNetDevice::LinkDown ( void )

private

Mark NetDevice link as down.

Definition at line 241 of file lr-wpan-net-device.cc.

References m_linkChanges, m_linkUp, and NS_LOG_FUNCTION.

◆ LinkUp()

void ns3::LrWpanNetDevice::LinkUp ( void )

private

Mark NetDevice link as up.

Definition at line 233 of file lr-wpan-net-device.cc.

References m_linkChanges, m_linkUp, and NS_LOG_FUNCTION.

◆ McpsDataIndication()

void ns3::LrWpanNetDevice::McpsDataIndication	(	McpsDataIndicationParams	params,
		Ptr< Packet >	pkt
	)

The callback used by the MAC to hand over incoming packets to the NetDevice.

This callback will in turn use the ReceiveCallback set by SetReceiveCallback() to notify upper layers.

Parameters

params	802.15.4 specific parameters, including source and destination addresses
pkt	the packet do be delivered

Definition at line 478 of file lr-wpan-net-device.cc.

References BuildPseudoMacAddress(), ns3::McpsDataIndicationParams::m_dstAddrMode, m_receiveCallback, ns3::McpsDataIndicationParams::m_srcAddr, ns3::McpsDataIndicationParams::m_srcExtAddr, ns3::McpsDataIndicationParams::m_srcPanId, NS_LOG_FUNCTION, and ns3::SHORT_ADDR.

Referenced by CompleteConfig().

Here is the call graph for this function:

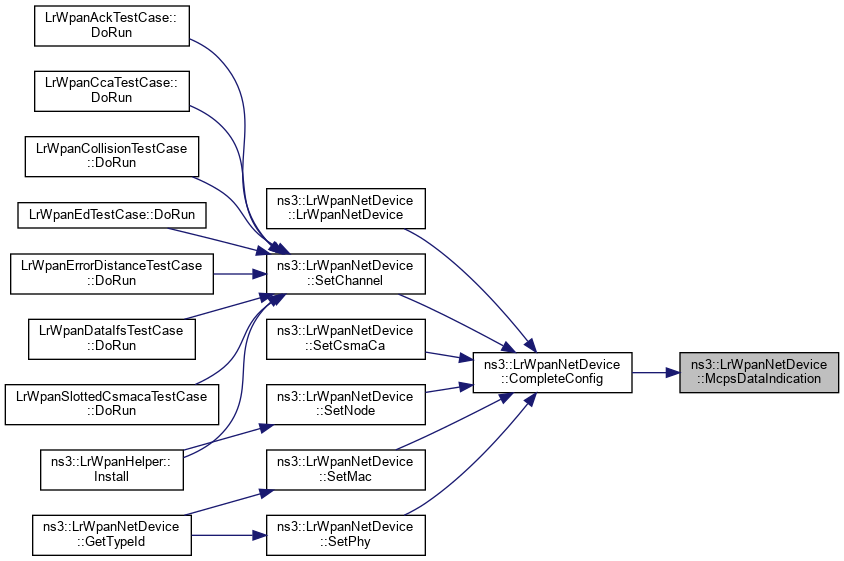

Here is the caller graph for this function:

◆ NeedsArp()

bool ns3::LrWpanNetDevice::NeedsArp ( void ) const

virtual

Returns: true if ARP is needed, false otherwise.

Called by higher-layers to check if this NetDevice requires ARP to be used.

Implements ns3::NetDevice.

Definition at line 453 of file lr-wpan-net-device.cc.

References NS_LOG_FUNCTION.

◆ Send()

bool ns3::LrWpanNetDevice::Send	(	Ptr< Packet >	packet,
		const Address &	dest,
		uint16_t	protocolNumber
	)

virtual

Parameters

packet	packet sent from above down to Network Device
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device to the specified destination Address

Returns: whether the Send operation succeeded

Implements ns3::NetDevice.

Definition at line 386 of file lr-wpan-net-device.cc.

References ns3::Mac16Address::ConvertFrom(), ns3::Mac16Address::CopyFrom(), ns3::Address::CopyTo(), GetMtu(), ns3::Packet::GetSize(), ns3::Mac48Address::IsMatchingType(), ns3::McpsDataRequestParams::m_dstAddr, ns3::McpsDataRequestParams::m_dstAddrMode, ns3::McpsDataRequestParams::m_dstPanId, m_mac, ns3::McpsDataRequestParams::m_msduHandle, ns3::McpsDataRequestParams::m_srcAddrMode, ns3::McpsDataRequestParams::m_txOptions, m_useAcks, NS_LOG_ERROR, NS_LOG_FUNCTION, ns3::SHORT_ADDR, and ns3::TX_OPTION_ACK.

Here is the call graph for this function:

◆ SendFrom()

bool ns3::LrWpanNetDevice::SendFrom	(	Ptr< Packet >	packet,
		const Address &	source,
		const Address &	dest,
		uint16_t	protocolNumber
	)

virtual

Parameters

packet	packet sent from above down to Network Device
source	source mac address (so called "MAC spoofing")
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device with the specified source and destination Addresses.

Returns: whether the Send operation succeeded

Implements ns3::NetDevice.

Definition at line 430 of file lr-wpan-net-device.cc.

References NS_ABORT_MSG.

◆ SetAddress()

void ns3::LrWpanNetDevice::SetAddress ( Address address )

virtual

This method indirects to LrWpanMac::SetShortAddress ()

Parameters

address The short address.

Implements ns3::NetDevice.

Definition at line 256 of file lr-wpan-net-device.cc.

References first::address, ns3::Mac16Address::ConvertFrom(), ns3::Mac48Address::ConvertFrom(), ns3::Mac16Address::CopyFrom(), ns3::Mac48Address::CopyTo(), ns3::Mac16Address::IsMatchingType(), ns3::Mac48Address::IsMatchingType(), m_mac, NS_ABORT_MSG, and NS_LOG_FUNCTION.

Referenced by LrWpanAckTestCase::DoRun(), LrWpanCcaTestCase::DoRun(), LrWpanCollisionTestCase::DoRun(), LrWpanEdTestCase::DoRun(), LrWpanErrorDistanceTestCase::DoRun(), LrWpanDataIfsTestCase::DoRun(), and LrWpanSlottedCsmacaTestCase::DoRun().

Here is the call graph for this function:

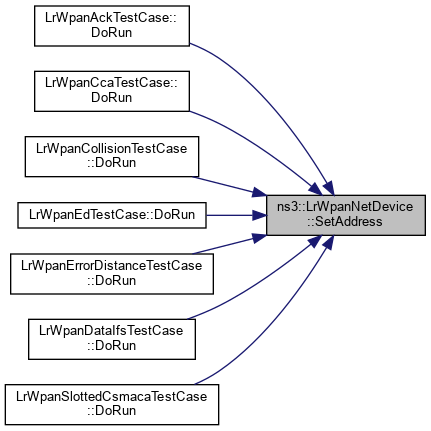

Here is the caller graph for this function:

◆ SetChannel()

void ns3::LrWpanNetDevice::SetChannel ( Ptr< SpectrumChannel > channel )

Set the channel to which the NetDevice, and therefore the PHY, should be attached to.

Parameters

channel the channel to be used

Definition at line 183 of file lr-wpan-net-device.cc.

References third::channel, CompleteConfig(), m_phy, and NS_LOG_FUNCTION.

Referenced by LrWpanAckTestCase::DoRun(), LrWpanCcaTestCase::DoRun(), LrWpanCollisionTestCase::DoRun(), LrWpanEdTestCase::DoRun(), LrWpanErrorDistanceTestCase::DoRun(), LrWpanDataIfsTestCase::DoRun(), LrWpanSlottedCsmacaTestCase::DoRun(), and ns3::LrWpanHelper::Install().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetCsmaCa()

void ns3::LrWpanNetDevice::SetCsmaCa ( Ptr< LrWpanCsmaCa > csmaca )

Set the CSMA/CA implementation to be used by the MAC and this NetDevice.

Parameters

csmaca the CSMA/CA implementation to be used

Definition at line 175 of file lr-wpan-net-device.cc.

References CompleteConfig(), m_csmaca, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ SetIfIndex()

void ns3::LrWpanNetDevice::SetIfIndex ( const uint32_t index )

virtual

Parameters

index ifIndex of the device

Implements ns3::NetDevice.

Definition at line 212 of file lr-wpan-net-device.cc.

References m_ifIndex, and NS_LOG_FUNCTION.

◆ SetMac()

void ns3::LrWpanNetDevice::SetMac ( Ptr< LrWpanMac > mac )

Set the MAC to be used by this NetDevice.

Parameters

mac	the MAC to be used

Definition at line 159 of file lr-wpan-net-device.cc.

References CompleteConfig(), m_mac, third::mac, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetMtu()

bool ns3::LrWpanNetDevice::SetMtu ( const uint16_t mtu )

virtual

Parameters

mtu	MTU value, in bytes, to set for the device

Returns: whether the MTU value was within legal bounds

Override for default MTU defined on a per-type basis.

Implements ns3::NetDevice.

Definition at line 299 of file lr-wpan-net-device.cc.

References NS_ABORT_MSG.

◆ SetNode()

void ns3::LrWpanNetDevice::SetNode ( Ptr< Node > node )

virtual

Parameters

node	the node associated to this netdevice.

This method is called from ns3::Node::AddDevice.

Implements ns3::NetDevice.

Definition at line 445 of file lr-wpan-net-device.cc.

References CompleteConfig(), m_node, and NS_LOG_FUNCTION.

Referenced by ns3::LrWpanHelper::Install().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetPhy()

void ns3::LrWpanNetDevice::SetPhy ( Ptr< LrWpanPhy > phy )

Set the PHY to be used by the MAC and this NetDevice.

Parameters

phy	the PHY to be used

Definition at line 167 of file lr-wpan-net-device.cc.

References CompleteConfig(), m_phy, NS_LOG_FUNCTION, and third::phy.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetPromiscReceiveCallback()

void ns3::LrWpanNetDevice::SetPromiscReceiveCallback ( PromiscReceiveCallback cb )

virtual

Parameters

cb	callback to invoke whenever a packet has been received in promiscuous mode and must be forwarded to the higher layers.

Enables netdevice promiscuous mode and sets the callback that will handle promiscuous mode packets. Note, promiscuous mode packets means all packets, including those packets that can be sensed by the netdevice but which are intended to be received by other hosts.

Implements ns3::NetDevice.

Definition at line 467 of file lr-wpan-net-device.cc.

References NS_LOG_WARN.

◆ SetReceiveCallback()

void ns3::LrWpanNetDevice::SetReceiveCallback ( NetDevice::ReceiveCallback cb )

virtual

Parameters

cb	callback to invoke whenever a packet has been received and must be forwarded to the higher layers.

Set the callback to be used to notify higher layers when a packet has been received.

Implements ns3::NetDevice.

Definition at line 460 of file lr-wpan-net-device.cc.

References m_receiveCallback, and NS_LOG_FUNCTION.

◆ SupportsSendFrom()

bool ns3::LrWpanNetDevice::SupportsSendFrom ( void ) const

virtual

Returns: true if this interface supports a bridging mode, false otherwise.

Implements ns3::NetDevice.

Definition at line 494 of file lr-wpan-net-device.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Data Documentation

◆ m_configComplete

bool ns3::LrWpanNetDevice::m_configComplete

private

True if MAC, PHY and CSMA/CA where successfully configured and the NetDevice is ready for being used.

Definition at line 247 of file lr-wpan-net-device.h.

Referenced by CompleteConfig().

◆ m_csmaca

Ptr<LrWpanCsmaCa> ns3::LrWpanNetDevice::m_csmaca

private

The CSMA/CA implementation for this NetDevice.

Definition at line 236 of file lr-wpan-net-device.h.

Referenced by LrWpanNetDevice(), AssignStreams(), CompleteConfig(), DoDispose(), GetCsmaCa(), and SetCsmaCa().

◆ m_ifIndex

uint32_t ns3::LrWpanNetDevice::m_ifIndex

private

The interface index of this NetDevice.

Definition at line 263 of file lr-wpan-net-device.h.

Referenced by GetIfIndex(), and SetIfIndex().

◆ m_linkChanges

TracedCallback ns3::LrWpanNetDevice::m_linkChanges

private

Trace source for link up/down changes.

Definition at line 268 of file lr-wpan-net-device.h.

Referenced by AddLinkChangeCallback(), LinkDown(), and LinkUp().

◆ m_linkUp

bool ns3::LrWpanNetDevice::m_linkUp

private

Is the link/device currently up and running?

Definition at line 258 of file lr-wpan-net-device.h.

Referenced by IsLinkUp(), LinkDown(), and LinkUp().

◆ m_mac

Ptr<LrWpanMac> ns3::LrWpanNetDevice::m_mac

private

The MAC for this NetDevice.

Definition at line 226 of file lr-wpan-net-device.h.

Referenced by LrWpanNetDevice(), CompleteConfig(), DoDispose(), DoInitialize(), GetAddress(), GetBroadcast(), GetMac(), GetMulticast(), Send(), SetAddress(), and SetMac().

◆ m_node

Ptr<Node> ns3::LrWpanNetDevice::m_node

private

The node associated with this NetDevice.

Definition at line 241 of file lr-wpan-net-device.h.

Referenced by CompleteConfig(), DoDispose(), GetNode(), and SetNode().

◆ m_phy

Ptr<LrWpanPhy> ns3::LrWpanNetDevice::m_phy

private

The PHY for this NetDevice.

Definition at line 231 of file lr-wpan-net-device.h.

Referenced by LrWpanNetDevice(), AssignStreams(), CompleteConfig(), DoDispose(), DoGetChannel(), DoInitialize(), GetChannel(), GetPhy(), IsLinkUp(), SetChannel(), and SetPhy().

◆ m_pseudoMacMode

PseudoMacAddressMode_e ns3::LrWpanNetDevice::m_pseudoMacMode

private

How the pseudo MAC address is created.

According to RFC 4944 the psudo-MAC is YYYY:0000:XXXX (with U/L bit set to local) According to RFC 6282 the psudo-MAC is 0200:0000:XXXX

Definition at line 281 of file lr-wpan-net-device.h.

Referenced by BuildPseudoMacAddress(), and GetTypeId().

◆ m_receiveCallback

ReceiveCallback ns3::LrWpanNetDevice::m_receiveCallback

private

Upper layer callback used for notification of new data packet arrivals.

Definition at line 273 of file lr-wpan-net-device.h.

Referenced by McpsDataIndication(), and SetReceiveCallback().

◆ m_useAcks

bool ns3::LrWpanNetDevice::m_useAcks

private

Configure the NetDevice to request MAC layer acknowledgments when sending packets using the Send() API.

Definition at line 253 of file lr-wpan-net-device.h.

Referenced by GetTypeId(), and Send().

The documentation for this class was generated from the following files:

src/lr-wpan/model/lr-wpan-net-device.h
src/lr-wpan/model/lr-wpan-net-device.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Member Enumeration Documentation

◆ PseudoMacAddressMode_e

Constructor & Destructor Documentation

◆ LrWpanNetDevice()

◆ ~LrWpanNetDevice()

Member Function Documentation

◆ AddLinkChangeCallback()

◆ AssignStreams()

◆ BuildPseudoMacAddress()

◆ CompleteConfig()

◆ DoDispose()

◆ DoGetChannel()

◆ DoInitialize()

◆ GetAddress()

◆ GetBroadcast()

◆ GetChannel()

◆ GetCsmaCa()

◆ GetIfIndex()

◆ GetMac()

◆ GetMtu()

◆ GetMulticast() [1/2]

◆ GetMulticast() [2/2]

◆ GetNode()

◆ GetPhy()

◆ GetTypeId()

◆ IsBridge()

◆ IsBroadcast()

◆ IsLinkUp()

◆ IsMulticast()

◆ IsPointToPoint()

◆ LinkDown()

◆ LinkUp()

◆ McpsDataIndication()

◆ NeedsArp()

◆ Send()

◆ SendFrom()

◆ SetAddress()

◆ SetChannel()

◆ SetCsmaCa()

◆ SetIfIndex()

◆ SetMac()

◆ SetMtu()

◆ SetNode()

◆ SetPhy()

◆ SetPromiscReceiveCallback()

◆ SetReceiveCallback()

◆ SupportsSendFrom()

Member Data Documentation

◆ m_configComplete

◆ m_csmaca

◆ m_ifIndex

◆ m_linkChanges

◆ m_linkUp

◆ m_mac

◆ m_node

◆ m_phy

◆ m_pseudoMacMode

◆ m_receiveCallback

◆ m_useAcks
