ns3::ItuR1411NlosOverRooftopPropagationLossModel Class Reference

the ITU-R 1411 NLOS over rooftop propagation model More...

#include "itu-r-1411-nlos-over-rooftop-propagation-loss-model.h"

+ Inheritance diagram for ns3::ItuR1411NlosOverRooftopPropagationLossModel:
+ Collaboration diagram for ns3::ItuR1411NlosOverRooftopPropagationLossModel:

Public Member Functions

 ItuR1411NlosOverRooftopPropagationLossModel ()

 ItuR1411NlosOverRooftopPropagationLossModel (const ItuR1411NlosOverRooftopPropagationLossModel &)=delete

virtual ~ItuR1411NlosOverRooftopPropagationLossModel ()

double GetLoss (Ptr< MobilityModel > a, Ptr< MobilityModel > b) const

ItuR1411NlosOverRooftopPropagationLossModeloperator= (const ItuR1411NlosOverRooftopPropagationLossModel &)=delete

void SetFrequency (double freq)
 Set the operating frequency. More...

- Public Member Functions inherited from ns3::PropagationLossModel
 PropagationLossModel ()

 PropagationLossModel (const PropagationLossModel &)=delete

virtual ~PropagationLossModel ()

int64_t AssignStreams (int64_t stream)
 If this loss model uses objects of type RandomVariableStream, set the stream numbers to the integers starting with the offset 'stream'. More...

double CalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
 Returns the Rx Power taking into account all the PropagationLossModel(s) chained to the current one. More...

Ptr< PropagationLossModelGetNext ()
 Gets the next PropagationLossModel in the chain of loss models that act on the signal. More...

PropagationLossModeloperator= (const PropagationLossModel &)=delete

void SetNext (Ptr< PropagationLossModel > next)
 Enables a chain of loss models to act on the signal. More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= ([[maybe_unused]] const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::PropagationLossModel
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

int64_t DoAssignStreams (int64_t stream) override
 Assign a fixed random variable stream number to the random variables used by this model. More...

double DoCalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const override
 PropagationLossModel. More...


Private Attributes

double m_buildingSeparation
 in meters More...

double m_buildingsExtend
 in meters More...

CitySize m_citySize
 Dimension of the city. More...

EnvironmentType m_environment
 Environment Scenario. More...

double m_frequency
 frequency in MHz More...

double m_lambda
 wavelength More...

double m_rooftopHeight
 in meters More...

double m_streetsOrientation
 in degrees [0,90] More...

double m_streetsWidth
 in meters More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoDispose (void)
 Destructor implementation. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

the ITU-R 1411 NLOS over rooftop propagation model

This class implements the ITU-R 1411 LOS propagation model for Non-Line-of-Sight (NLoS) short range outdoor communication over rooftops in the frequency range 300 MHz to 100 GHz.
For more information about the model, please see the propagation module documentation in .rst format.

Config Paths

ns3::ItuR1411NlosOverRooftopPropagationLossModel is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ItuR1411NlosOverRooftopPropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ItuR1411NlosOverRooftopPropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ItuR1411NlosOverRooftopPropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ItuR1411NlosOverRooftopPropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::LrWpanNetDevice/Channel/PropagationLossModel/$ns3::ItuR1411NlosOverRooftopPropagationLossModel"
  • "/ChannelList/[i]/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ItuR1411NlosOverRooftopPropagationLossModel"
  • "/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ItuR1411NlosOverRooftopPropagationLossModel"

Attributes

  • Frequency: The Frequency (default is 2.106 GHz).
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 2.16e+09
    • Flags: construct write
  • Environment: Environment Scenario
    • Set with class: ns3::EnumValue
    • Underlying type:
    • Initial value: Urban
    • Flags: construct write read
  • CitySize: Dimension of the city
    • Set with class: ns3::EnumValue
    • Underlying type:
    • Initial value: Large
    • Flags: construct write read
  • RooftopLevel: The height of the rooftop level in meters
    • Set with class: ns3::DoubleValue
    • Underlying type: double 0:90
    • Initial value: 20
    • Flags: construct write read
  • StreetsOrientation: The orientation of streets in degrees [0,90] with respect to the direction of propagation
    • Set with class: ns3::DoubleValue
    • Underlying type: double 0:90
    • Initial value: 45
    • Flags: construct write read
  • StreetsWidth: The width of streets
    • Set with class: ns3::DoubleValue
    • Underlying type: double 0:1000
    • Initial value: 20
    • Flags: construct write read
  • BuildingsExtend: The distance over which the buildings extend
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 80
    • Flags: construct write read
  • BuildingSeparation: The separation between buildings
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 50
    • Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 104 bytes (on a 64-bit architecture).

Definition at line 42 of file itu-r-1411-nlos-over-rooftop-propagation-loss-model.h.

Constructor & Destructor Documentation

◆ ItuR1411NlosOverRooftopPropagationLossModel() [1/2]

ns3::ItuR1411NlosOverRooftopPropagationLossModel::ItuR1411NlosOverRooftopPropagationLossModel ( )

◆ ~ItuR1411NlosOverRooftopPropagationLossModel()

ns3::ItuR1411NlosOverRooftopPropagationLossModel::~ItuR1411NlosOverRooftopPropagationLossModel ( )
virtual

◆ ItuR1411NlosOverRooftopPropagationLossModel() [2/2]

ns3::ItuR1411NlosOverRooftopPropagationLossModel::ItuR1411NlosOverRooftopPropagationLossModel ( const ItuR1411NlosOverRooftopPropagationLossModel )
delete

Member Function Documentation

◆ DoAssignStreams()

int64_t ns3::ItuR1411NlosOverRooftopPropagationLossModel::DoAssignStreams ( int64_t  stream)
overrideprivatevirtual

Assign a fixed random variable stream number to the random variables used by this model.

Subclasses must implement this; those not using random variables can return zero.

Parameters
streamfirst stream index to use
Returns
the number of stream indices assigned by this model

Implements ns3::PropagationLossModel.

Definition at line 224 of file itu-r-1411-nlos-over-rooftop-propagation-loss-model.cc.

◆ DoCalcRxPower()

double ns3::ItuR1411NlosOverRooftopPropagationLossModel::DoCalcRxPower ( double  txPowerDbm,
Ptr< MobilityModel a,
Ptr< MobilityModel b
) const
overrideprivatevirtual

PropagationLossModel.

Parameters
txPowerDbmcurrent transmission power (in dBm)
athe mobility model of the source
bthe mobility model of the destination
Returns
the reception power after adding/multiplying propagation loss (in dBm)

Implements ns3::PropagationLossModel.

Definition at line 216 of file itu-r-1411-nlos-over-rooftop-propagation-loss-model.cc.

References GetLoss().

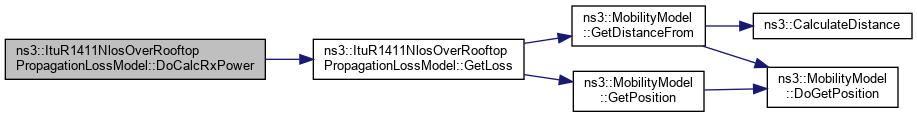

+ Here is the call graph for this function:

◆ GetLoss()

double ns3::ItuR1411NlosOverRooftopPropagationLossModel::GetLoss ( Ptr< MobilityModel a,
Ptr< MobilityModel b
) const
Parameters
athe first mobility model
bthe second mobility model
Returns
the loss in dBm for the propagation between the two given mobility models

Definition at line 102 of file itu-r-1411-nlos-over-rooftop-propagation-loss-model.cc.

References ns3::MobilityModel::GetDistanceFrom(), ns3::MobilityModel::GetPosition(), ns3::LargeCity, m_buildingSeparation, m_buildingsExtend, m_citySize, m_environment, m_frequency, m_lambda, m_rooftopHeight, m_streetsOrientation, m_streetsWidth, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::UrbanEnvironment.

Referenced by DoCalcRxPower().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetTypeId()

◆ operator=()

ItuR1411NlosOverRooftopPropagationLossModel& ns3::ItuR1411NlosOverRooftopPropagationLossModel::operator= ( const ItuR1411NlosOverRooftopPropagationLossModel )
delete

◆ SetFrequency()

void ns3::ItuR1411NlosOverRooftopPropagationLossModel::SetFrequency ( double  freq)

Set the operating frequency.

Parameters
freqthe frequency in Hz

Definition at line 208 of file itu-r-1411-nlos-over-rooftop-propagation-loss-model.cc.

References m_frequency, and m_lambda.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_buildingSeparation

double ns3::ItuR1411NlosOverRooftopPropagationLossModel::m_buildingSeparation
private

in meters

Definition at line 92 of file itu-r-1411-nlos-over-rooftop-propagation-loss-model.h.

Referenced by GetLoss(), and GetTypeId().

◆ m_buildingsExtend

double ns3::ItuR1411NlosOverRooftopPropagationLossModel::m_buildingsExtend
private

in meters

Definition at line 91 of file itu-r-1411-nlos-over-rooftop-propagation-loss-model.h.

Referenced by GetLoss(), and GetTypeId().

◆ m_citySize

CitySize ns3::ItuR1411NlosOverRooftopPropagationLossModel::m_citySize
private

Dimension of the city.

Definition at line 87 of file itu-r-1411-nlos-over-rooftop-propagation-loss-model.h.

Referenced by GetLoss(), and GetTypeId().

◆ m_environment

EnvironmentType ns3::ItuR1411NlosOverRooftopPropagationLossModel::m_environment
private

Environment Scenario.

Definition at line 86 of file itu-r-1411-nlos-over-rooftop-propagation-loss-model.h.

Referenced by GetLoss(), and GetTypeId().

◆ m_frequency

double ns3::ItuR1411NlosOverRooftopPropagationLossModel::m_frequency
private

frequency in MHz

Definition at line 84 of file itu-r-1411-nlos-over-rooftop-propagation-loss-model.h.

Referenced by GetLoss(), and SetFrequency().

◆ m_lambda

double ns3::ItuR1411NlosOverRooftopPropagationLossModel::m_lambda
private

wavelength

Definition at line 85 of file itu-r-1411-nlos-over-rooftop-propagation-loss-model.h.

Referenced by GetLoss(), and SetFrequency().

◆ m_rooftopHeight

double ns3::ItuR1411NlosOverRooftopPropagationLossModel::m_rooftopHeight
private

in meters

Definition at line 88 of file itu-r-1411-nlos-over-rooftop-propagation-loss-model.h.

Referenced by GetLoss(), and GetTypeId().

◆ m_streetsOrientation

double ns3::ItuR1411NlosOverRooftopPropagationLossModel::m_streetsOrientation
private

in degrees [0,90]

Definition at line 89 of file itu-r-1411-nlos-over-rooftop-propagation-loss-model.h.

Referenced by GetLoss(), and GetTypeId().

◆ m_streetsWidth

double ns3::ItuR1411NlosOverRooftopPropagationLossModel::m_streetsWidth
private

in meters

Definition at line 90 of file itu-r-1411-nlos-over-rooftop-propagation-loss-model.h.

Referenced by GetLoss(), and GetTypeId().


The documentation for this class was generated from the following files:
