ns3::HierarchicalMobilityModel Class Reference

Hierarchical mobility model. More...

#include "hierarchical-mobility-model.h"

+ Inheritance diagram for ns3::HierarchicalMobilityModel:
+ Collaboration diagram for ns3::HierarchicalMobilityModel:

Public Member Functions

 HierarchicalMobilityModel ()

Ptr< MobilityModelGetChild (void) const

Ptr< MobilityModelGetParent (void) const

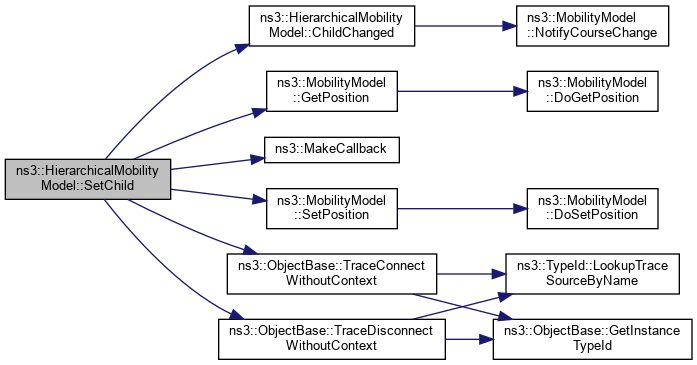

void SetChild (Ptr< MobilityModel > model)
 Sets the child mobility model to a new one, possibly replacing an existing one. More...

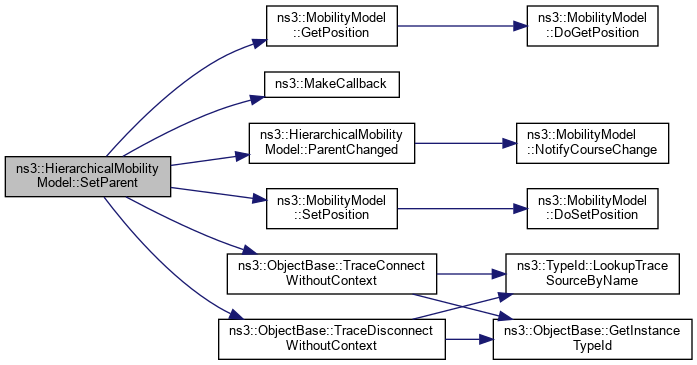

void SetParent (Ptr< MobilityModel > model)
 Sets the parent mobility model to a new one, possibly replacing an existing one. More...

- Public Member Functions inherited from ns3::MobilityModel
 MobilityModel ()

virtual ~MobilityModel ()=0

int64_t AssignStreams (int64_t stream)
 Assign a fixed random variable stream number to the random variables used by this model. More...

double GetDistanceFrom (Ptr< const MobilityModel > position) const

Vector GetPosition (void) const

Vector GetPositionWithReference (const Vector &referencePosition) const
 This method may be used if the position returned may depend on some reference position provided. More...

double GetRelativeSpeed (Ptr< const MobilityModel > other) const

Vector GetVelocity (void) const

void SetPosition (const Vector &position)

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= ([[maybe_unused]] const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Register this type with the TypeId system. More...

- Static Public Member Functions inherited from ns3::MobilityModel
static TypeId GetTypeId (void)
 Register this type with the TypeId system. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

void ChildChanged (Ptr< const MobilityModel > model)
 Callback for when child mobility model course change occurs. More...

virtual int64_t DoAssignStreams (int64_t)
 The default implementation does nothing but return the passed-in parameter. More...

virtual Vector DoGetPosition (void) const

virtual Vector DoGetVelocity (void) const

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void DoSetPosition (const Vector &position)

void ParentChanged (Ptr< const MobilityModel > model)
 Callback for when parent mobility model course change occurs. More...


Private Attributes

Ptr< MobilityModelm_child
 pointer to child mobility model More...

Ptr< MobilityModelm_parent
 pointer to parent mobility model More...


Additional Inherited Members

- Public Types inherited from ns3::MobilityModel
typedef void(* TracedCallback) (Ptr< const MobilityModel > model)
 TracedCallback signature. More...

- Protected Member Functions inherited from ns3::MobilityModel
void NotifyCourseChange (void) const
 Must be invoked by subclasses when the course of the position changes to notify course change listeners. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoDispose (void)
 Destructor implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Hierarchical mobility model.

This model allows you to specify the position of a child object relative to a parent object.

Basically this is a mobility model that combines two other mobility models: a "parent" model and a "child" model. The position of the hierarchical model is always the vector sum of the parent + child positions, so that if the parent model "moves", then this model will report an equal relative movement. Useful, for instance, if you want to simulate a node inside another node that moves, such as a vehicle.

Setting the position on this model is always done using world absolute coordinates, and it changes only the child mobility model position, never the parent. The child mobility model always uses a coordinate system relative to the parent model position.

Note
: as a special case, the parent model may be NULL, which is semantically equivalent to having a ConstantPositionMobilityModel as parent positioned at origin (0,0,0). In other words, setting the parent model to NULL makes the child model and the hierarchical model start using world absolute coordinates.
Warning
: changing the parent/child mobility models in the middle of a simulation will probably not play very well with the ConfigStore APIs, so do this only if you know what you are doing.

Config Paths

ns3::HierarchicalMobilityModel is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::HierarchicalMobilityModel"

Attributes

Attributes defined in parent class ns3::MobilityModel

  • Position: The current position of the mobility model.
  • Velocity: The current velocity of the mobility model.

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::MobilityModel

Size of this type is 72 bytes (on a 64-bit architecture).

Definition at line 57 of file hierarchical-mobility-model.h.

Constructor & Destructor Documentation

◆ HierarchicalMobilityModel()

ns3::HierarchicalMobilityModel::HierarchicalMobilityModel ( )

Definition at line 52 of file hierarchical-mobility-model.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ ChildChanged()

void ns3::HierarchicalMobilityModel::ChildChanged ( Ptr< const MobilityModel model)
private

Callback for when child mobility model course change occurs.

Parameters
modelmobility mode (unused)

Definition at line 184 of file hierarchical-mobility-model.cc.

References ns3::MobilityModel::NotifyCourseChange().

Referenced by SetChild().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

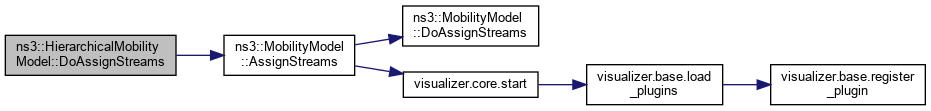

◆ DoAssignStreams()

int64_t ns3::HierarchicalMobilityModel::DoAssignStreams ( int64_t  start)
privatevirtual

The default implementation does nothing but return the passed-in parameter.

Subclasses using random variables are expected to override this.

Parameters
startstarting stream index
Returns
the number of streams used

Reimplemented from ns3::MobilityModel.

Definition at line 201 of file hierarchical-mobility-model.cc.

References ns3::MobilityModel::AssignStreams(), m_child, m_parent, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

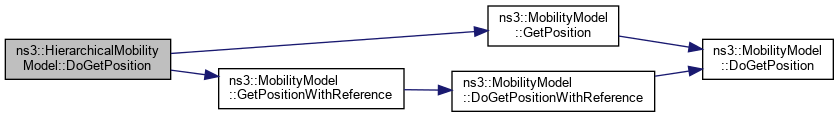

◆ DoGetPosition()

Vector ns3::HierarchicalMobilityModel::DoGetPosition ( void  ) const
privatevirtual
Returns
the current position.

Concrete subclasses of this base class must implement this method.

Implements ns3::MobilityModel.

Definition at line 124 of file hierarchical-mobility-model.cc.

References ns3::MobilityModel::GetPosition(), ns3::MobilityModel::GetPositionWithReference(), m_child, and m_parent.

+ Here is the call graph for this function:

◆ DoGetVelocity()

Vector ns3::HierarchicalMobilityModel::DoGetVelocity ( void  ) const
privatevirtual
Returns
the current velocity.

Concrete subclasses of this base class must implement this method.

Implements ns3::MobilityModel.

Definition at line 160 of file hierarchical-mobility-model.cc.

References ns3::MobilityModel::GetVelocity(), m_child, and m_parent.

+ Here is the call graph for this function:

◆ DoInitialize()

void ns3::HierarchicalMobilityModel::DoInitialize ( void  )
privatevirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 190 of file hierarchical-mobility-model.cc.

References ns3::Object::Initialize(), ns3::Object::IsInitialized(), m_child, m_parent, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

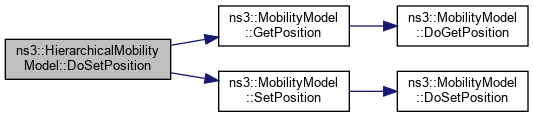

◆ DoSetPosition()

void ns3::HierarchicalMobilityModel::DoSetPosition ( const Vector &  position)
privatevirtual
Parameters
positionthe position to set.

Concrete subclasses of this base class must implement this method.

Implements ns3::MobilityModel.

Definition at line 137 of file hierarchical-mobility-model.cc.

References ns3::MobilityModel::GetPosition(), m_child, m_parent, NS_LOG_FUNCTION, and ns3::MobilityModel::SetPosition().

+ Here is the call graph for this function:

◆ GetChild()

Ptr< MobilityModel > ns3::HierarchicalMobilityModel::GetChild ( void  ) const
Returns
the child mobility model.

Calling GetPosition() on the model returned by this method allows one to access the position of the child relative to its parent.

Definition at line 112 of file hierarchical-mobility-model.cc.

References m_child.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

◆ GetParent()

Ptr< MobilityModel > ns3::HierarchicalMobilityModel::GetParent ( void  ) const
Returns
the parent mobility model.

Calling GetPosition() on the model returned by this method allows one to access the position of the parent alone, which is used as the reference position to which the child position is added.

Definition at line 118 of file hierarchical-mobility-model.cc.

References m_parent.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

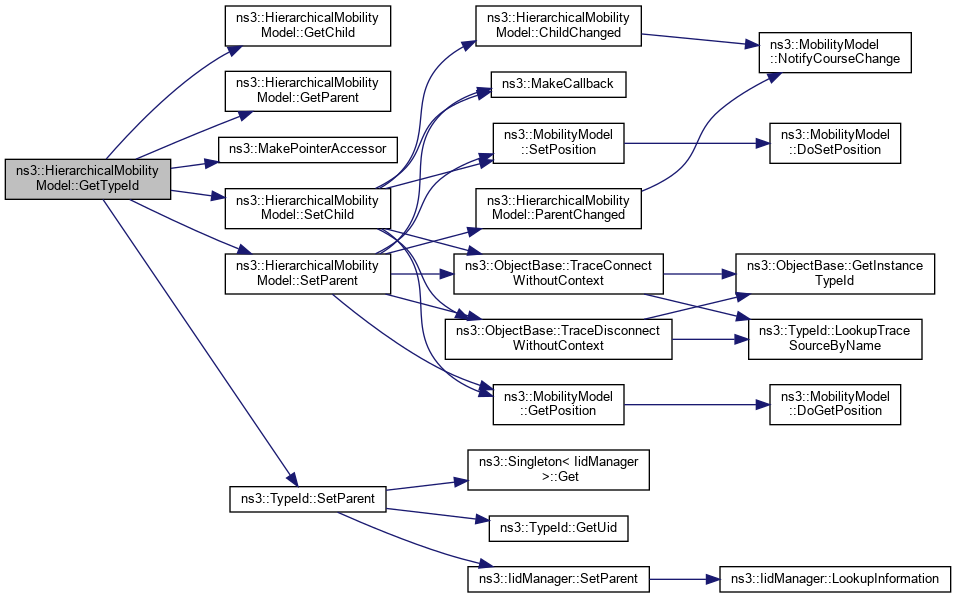

◆ GetTypeId()

TypeId ns3::HierarchicalMobilityModel::GetTypeId ( void  )
static

Register this type with the TypeId system.

Returns
the object TypeId

Definition at line 32 of file hierarchical-mobility-model.cc.

References GetChild(), GetParent(), ns3::MakePointerAccessor(), SetChild(), SetParent(), and ns3::TypeId::SetParent().

+ Here is the call graph for this function:

◆ ParentChanged()

void ns3::HierarchicalMobilityModel::ParentChanged ( Ptr< const MobilityModel model)
private

Callback for when parent mobility model course change occurs.

Parameters
modelmobility mode (unused)

Definition at line 178 of file hierarchical-mobility-model.cc.

References ns3::MobilityModel::NotifyCourseChange().

Referenced by SetParent().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ SetChild()

void ns3::HierarchicalMobilityModel::SetChild ( Ptr< MobilityModel model)

Sets the child mobility model to a new one, possibly replacing an existing one.

If the child model is being replaced, then the new child mobility model's current position is also set to the previous position to ensure that the composite position is preserved by this operation.

Parameters
modelnew mobility model child

Definition at line 60 of file hierarchical-mobility-model.cc.

References ChildChanged(), ns3::MobilityModel::GetPosition(), m_child, ns3::MakeCallback(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::MobilityModel::SetPosition(), ns3::ObjectBase::TraceConnectWithoutContext(), and ns3::ObjectBase::TraceDisconnectWithoutContext().

Referenced by GetTypeId().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ SetParent()

void ns3::HierarchicalMobilityModel::SetParent ( Ptr< MobilityModel model)

Sets the parent mobility model to a new one, possibly replacing an existing one.

If the parent model is being replaced, then the new position is set to the position that was set before replacement, to ensure that the composite position is preserved across changes to the parent model.

Parameters
modelnew mobility model parent

Definition at line 84 of file hierarchical-mobility-model.cc.

References ns3::MobilityModel::GetPosition(), m_child, m_parent, ns3::MakeCallback(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ParentChanged(), ns3::MobilityModel::SetPosition(), ns3::ObjectBase::TraceConnectWithoutContext(), and ns3::ObjectBase::TraceDisconnectWithoutContext().

Referenced by GetTypeId().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

Member Data Documentation

◆ m_child

Ptr<MobilityModel> ns3::HierarchicalMobilityModel::m_child
private

pointer to child mobility model

Definition at line 120 of file hierarchical-mobility-model.h.

Referenced by DoAssignStreams(), DoGetPosition(), DoGetVelocity(), DoInitialize(), DoSetPosition(), GetChild(), SetChild(), and SetParent().

◆ m_parent

Ptr<MobilityModel> ns3::HierarchicalMobilityModel::m_parent
private

pointer to parent mobility model

Definition at line 121 of file hierarchical-mobility-model.h.

Referenced by DoAssignStreams(), DoGetPosition(), DoGetVelocity(), DoInitialize(), DoSetPosition(), GetParent(), and SetParent().


The documentation for this class was generated from the following files:
