Implementation of the GPRS Tunnelling Protocol header according to GTPv1-U Release 10 as per 3Gpp TS 29.281 document. More...

#include "epc-gtpu-header.h"

Inheritance diagram for ns3::GtpuHeader:

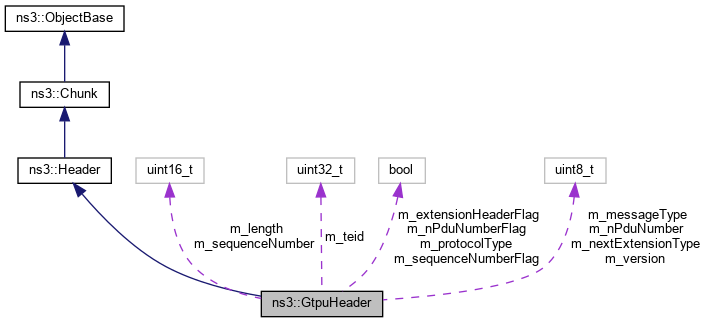

Collaboration diagram for ns3::GtpuHeader:

Public Member Functions
	GtpuHeader ()

virtual	~GtpuHeader ()

virtual uint32_t	Deserialize (Buffer::Iterator start)

bool	GetExtensionHeaderFlag () const
	Get extension header flag function. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

uint16_t	GetLength () const
	Get length function. More...

uint8_t	GetMessageType () const
	Get message type function. More...

uint8_t	GetNextExtensionType () const
	Get next extension type function. More...

uint8_t	GetNPduNumber () const
	Get NPDU number function. More...

bool	GetNPduNumberFlag () const
	Get type of GTP-U message function. More...

bool	GetProtocolType () const
	Get protocol type function. More...

uint16_t	GetSequenceNumber () const
	Get protocol type function. More...

bool	GetSequenceNumberFlag () const
	Get sequence number flag function. More...

virtual uint32_t	GetSerializedSize (void) const

uint32_t	GetTeid () const
	Get a tunnel endpoint identificator (TEID) More...

uint8_t	GetVersion () const
	Get version function. More...

bool	operator== (const GtpuHeader &b) const
	Equality operator. More...

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

void	SetExtensionHeaderFlag (bool extensionHeaderFlag)
	Set extension header flag function. More...

void	SetLength (uint16_t length)
	Set the length in octets of the payload. More...

void	SetMessageType (uint8_t messageType)
	Set message type function. More...

void	SetNextExtensionType (uint8_t nextExtensionType)
	Set next extension type function. More...

void	SetNPduNumber (uint8_t nPduNumber)
	Set NPDU number function. More...

void	SetNPduNumberFlag (bool nPduNumberFlag)
	Sets the flag that indicates the presence of a meaningful value of the N-PDU Number field. More...

void	SetProtocolType (bool protocolType)
	Set protocol type function. More...

void	SetSequenceNumber (uint16_t sequenceNumber)
	Set sequence number function. More...

void	SetSequenceNumberFlag (bool sequenceNumberFlag)
	Set sequence number flag function. More...

void	SetTeid (uint32_t teid)
	Set TEID function. More...

void	SetVersion (uint8_t version)
	Set version function. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
bool	m_extensionHeaderFlag
	This flag indicates the presence of a meaningful value of the Next Extension Header field. More...

uint16_t	m_length
	This field indicates the length in octets of the payload, i.e. More...

uint8_t	m_messageType
	This field indicates the type of GTP-U message. More...

uint8_t	m_nextExtensionType
	This field defines the type of Extension Header that follows this field in the GTP-PDU. More...

uint8_t	m_nPduNumber
	This field is used at the Inter SGSN Routeing Area Update procedure and some inter-system handover procedures (e.g. More...

bool	m_nPduNumberFlag
	This flag indicates the presence of a meaningful value of the N-PDU Number field. More...

bool	m_protocolType
	This bit is used as a protocol discriminator between GTP (when PT is '1') and GTP' (when PT is '0'). More...

uint16_t	m_sequenceNumber
	If Sequence Number field is used for G-PDUs (T-PDUs+headers), an increasing sequence number for T-PDUs is transmitted via GTP-U tunnels, when transmission order must be preserved. More...

bool	m_sequenceNumberFlag
	This flag indicates the presence of a meaningful value of the Sequence Number field. More...

uint32_t	m_teid
	This field unambiguously identifies a tunnel endpoint in the receiving GTP-U protocol entity. More...

uint8_t	m_version
	This field is used to determine the version of the GTPU-U protocol. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Implementation of the GPRS Tunnelling Protocol header according to GTPv1-U Release 10 as per 3Gpp TS 29.281 document.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 24 bytes (on a 64-bit architecture).

Definition at line 41 of file epc-gtpu-header.h.

Constructor & Destructor Documentation

◆ GtpuHeader()

ns3::GtpuHeader::GtpuHeader ( )

Definition at line 44 of file epc-gtpu-header.cc.

◆ ~GtpuHeader()

ns3::GtpuHeader::~GtpuHeader ( )

virtual

Definition at line 60 of file epc-gtpu-header.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::GtpuHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 91 of file epc-gtpu-header.cc.

References GetSerializedSize(), m_extensionHeaderFlag, m_length, m_messageType, m_nextExtensionType, m_nPduNumber, m_nPduNumberFlag, m_protocolType, m_sequenceNumber, m_sequenceNumberFlag, m_teid, m_version, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

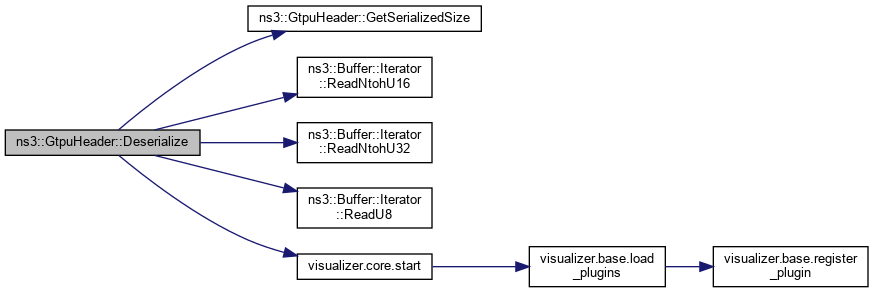

Here is the call graph for this function:

◆ GetExtensionHeaderFlag()

bool ns3::GtpuHeader::GetExtensionHeaderFlag ( ) const

Get extension header flag function.

Returns: the extension header flag

Definition at line 134 of file epc-gtpu-header.cc.

References m_extensionHeaderFlag.

◆ GetInstanceTypeId()

TypeId ns3::GtpuHeader::GetInstanceTypeId ( void ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 65 of file epc-gtpu-header.cc.

References GetTypeId().

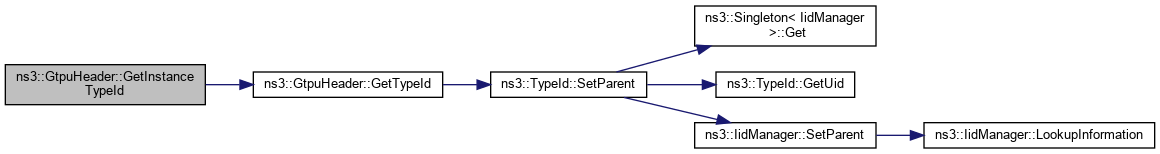

Here is the call graph for this function:

◆ GetLength()

uint16_t ns3::GtpuHeader::GetLength ( void ) const

Get length function.

Returns: the length

Definition at line 140 of file epc-gtpu-header.cc.

References m_length.

◆ GetMessageType()

uint8_t ns3::GtpuHeader::GetMessageType ( ) const

Get message type function.

Returns: the message type

Definition at line 146 of file epc-gtpu-header.cc.

References m_messageType.

◆ GetNextExtensionType()

uint8_t ns3::GtpuHeader::GetNextExtensionType ( ) const

Get next extension type function.

Returns: the next extension type

Definition at line 164 of file epc-gtpu-header.cc.

References m_nextExtensionType.

◆ GetNPduNumber()

uint8_t ns3::GtpuHeader::GetNPduNumber ( ) const

Get NPDU number function.

Returns: the NPDU number

Definition at line 152 of file epc-gtpu-header.cc.

References m_nPduNumber.

◆ GetNPduNumberFlag()

bool ns3::GtpuHeader::GetNPduNumberFlag ( ) const

Get type of GTP-U message function.

Returns: the NPDU number flag

Definition at line 158 of file epc-gtpu-header.cc.

References m_nPduNumberFlag.

◆ GetProtocolType()

bool ns3::GtpuHeader::GetProtocolType ( ) const

Get protocol type function.

Returns: the protocol type

Definition at line 170 of file epc-gtpu-header.cc.

References m_protocolType.

◆ GetSequenceNumber()

uint16_t ns3::GtpuHeader::GetSequenceNumber ( void ) const

Get protocol type function.

Returns: the sequence number

Definition at line 176 of file epc-gtpu-header.cc.

References m_sequenceNumber.

◆ GetSequenceNumberFlag()

bool ns3::GtpuHeader::GetSequenceNumberFlag ( ) const

Get sequence number flag function.

Returns: the sequence number flag

Definition at line 182 of file epc-gtpu-header.cc.

References m_sequenceNumberFlag.

◆ GetSerializedSize()

uint32_t ns3::GtpuHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 71 of file epc-gtpu-header.cc.

Referenced by Deserialize(), ns3::EpcX2::DoSendUeData(), ns3::EpcSgwApplication::SendToS1uSocket(), ns3::EpcEnbApplication::SendToS1uSocket(), ns3::EpcSgwApplication::SendToS5uSocket(), and ns3::EpcPgwApplication::SendToS5uSocket().

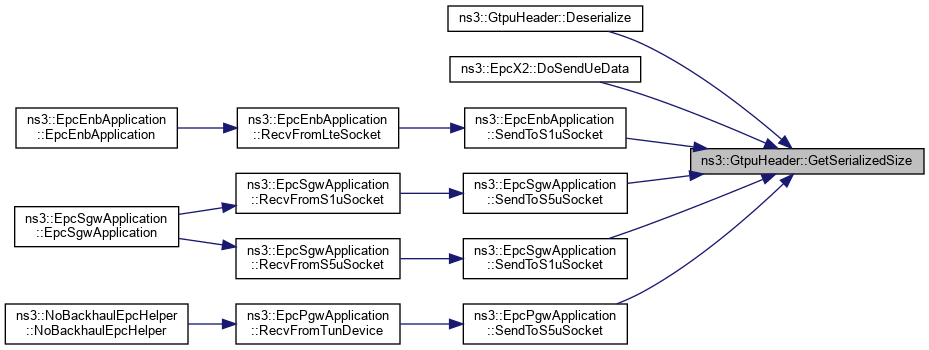

Here is the caller graph for this function:

◆ GetTeid()

uint32_t ns3::GtpuHeader::GetTeid ( ) const

Get a tunnel endpoint identificator (TEID)

Returns: the TEID

Definition at line 188 of file epc-gtpu-header.cc.

References m_teid.

Referenced by ns3::EpcEnbApplication::RecvFromS1uSocket(), ns3::EpcSgwApplication::RecvFromS1uSocket(), ns3::EpcPgwApplication::RecvFromS5uSocket(), ns3::EpcSgwApplication::RecvFromS5uSocket(), and ns3::EpcX2::RecvFromX2uSocket().

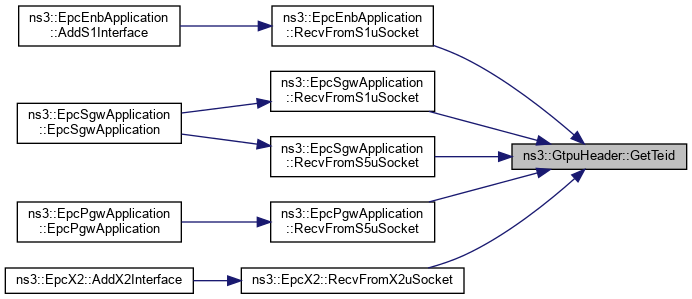

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::GtpuHeader::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 36 of file epc-gtpu-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

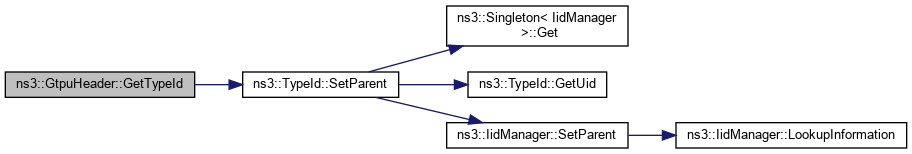

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetVersion()

uint8_t ns3::GtpuHeader::GetVersion ( ) const

Get version function.

Returns: the version

Definition at line 194 of file epc-gtpu-header.cc.

References m_version.

◆ operator==()

bool ns3::GtpuHeader::operator== ( const GtpuHeader & b ) const

Equality operator.

Parameters

b	GtpuHeader object to compare

Returns: true of equal

Definition at line 267 of file epc-gtpu-header.cc.

References m_extensionHeaderFlag, m_length, m_messageType, m_nextExtensionType, m_nPduNumber, m_nPduNumberFlag, m_protocolType, m_sequenceNumber, m_sequenceNumberFlag, m_teid, and m_version.

◆ Print()

void ns3::GtpuHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 109 of file epc-gtpu-header.cc.

References m_extensionHeaderFlag, m_length, m_messageType, m_nextExtensionType, m_nPduNumber, m_nPduNumberFlag, m_protocolType, m_sequenceNumber, m_sequenceNumberFlag, m_teid, and m_version.

◆ Serialize()

void ns3::GtpuHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 76 of file epc-gtpu-header.cc.

References m_extensionHeaderFlag, m_length, m_messageType, m_nextExtensionType, m_nPduNumber, m_nPduNumberFlag, m_protocolType, m_sequenceNumber, m_sequenceNumberFlag, m_teid, m_version, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU16(), ns3::Buffer::Iterator::WriteHtonU32(), and ns3::Buffer::Iterator::WriteU8().

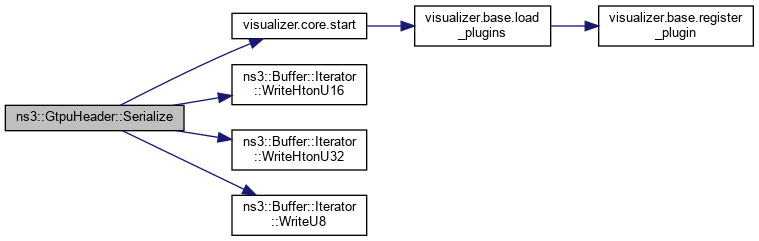

Here is the call graph for this function:

◆ SetExtensionHeaderFlag()

void ns3::GtpuHeader::SetExtensionHeaderFlag ( bool extensionHeaderFlag )

Set extension header flag function.

Parameters

extensionHeaderFlag

Definition at line 200 of file epc-gtpu-header.cc.

References m_extensionHeaderFlag.

Referenced by EpsGtpuHeaderTestCase::DoRun().

Here is the caller graph for this function:

◆ SetLength()

void ns3::GtpuHeader::SetLength ( uint16_t length )

Set the length in octets of the payload.

Parameters

length the length

Definition at line 206 of file epc-gtpu-header.cc.

References m_length.

Referenced by EpsGtpuHeaderTestCase::DoRun(), ns3::EpcX2::DoSendUeData(), ns3::EpcSgwApplication::SendToS1uSocket(), ns3::EpcEnbApplication::SendToS1uSocket(), ns3::EpcSgwApplication::SendToS5uSocket(), and ns3::EpcPgwApplication::SendToS5uSocket().

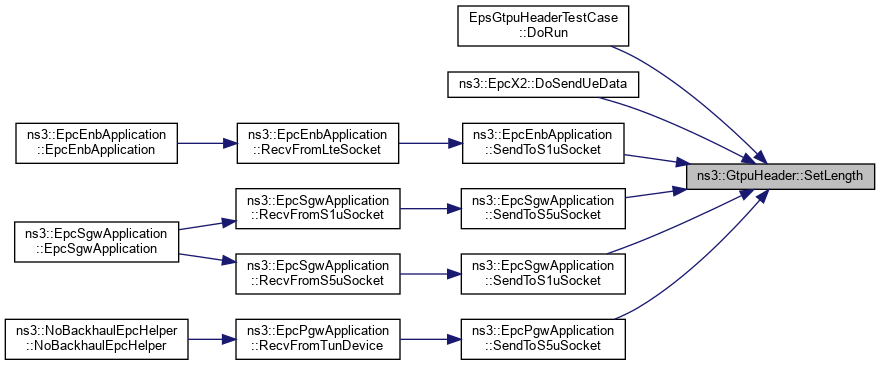

Here is the caller graph for this function:

◆ SetMessageType()

void ns3::GtpuHeader::SetMessageType ( uint8_t messageType )

Set message type function.

Parameters

messageType the message type

Definition at line 212 of file epc-gtpu-header.cc.

References m_messageType.

Referenced by EpsGtpuHeaderTestCase::DoRun().

Here is the caller graph for this function:

◆ SetNextExtensionType()

void ns3::GtpuHeader::SetNextExtensionType ( uint8_t nextExtensionType )

Set next extension type function.

Parameters

nextExtensionType the next extension type

Definition at line 230 of file epc-gtpu-header.cc.

References m_nextExtensionType.

Referenced by EpsGtpuHeaderTestCase::DoRun().

Here is the caller graph for this function:

◆ SetNPduNumber()

void ns3::GtpuHeader::SetNPduNumber ( uint8_t nPduNumber )

Set NPDU number function.

Parameters

nPduNumber the NPDU number

Definition at line 218 of file epc-gtpu-header.cc.

References m_nPduNumber.

Referenced by EpsGtpuHeaderTestCase::DoRun().

Here is the caller graph for this function:

◆ SetNPduNumberFlag()

void ns3::GtpuHeader::SetNPduNumberFlag ( bool nPduNumberFlag )

Sets the flag that indicates the presence of a meaningful value of the N-PDU Number field.

Parameters

nPduNumberFlag the NPDU number flag

Definition at line 224 of file epc-gtpu-header.cc.

References m_nPduNumberFlag.

Referenced by EpsGtpuHeaderTestCase::DoRun().

Here is the caller graph for this function:

◆ SetProtocolType()

void ns3::GtpuHeader::SetProtocolType ( bool protocolType )

Set protocol type function.

Parameters

protocolType the protocol type

Definition at line 236 of file epc-gtpu-header.cc.

References m_protocolType.

Referenced by EpsGtpuHeaderTestCase::DoRun().

Here is the caller graph for this function:

◆ SetSequenceNumber()

void ns3::GtpuHeader::SetSequenceNumber ( uint16_t sequenceNumber )

Set sequence number function.

Parameters

sequenceNumber the sequence number

Definition at line 242 of file epc-gtpu-header.cc.

References m_sequenceNumber.

Referenced by EpsGtpuHeaderTestCase::DoRun().

Here is the caller graph for this function:

◆ SetSequenceNumberFlag()

void ns3::GtpuHeader::SetSequenceNumberFlag ( bool sequenceNumberFlag )

Set sequence number flag function.

Parameters

sequenceNumberFlag the sequence number flag

Definition at line 248 of file epc-gtpu-header.cc.

References m_sequenceNumberFlag.

Referenced by EpsGtpuHeaderTestCase::DoRun().

Here is the caller graph for this function:

◆ SetTeid()

void ns3::GtpuHeader::SetTeid ( uint32_t teid )

Set TEID function.

Parameters

teid the TEID

Definition at line 254 of file epc-gtpu-header.cc.

References m_teid.

Referenced by EpsGtpuHeaderTestCase::DoRun(), ns3::EpcX2::DoSendUeData(), ns3::EpcSgwApplication::SendToS1uSocket(), ns3::EpcEnbApplication::SendToS1uSocket(), ns3::EpcSgwApplication::SendToS5uSocket(), and ns3::EpcPgwApplication::SendToS5uSocket().

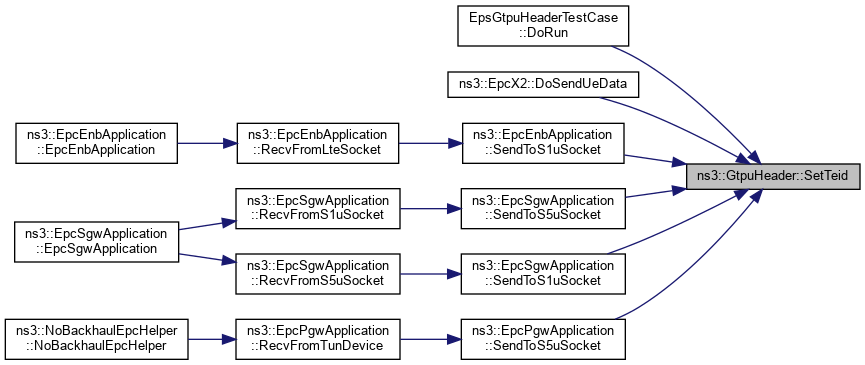

Here is the caller graph for this function:

◆ SetVersion()

void ns3::GtpuHeader::SetVersion ( uint8_t version )

Set version function.

Parameters

version the version

Definition at line 260 of file epc-gtpu-header.cc.

References m_version.

Referenced by EpsGtpuHeaderTestCase::DoRun().

Here is the caller graph for this function:

Member Data Documentation

◆ m_extensionHeaderFlag

bool ns3::GtpuHeader::m_extensionHeaderFlag

private

This flag indicates the presence of a meaningful value of the Next Extension Header field.

When it is set to '0', the Next Extension Header field either is not present or, if present, shall not be interpreted. When it is set to '1', the Next Extension Header field is present, and shall be interpreted

Definition at line 195 of file epc-gtpu-header.h.

Referenced by Deserialize(), GetExtensionHeaderFlag(), operator==(), Print(), Serialize(), and SetExtensionHeaderFlag().

◆ m_length

uint16_t ns3::GtpuHeader::m_length

private

This field indicates the length in octets of the payload, i.e.

the rest of the packet following the mandatory part of the GTP header (that is the first 8 octets). The Sequence Number, the N-PDU Number or any Extension headers shall be considered to be part of the payload, i.e. included in the length count

Definition at line 221 of file epc-gtpu-header.h.

Referenced by Deserialize(), GetLength(), operator==(), Print(), Serialize(), and SetLength().

◆ m_messageType

uint8_t ns3::GtpuHeader::m_messageType

private

This field indicates the type of GTP-U message.

Definition at line 214 of file epc-gtpu-header.h.

Referenced by Deserialize(), GetMessageType(), operator==(), Print(), Serialize(), and SetMessageType().

◆ m_nextExtensionType

uint8_t ns3::GtpuHeader::m_nextExtensionType

private

This field defines the type of Extension Header that follows this field in the GTP-PDU.

Definition at line 246 of file epc-gtpu-header.h.

Referenced by Deserialize(), GetNextExtensionType(), operator==(), Print(), Serialize(), and SetNextExtensionType().

◆ m_nPduNumber

uint8_t ns3::GtpuHeader::m_nPduNumber

private

This field is used at the Inter SGSN Routeing Area Update procedure and some inter-system handover procedures (e.g.

between 2G and 3G radio access networks). This field is used to co-ordinate the data transmission for acknowledged mode of communication between the MS and the SGSN

Definition at line 241 of file epc-gtpu-header.h.

Referenced by Deserialize(), GetNPduNumber(), operator==(), Print(), Serialize(), and SetNPduNumber().

◆ m_nPduNumberFlag

bool ns3::GtpuHeader::m_nPduNumberFlag

private

This flag indicates the presence of a meaningful value of the N-PDU Number field.

When it is set to '0', the N-PDU Number field either is not present, or, if present, shall not be interpreted. When it is set to '1', the N-PDU Number field is present, and shall be interpreted

Definition at line 210 of file epc-gtpu-header.h.

Referenced by Deserialize(), GetNPduNumberFlag(), operator==(), Print(), Serialize(), and SetNPduNumberFlag().

◆ m_protocolType

bool ns3::GtpuHeader::m_protocolType

private

This bit is used as a protocol discriminator between GTP (when PT is '1') and GTP' (when PT is '0').

Definition at line 187 of file epc-gtpu-header.h.

Referenced by Deserialize(), GetProtocolType(), operator==(), Print(), Serialize(), and SetProtocolType().

◆ m_sequenceNumber

uint16_t ns3::GtpuHeader::m_sequenceNumber

private

If Sequence Number field is used for G-PDUs (T-PDUs+headers), an increasing sequence number for T-PDUs is transmitted via GTP-U tunnels, when transmission order must be preserved.

Definition at line 234 of file epc-gtpu-header.h.

Referenced by Deserialize(), GetSequenceNumber(), operator==(), Print(), Serialize(), and SetSequenceNumber().

◆ m_sequenceNumberFlag

bool ns3::GtpuHeader::m_sequenceNumberFlag

private

This flag indicates the presence of a meaningful value of the Sequence Number field.

When it is set to '0', the Sequence Number field either is not present or, if present, shall not be interpreted. When it is set to '1', the Sequence Number field is present, and shall be interpreted

Definition at line 203 of file epc-gtpu-header.h.

Referenced by Deserialize(), GetSequenceNumberFlag(), operator==(), Print(), Serialize(), and SetSequenceNumberFlag().

◆ m_teid

uint32_t ns3::GtpuHeader::m_teid

private

This field unambiguously identifies a tunnel endpoint in the receiving GTP-U protocol entity.

The receiving end side of a GTP tunnel locally assigns the TEID value the transmitting side has to use.

Definition at line 228 of file epc-gtpu-header.h.

Referenced by Deserialize(), GetTeid(), operator==(), Print(), Serialize(), and SetTeid().

◆ m_version

uint8_t ns3::GtpuHeader::m_version

private

This field is used to determine the version of the GTPU-U protocol.

The version number shall be set to 1.

Definition at line 181 of file epc-gtpu-header.h.

Referenced by Deserialize(), GetVersion(), operator==(), Print(), Serialize(), and SetVersion().

The documentation for this class was generated from the following files:

src/lte/model/epc-gtpu-header.h
src/lte/model/epc-gtpu-header.cc

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ GtpuHeader()

◆ ~GtpuHeader()

Member Function Documentation

◆ Deserialize()

◆ GetExtensionHeaderFlag()

◆ GetInstanceTypeId()

◆ GetLength()

◆ GetMessageType()

◆ GetNextExtensionType()

◆ GetNPduNumber()

◆ GetNPduNumberFlag()

◆ GetProtocolType()

◆ GetSequenceNumber()

◆ GetSequenceNumberFlag()

◆ GetSerializedSize()

◆ GetTeid()

◆ GetTypeId()

◆ GetVersion()

◆ operator==()

◆ Print()

◆ Serialize()

◆ SetExtensionHeaderFlag()

◆ SetLength()

◆ SetMessageType()

◆ SetNextExtensionType()

◆ SetNPduNumber()

◆ SetNPduNumberFlag()

◆ SetProtocolType()

◆ SetSequenceNumber()

◆ SetSequenceNumberFlag()

◆ SetTeid()

◆ SetVersion()

Member Data Documentation

◆ m_extensionHeaderFlag

◆ m_length

◆ m_messageType

◆ m_nextExtensionType

◆ m_nPduNumber

◆ m_nPduNumberFlag

◆ m_protocolType

◆ m_sequenceNumber

◆ m_sequenceNumberFlag

◆ m_teid

◆ m_version
