Interface between ns-3 and MPI. More...

#include "granted-time-window-mpi-interface.h"

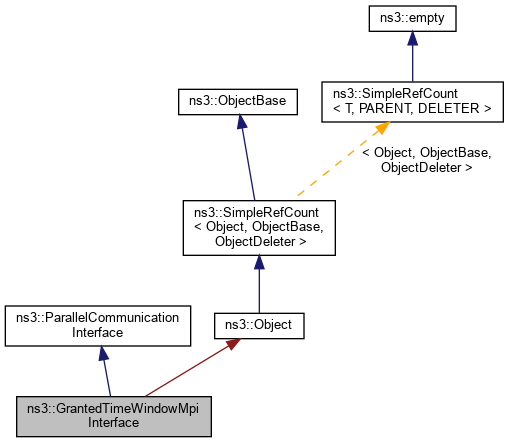

Inheritance diagram for ns3::GrantedTimeWindowMpiInterface:

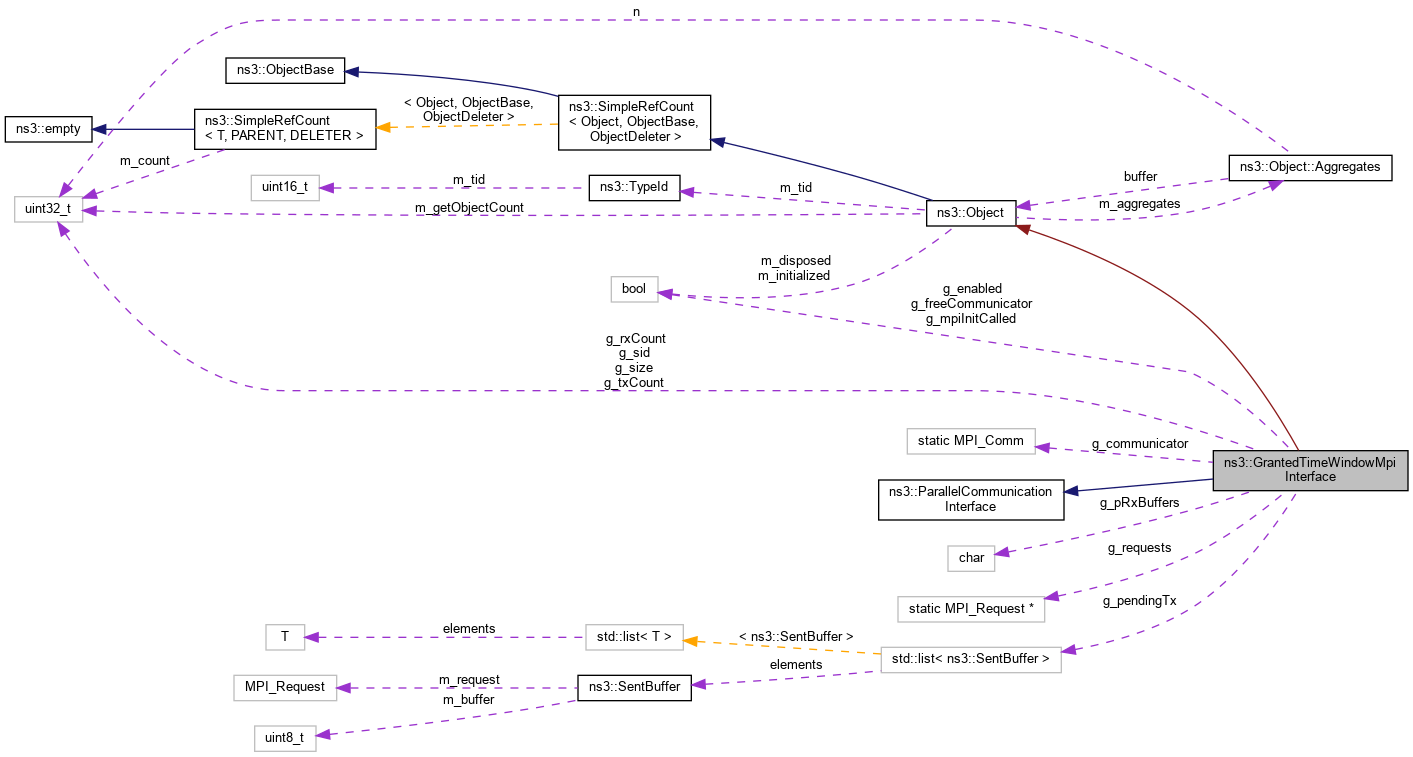

Collaboration diagram for ns3::GrantedTimeWindowMpiInterface:

Public Member Functions
virtual void	Destroy ()
	Deletes storage used by the parallel environment. More...

virtual void	Disable ()
	Clean up the ns-3 parallel communications interface. More...

virtual void	Enable (int pargc, char **pargv)
	Setup the parallel communication interface. More...

virtual void	Enable (MPI_Comm communicator)
	Setup the parallel communication interface using the specified communicator. More...

virtual MPI_Comm	GetCommunicator ()
	Return the communicator used to run ns-3. More...

virtual uint32_t	GetSize ()
	Get the number of ranks used by ns-3. More...

virtual uint32_t	GetSystemId ()
	Get the id number of this rank. More...

virtual bool	IsEnabled ()
	Returns enabled state of parallel environment. More...

virtual void	SendPacket (Ptr< Packet > p, const Time &rxTime, uint32_t node, uint32_t dev)
	Send a packet to a remote node. More...

Public Member Functions inherited from ns3::ParallelCommunicationInterface
virtual	~ParallelCommunicationInterface ()
	Destructor. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Static Private Member Functions
static uint32_t	GetRxCount ()

static uint32_t	GetTxCount ()

static void	ReceiveMessages ()
	Check for received messages complete. More...

static void	TestSendComplete ()
	Check for completed sends. More...

Static Private Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Private Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Private Attributes
static MPI_Comm	g_communicator = MPI_COMM_WORLD
	MPI communicator being used for ns-3 tasks. More...

static bool	g_enabled = false
	Has this interface been enabled. More...

static bool	g_freeCommunicator = false
	Did ns-3 create the communicator? Have to free it. More...

static bool	g_mpiInitCalled = false
	Has MPI Init been called by this interface. More...

static std::list< SentBuffer >	g_pendingTx
	List of pending non-blocking sends. More...

static char **	g_pRxBuffers
	Data buffers for non-blocking reads. More...

static MPI_Request *	g_requests
	Pending non-blocking receives. More...

static uint32_t	g_rxCount = 0
	Total packets received. More...

static uint32_t	g_sid = 0
	System ID (rank) for this task. More...

static uint32_t	g_size = 1
	Size of the MPI COM_WORLD group. More...

static uint32_t	g_txCount = 0
	Total packets sent. More...

Additional Inherited Members
Private Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Private Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Interface between ns-3 and MPI.

Introspection did not find any typical Config paths.

Implements the interface used by the singleton parallel controller to interface between NS3 and the communications layer being used for inter-task packet transfers.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 40 bytes (on a 64-bit architecture).

Definition at line 93 of file granted-time-window-mpi-interface.h.

Member Function Documentation

◆ Destroy()

void ns3::GrantedTimeWindowMpiInterface::Destroy ( )

virtual

Deletes storage used by the parallel environment.

Implements ns3::ParallelCommunicationInterface.

Definition at line 105 of file granted-time-window-mpi-interface.cc.

References g_pendingTx, g_pRxBuffers, g_requests, GetSize(), and NS_LOG_FUNCTION.

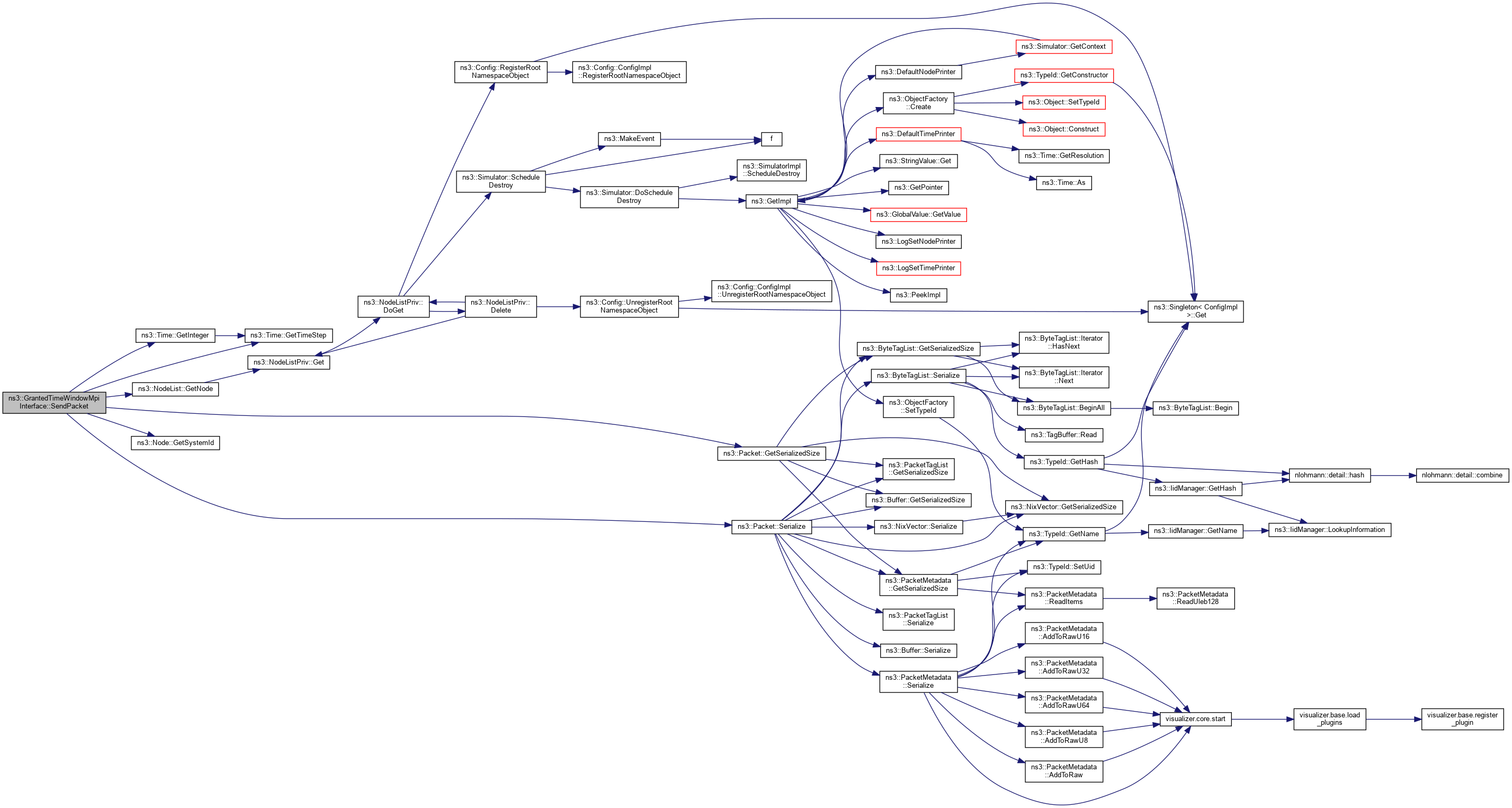

Here is the call graph for this function:

◆ Disable()

void ns3::GrantedTimeWindowMpiInterface::Disable ( )

virtual

Clean up the ns-3 parallel communications interface.

MPI_Finalize will be called only if Enable (int* pargc, char*** pargv) was called.

Implements ns3::ParallelCommunicationInterface.

Definition at line 320 of file granted-time-window-mpi-interface.cc.

References g_communicator, g_enabled, g_freeCommunicator, g_mpiInitCalled, NS_FATAL_ERROR, and NS_LOG_FUNCTION_NOARGS.

◆ Enable() [1/2]

void ns3::GrantedTimeWindowMpiInterface::Enable	(	int *	pargc,
		char ***	pargv
	)

virtual

Setup the parallel communication interface.

There are two ways to setup the communications interface. This Enable method is the easiest method and should be used in most situations.

Disable() must be invoked at end of an ns-3 application to properly cleanup the parallel communication interface.

This method will call MPI_Init and configure ns-3 to use the MPI_COMM_WORLD communicator.

For more complex situations, such as embedding ns-3 with other MPI simulators or libraries, the Enable(MPI_Comm communcicator) may be used if MPI is initialized externally or if ns-3 needs to be run unique communicator. For example if there are two parallel simulators and the goal is to run each simulator on a different set of ranks.

Note: The `SimulatorImplementationType attribute in ns3::GlobalValues must be set before calling Enable()

Parameters

pargc	number of command line arguments
pargv	command line arguments

Implements ns3::ParallelCommunicationInterface.

Definition at line 161 of file granted-time-window-mpi-interface.cc.

References g_enabled, g_mpiInitCalled, NS_ASSERT, and NS_LOG_FUNCTION.

◆ Enable() [2/2]

void ns3::GrantedTimeWindowMpiInterface::Enable ( MPI_Comm communicator )

virtual

Setup the parallel communication interface using the specified communicator.

See Enable (int* pargc, char*** pargv) for additional information.

Parameters

communicator MPI Communicator that should be used by ns-3

Implements ns3::ParallelCommunicationInterface.

Definition at line 175 of file granted-time-window-mpi-interface.cc.

References g_communicator, g_enabled, g_freeCommunicator, g_pRxBuffers, g_requests, g_sid, g_size, GetSize(), ns3::MAX_MPI_MSG_SIZE, NS_ASSERT, and NS_LOG_FUNCTION.

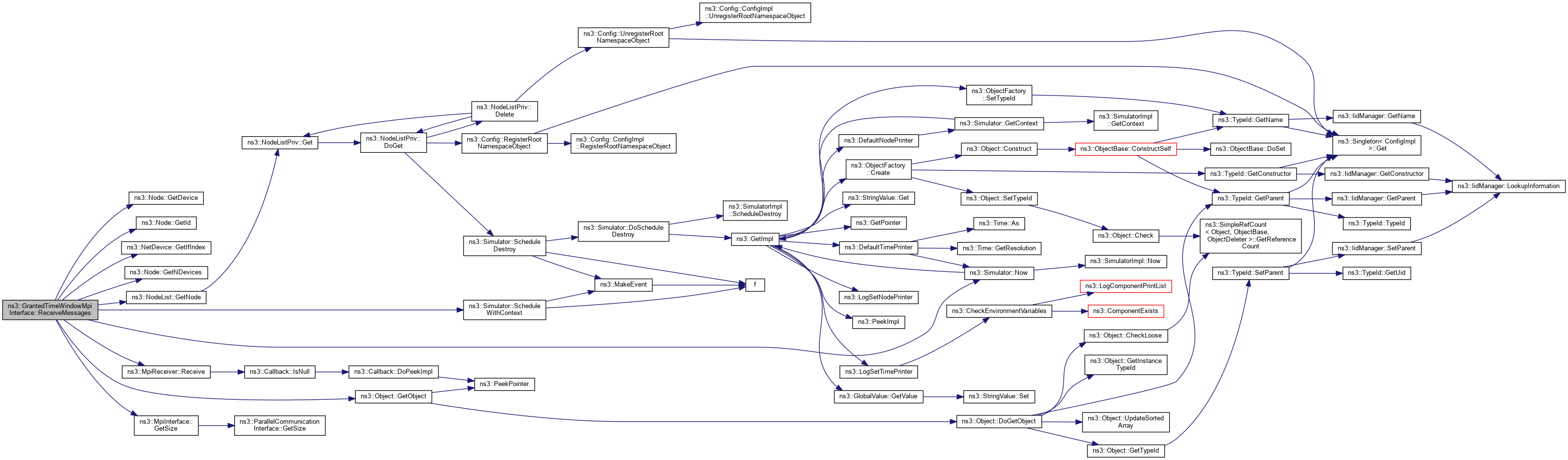

Here is the call graph for this function:

◆ GetCommunicator()

MPI_Comm ns3::GrantedTimeWindowMpiInterface::GetCommunicator ( )

virtual

Return the communicator used to run ns-3.

The communicator returned will be MPI_COMM_WORLD if Enable (int* pargc, char*** pargv) is used to enable or the user specified communicator if Enable (MPI_Comm communicator) is used.

Returns: The MPI Communicator.

Implements ns3::ParallelCommunicationInterface.

Definition at line 154 of file granted-time-window-mpi-interface.cc.

References g_communicator, g_enabled, and NS_ASSERT.

◆ GetRxCount()

uint32_t ns3::GrantedTimeWindowMpiInterface::GetRxCount ( )

staticprivate

Returns: received count in packets

Definition at line 120 of file granted-time-window-mpi-interface.cc.

References g_enabled, g_rxCount, and NS_ASSERT.

Referenced by ns3::DistributedSimulatorImpl::Run().

Here is the caller graph for this function:

◆ GetSize()

uint32_t ns3::GrantedTimeWindowMpiInterface::GetSize ( )

virtual

Get the number of ranks used by ns-3.

Returns the size (number of MPI ranks) of the communicator used by ns-3. When running a sequential simulation this will return a size of 1.

Returns: number of parallel tasks

Implements ns3::ParallelCommunicationInterface.

Definition at line 141 of file granted-time-window-mpi-interface.cc.

References g_enabled, g_size, and NS_ASSERT.

Referenced by Destroy(), and Enable().

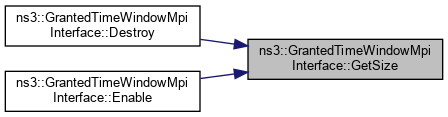

Here is the caller graph for this function:

◆ GetSystemId()

uint32_t ns3::GrantedTimeWindowMpiInterface::GetSystemId ( )

virtual

Get the id number of this rank.

When running a sequential simulation this will return a systemID of 0.

Returns: system identification

Implements ns3::ParallelCommunicationInterface.

Definition at line 134 of file granted-time-window-mpi-interface.cc.

References g_enabled, g_sid, and NS_ASSERT.

◆ GetTxCount()

uint32_t ns3::GrantedTimeWindowMpiInterface::GetTxCount ( )

staticprivate

Returns: transmitted count in packets

Definition at line 127 of file granted-time-window-mpi-interface.cc.

References g_enabled, g_txCount, and NS_ASSERT.

Referenced by ns3::DistributedSimulatorImpl::Run().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::GrantedTimeWindowMpiInterface::GetTypeId ( void )

static

Register this type.

Returns: The object TypeId.

Definition at line 95 of file granted-time-window-mpi-interface.cc.

References ns3::TypeId::SetParent().

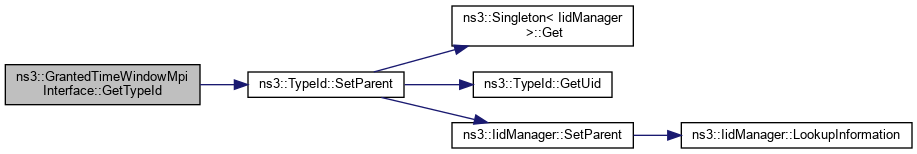

Here is the call graph for this function:

◆ IsEnabled()

bool ns3::GrantedTimeWindowMpiInterface::IsEnabled ( )

virtual

Returns enabled state of parallel environment.

Returns: true if parallel communication is enabled

Implements ns3::ParallelCommunicationInterface.

Definition at line 148 of file granted-time-window-mpi-interface.cc.

References g_enabled.

◆ ReceiveMessages()

void ns3::GrantedTimeWindowMpiInterface::ReceiveMessages ( )

staticprivate

Check for received messages complete.

Definition at line 240 of file granted-time-window-mpi-interface.cc.

References g_communicator, g_pRxBuffers, g_requests, g_rxCount, ns3::Node::GetDevice(), ns3::Node::GetId(), ns3::NetDevice::GetIfIndex(), ns3::Node::GetNDevices(), ns3::NodeList::GetNode(), ns3::Object::GetObject(), ns3::MpiInterface::GetSize(), ns3::MAX_MPI_MSG_SIZE, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION_NOARGS, ns3::MpiReceiver::Receive(), and ns3::Simulator::ScheduleWithContext().

Referenced by ns3::DistributedSimulatorImpl::Run().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendPacket()

void ns3::GrantedTimeWindowMpiInterface::SendPacket	(	Ptr< Packet >	p,
		const Time &	rxTime,
		uint32_t	node,
		uint32_t	dev
	)

virtual

Send a packet to a remote node.

Parameters

p	packet to send
rxTime	received time at destination node
node	destination node
dev	destination device

Serialize and send a packet to the specified node and net device

Implements ns3::ParallelCommunicationInterface.

Definition at line 209 of file granted-time-window-mpi-interface.cc.

References g_communicator, g_pendingTx, g_txCount, ns3::Time::GetInteger(), ns3::NodeList::GetNode(), ns3::Packet::GetSerializedSize(), ns3::Node::GetSystemId(), ns3::Time::GetTimeStep(), NS_LOG_FUNCTION, and ns3::Packet::Serialize().

Here is the call graph for this function:

◆ TestSendComplete()

void ns3::GrantedTimeWindowMpiInterface::TestSendComplete ( )

staticprivate

Check for completed sends.

Definition at line 300 of file granted-time-window-mpi-interface.cc.

References g_pendingTx, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::DistributedSimulatorImpl::Run().

Here is the caller graph for this function:

Member Data Documentation

◆ g_communicator

MPI_Comm ns3::GrantedTimeWindowMpiInterface::g_communicator = MPI_COMM_WORLD

staticprivate

MPI communicator being used for ns-3 tasks.

Definition at line 170 of file granted-time-window-mpi-interface.h.

Referenced by Disable(), Enable(), GetCommunicator(), ReceiveMessages(), and SendPacket().

◆ g_enabled

bool ns3::GrantedTimeWindowMpiInterface::g_enabled = false

staticprivate

Has this interface been enabled.

Definition at line 152 of file granted-time-window-mpi-interface.h.

Referenced by Disable(), Enable(), GetCommunicator(), GetRxCount(), GetSize(), GetSystemId(), GetTxCount(), and IsEnabled().

◆ g_freeCommunicator

bool ns3::GrantedTimeWindowMpiInterface::g_freeCommunicator = false

staticprivate

Did ns-3 create the communicator? Have to free it.

Definition at line 173 of file granted-time-window-mpi-interface.h.

Referenced by Disable(), and Enable().

◆ g_mpiInitCalled

bool ns3::GrantedTimeWindowMpiInterface::g_mpiInitCalled = false

staticprivate

Has MPI Init been called by this interface.

Alternatively user supplies a communicator.

Definition at line 158 of file granted-time-window-mpi-interface.h.

Referenced by Disable(), and Enable().

◆ g_pendingTx

std::list< SentBuffer > ns3::GrantedTimeWindowMpiInterface::g_pendingTx

staticprivate

List of pending non-blocking sends.

Definition at line 167 of file granted-time-window-mpi-interface.h.

Referenced by Destroy(), SendPacket(), and TestSendComplete().

◆ g_pRxBuffers

char ** ns3::GrantedTimeWindowMpiInterface::g_pRxBuffers

staticprivate

Data buffers for non-blocking reads.

Definition at line 164 of file granted-time-window-mpi-interface.h.

Referenced by Destroy(), Enable(), and ReceiveMessages().

◆ g_requests

MPI_Request * ns3::GrantedTimeWindowMpiInterface::g_requests

staticprivate

Pending non-blocking receives.

Definition at line 161 of file granted-time-window-mpi-interface.h.

Referenced by Destroy(), Enable(), and ReceiveMessages().

◆ g_rxCount

uint32_t ns3::GrantedTimeWindowMpiInterface::g_rxCount = 0

staticprivate

Total packets received.

Definition at line 146 of file granted-time-window-mpi-interface.h.

Referenced by GetRxCount(), and ReceiveMessages().

◆ g_sid

uint32_t ns3::GrantedTimeWindowMpiInterface::g_sid = 0

staticprivate

System ID (rank) for this task.

Definition at line 141 of file granted-time-window-mpi-interface.h.

Referenced by Enable(), and GetSystemId().

◆ g_size

uint32_t ns3::GrantedTimeWindowMpiInterface::g_size = 1

staticprivate

Size of the MPI COM_WORLD group.

Definition at line 143 of file granted-time-window-mpi-interface.h.

Referenced by Enable(), and GetSize().

◆ g_txCount

uint32_t ns3::GrantedTimeWindowMpiInterface::g_txCount = 0

staticprivate

Total packets sent.

Definition at line 149 of file granted-time-window-mpi-interface.h.

Referenced by GetTxCount(), and SendPacket().

The documentation for this class was generated from the following files:

src/mpi/model/granted-time-window-mpi-interface.h
src/mpi/model/granted-time-window-mpi-interface.cc

Public Member Functions

Static Public Member Functions

Static Private Member Functions

Static Private Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ Destroy()

◆ Disable()

◆ Enable() [1/2]

◆ Enable() [2/2]

◆ GetCommunicator()

◆ GetRxCount()

◆ GetSize()

◆ GetSystemId()

◆ GetTxCount()

◆ GetTypeId()

◆ IsEnabled()

◆ ReceiveMessages()

◆ SendPacket()

◆ TestSendComplete()

Member Data Documentation

◆ g_communicator

◆ g_enabled

◆ g_freeCommunicator

◆ g_mpiInitCalled

◆ g_pendingTx

◆ g_pRxBuffers

◆ g_requests

◆ g_rxCount

◆ g_sid

◆ g_size

◆ g_txCount
