ns3::EpcX2HandoverRequestAckHeader Class Reference

EpcX2HandoverRequestAckHeader. More...

#include "epc-x2-header.h"

+ Inheritance diagram for ns3::EpcX2HandoverRequestAckHeader:
+ Collaboration diagram for ns3::EpcX2HandoverRequestAckHeader:

Public Member Functions

 EpcX2HandoverRequestAckHeader ()

virtual ~EpcX2HandoverRequestAckHeader ()

virtual uint32_t Deserialize (Buffer::Iterator start)

std::vector< EpcX2Sap::ErabAdmittedItemGetAdmittedBearers () const
 Get admittied bearers function. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

uint32_t GetLengthOfIes () const
 Get length of IEs function. More...

uint16_t GetNewEnbUeX2apId () const
 Get new ENB UE X2 AP ID function. More...

std::vector< EpcX2Sap::ErabNotAdmittedItemGetNotAdmittedBearers () const
 Get not admitted bearers function. More...

uint32_t GetNumberOfIes () const
 Get number of IEs function. More...

uint16_t GetOldEnbUeX2apId () const
 Get old ENB UE X2 AP ID function. More...

virtual uint32_t GetSerializedSize (void) const

virtual void Print (std::ostream &os) const

virtual void Serialize (Buffer::Iterator start) const

void SetAdmittedBearers (std::vector< EpcX2Sap::ErabAdmittedItem > bearers)
 Set admitted bearers function. More...

void SetNewEnbUeX2apId (uint16_t x2apId)
 Set new ENB UE X2 AP ID function. More...

void SetNotAdmittedBearers (std::vector< EpcX2Sap::ErabNotAdmittedItem > bearers)
 Set not admitted bearers function. More...

void SetOldEnbUeX2apId (uint16_t x2apId)
 Set old ENB UE X2 AP ID function. More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator. More...

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::Chunk
virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

std::vector< EpcX2Sap::ErabAdmittedItemm_erabsAdmittedList
 ERABs admitted list. More...

std::vector< EpcX2Sap::ErabNotAdmittedItemm_erabsNotAdmittedList
 ERABs not admitted list. More...

uint32_t m_headerLength
 header length More...

uint16_t m_newEnbUeX2apId
 new ENB UE X2 AP ID More...

uint32_t m_numberOfIes
 number of IEs More...

uint16_t m_oldEnbUeX2apId
 old ENB UE X2 AP ID More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

EpcX2HandoverRequestAckHeader.

Introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 72 bytes (on a 64-bit architecture).

Definition at line 235 of file epc-x2-header.h.

Constructor & Destructor Documentation

◆ EpcX2HandoverRequestAckHeader()

ns3::EpcX2HandoverRequestAckHeader::EpcX2HandoverRequestAckHeader ( )

Definition at line 439 of file epc-x2-header.cc.

◆ ~EpcX2HandoverRequestAckHeader()

ns3::EpcX2HandoverRequestAckHeader::~EpcX2HandoverRequestAckHeader ( )
virtual

Member Function Documentation

◆ Deserialize()

uint32_t ns3::EpcX2HandoverRequestAckHeader::Deserialize ( Buffer::Iterator  start)
virtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 507 of file epc-x2-header.cc.

References ns3::EpcX2Sap::ErabNotAdmittedItem::cause, ns3::EpcX2Sap::ErabAdmittedItem::dlGtpTeid, ns3::EpcX2Sap::ErabAdmittedItem::erabId, ns3::EpcX2Sap::ErabNotAdmittedItem::erabId, GetSerializedSize(), m_erabsAdmittedList, m_erabsNotAdmittedList, m_headerLength, m_newEnbUeX2apId, m_numberOfIes, m_oldEnbUeX2apId, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadNtohU32(), visualizer.core::start(), and ns3::EpcX2Sap::ErabAdmittedItem::ulGtpTeid.

+ Here is the call graph for this function:

◆ GetAdmittedBearers()

std::vector< EpcX2Sap::ErabAdmittedItem > ns3::EpcX2HandoverRequestAckHeader::GetAdmittedBearers ( ) const

Get admittied bearers function.

Returns
<EpcX2Sap::ErabAdmittedItem>

Definition at line 624 of file epc-x2-header.cc.

References m_erabsAdmittedList.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

+ Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::EpcX2HandoverRequestAckHeader::GetInstanceTypeId ( void  ) const
virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 469 of file epc-x2-header.cc.

References GetTypeId().

+ Here is the call graph for this function:

◆ GetLengthOfIes()

uint32_t ns3::EpcX2HandoverRequestAckHeader::GetLengthOfIes ( ) const

Get length of IEs function.

Returns
the length of IEs

Definition at line 650 of file epc-x2-header.cc.

References m_headerLength.

Referenced by ns3::EpcX2::DoSendHandoverRequestAck().

+ Here is the caller graph for this function:

◆ GetNewEnbUeX2apId()

uint16_t ns3::EpcX2HandoverRequestAckHeader::GetNewEnbUeX2apId ( ) const

Get new ENB UE X2 AP ID function.

Returns
the new ENB UE X2 AP ID

Definition at line 612 of file epc-x2-header.cc.

References m_newEnbUeX2apId.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

+ Here is the caller graph for this function:

◆ GetNotAdmittedBearers()

std::vector< EpcX2Sap::ErabNotAdmittedItem > ns3::EpcX2HandoverRequestAckHeader::GetNotAdmittedBearers ( ) const

Get not admitted bearers function.

Returns
the not admitted bearers

Definition at line 637 of file epc-x2-header.cc.

References m_erabsNotAdmittedList.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

+ Here is the caller graph for this function:

◆ GetNumberOfIes()

uint32_t ns3::EpcX2HandoverRequestAckHeader::GetNumberOfIes ( ) const

Get number of IEs function.

Returns
the number of IEs

Definition at line 656 of file epc-x2-header.cc.

References m_numberOfIes.

Referenced by ns3::EpcX2::DoSendHandoverRequestAck().

+ Here is the caller graph for this function:

◆ GetOldEnbUeX2apId()

uint16_t ns3::EpcX2HandoverRequestAckHeader::GetOldEnbUeX2apId ( ) const

Get old ENB UE X2 AP ID function.

Returns
the old ENB UE X2 AP ID

Definition at line 600 of file epc-x2-header.cc.

References m_oldEnbUeX2apId.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

+ Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::EpcX2HandoverRequestAckHeader::GetSerializedSize ( void  ) const
virtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 475 of file epc-x2-header.cc.

References m_headerLength.

Referenced by Deserialize().

+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::EpcX2HandoverRequestAckHeader::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 458 of file epc-x2-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

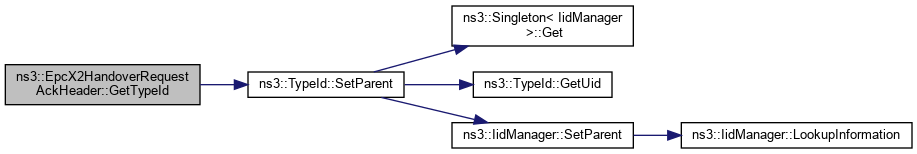

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Print()

void ns3::EpcX2HandoverRequestAckHeader::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 554 of file epc-x2-header.cc.

References m_erabsAdmittedList, m_erabsNotAdmittedList, m_newEnbUeX2apId, and m_oldEnbUeX2apId.

◆ Serialize()

void ns3::EpcX2HandoverRequestAckHeader::Serialize ( Buffer::Iterator  start) const
virtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 481 of file epc-x2-header.cc.

References m_erabsAdmittedList, m_erabsNotAdmittedList, m_newEnbUeX2apId, m_oldEnbUeX2apId, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU16(), and ns3::Buffer::Iterator::WriteHtonU32().

+ Here is the call graph for this function:

◆ SetAdmittedBearers()

void ns3::EpcX2HandoverRequestAckHeader::SetAdmittedBearers ( std::vector< EpcX2Sap::ErabAdmittedItem bearers)

Set admitted bearers function.

Parameters
bearersthe admitted bearers

Definition at line 630 of file epc-x2-header.cc.

References m_erabsAdmittedList, and m_headerLength.

Referenced by ns3::EpcX2::DoSendHandoverRequestAck().

+ Here is the caller graph for this function:

◆ SetNewEnbUeX2apId()

void ns3::EpcX2HandoverRequestAckHeader::SetNewEnbUeX2apId ( uint16_t  x2apId)

Set new ENB UE X2 AP ID function.

Parameters
x2apIdthe new ENB UE X2 AP ID

Definition at line 618 of file epc-x2-header.cc.

References m_newEnbUeX2apId.

Referenced by ns3::EpcX2::DoSendHandoverRequestAck().

+ Here is the caller graph for this function:

◆ SetNotAdmittedBearers()

void ns3::EpcX2HandoverRequestAckHeader::SetNotAdmittedBearers ( std::vector< EpcX2Sap::ErabNotAdmittedItem bearers)

Set not admitted bearers function.

Parameters
bearersthe not admitted bearers

Definition at line 643 of file epc-x2-header.cc.

References m_erabsNotAdmittedList, and m_headerLength.

Referenced by ns3::EpcX2::DoSendHandoverRequestAck().

+ Here is the caller graph for this function:

◆ SetOldEnbUeX2apId()

void ns3::EpcX2HandoverRequestAckHeader::SetOldEnbUeX2apId ( uint16_t  x2apId)

Set old ENB UE X2 AP ID function.

Parameters
x2apIdthe old ENB UE X2 AP ID

Definition at line 606 of file epc-x2-header.cc.

References m_oldEnbUeX2apId.

Referenced by ns3::EpcX2::DoSendHandoverRequestAck().

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_erabsAdmittedList

std::vector<EpcX2Sap::ErabAdmittedItem> ns3::EpcX2HandoverRequestAckHeader::m_erabsAdmittedList
private

ERABs admitted list.

Definition at line 314 of file epc-x2-header.h.

Referenced by ~EpcX2HandoverRequestAckHeader(), Deserialize(), GetAdmittedBearers(), Print(), Serialize(), and SetAdmittedBearers().

◆ m_erabsNotAdmittedList

std::vector<EpcX2Sap::ErabNotAdmittedItem> ns3::EpcX2HandoverRequestAckHeader::m_erabsNotAdmittedList
private

ERABs not admitted list.

Definition at line 315 of file epc-x2-header.h.

Referenced by ~EpcX2HandoverRequestAckHeader(), Deserialize(), GetNotAdmittedBearers(), Print(), Serialize(), and SetNotAdmittedBearers().

◆ m_headerLength

uint32_t ns3::EpcX2HandoverRequestAckHeader::m_headerLength
private

◆ m_newEnbUeX2apId

uint16_t ns3::EpcX2HandoverRequestAckHeader::m_newEnbUeX2apId
private

new ENB UE X2 AP ID

Definition at line 313 of file epc-x2-header.h.

Referenced by ~EpcX2HandoverRequestAckHeader(), Deserialize(), GetNewEnbUeX2apId(), Print(), Serialize(), and SetNewEnbUeX2apId().

◆ m_numberOfIes

uint32_t ns3::EpcX2HandoverRequestAckHeader::m_numberOfIes
private

number of IEs

Definition at line 309 of file epc-x2-header.h.

Referenced by ~EpcX2HandoverRequestAckHeader(), Deserialize(), and GetNumberOfIes().

◆ m_oldEnbUeX2apId

uint16_t ns3::EpcX2HandoverRequestAckHeader::m_oldEnbUeX2apId
private

old ENB UE X2 AP ID

Definition at line 312 of file epc-x2-header.h.

Referenced by ~EpcX2HandoverRequestAckHeader(), Deserialize(), GetOldEnbUeX2apId(), Print(), Serialize(), and SetOldEnbUeX2apId().


The documentation for this class was generated from the following files:
