Implements the functionality of a DHCP server. More...

#include "dhcp-server.h"

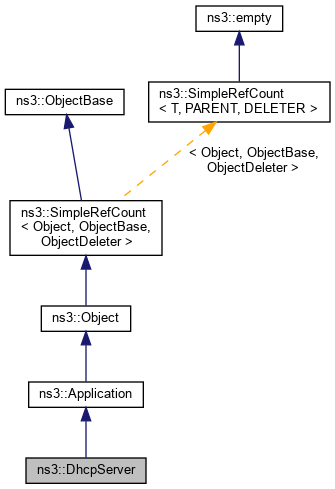

Inheritance diagram for ns3::DhcpServer:

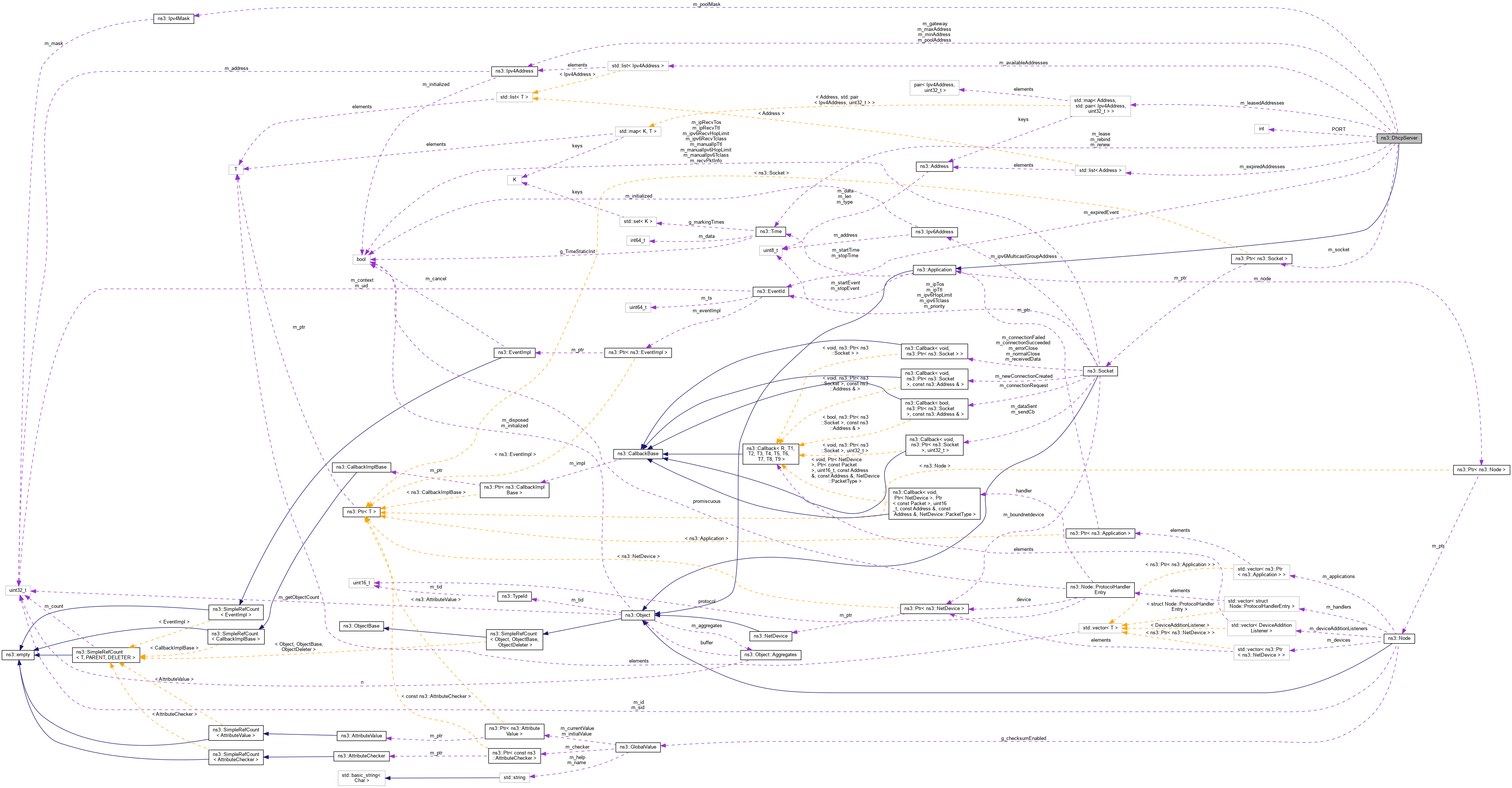

Collaboration diagram for ns3::DhcpServer:

Public Member Functions
	DhcpServer ()

virtual	~DhcpServer ()

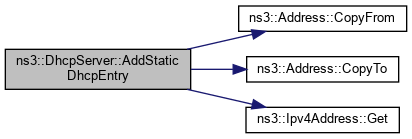

void	AddStaticDhcpEntry (Address chaddr, Ipv4Address addr)
	Add a static entry to the pool. More...

Public Member Functions inherited from ns3::Application
	Application ()

virtual	~Application ()

Ptr< Node >	GetNode () const

void	SetNode (Ptr< Node > node)

void	SetStartTime (Time start)
	Specify application start time. More...

void	SetStopTime (Time stop)
	Specify application stop time. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

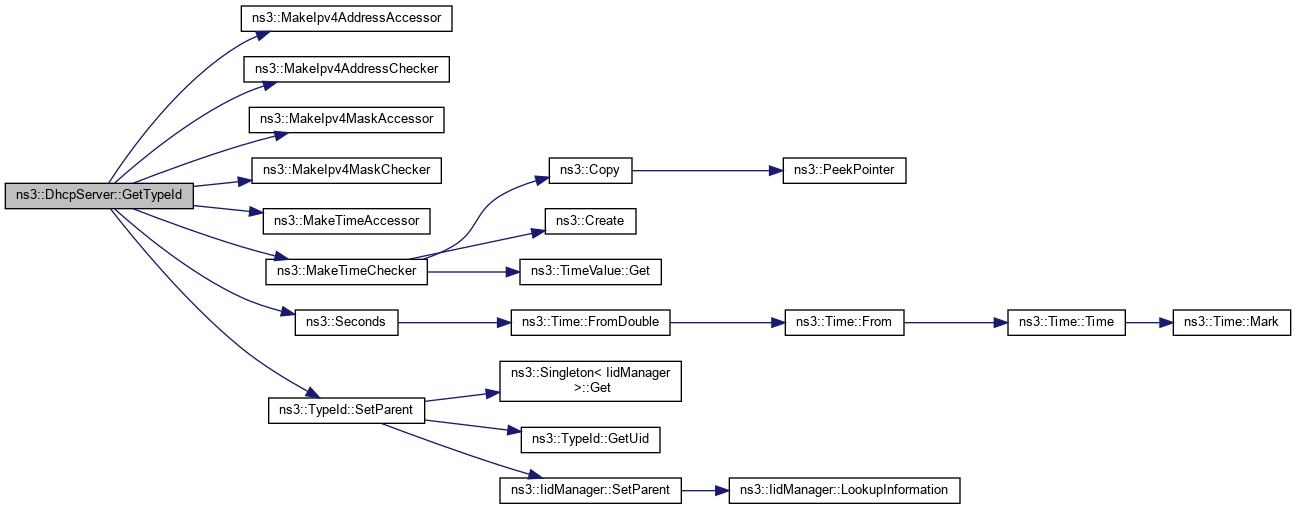

static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Application
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions

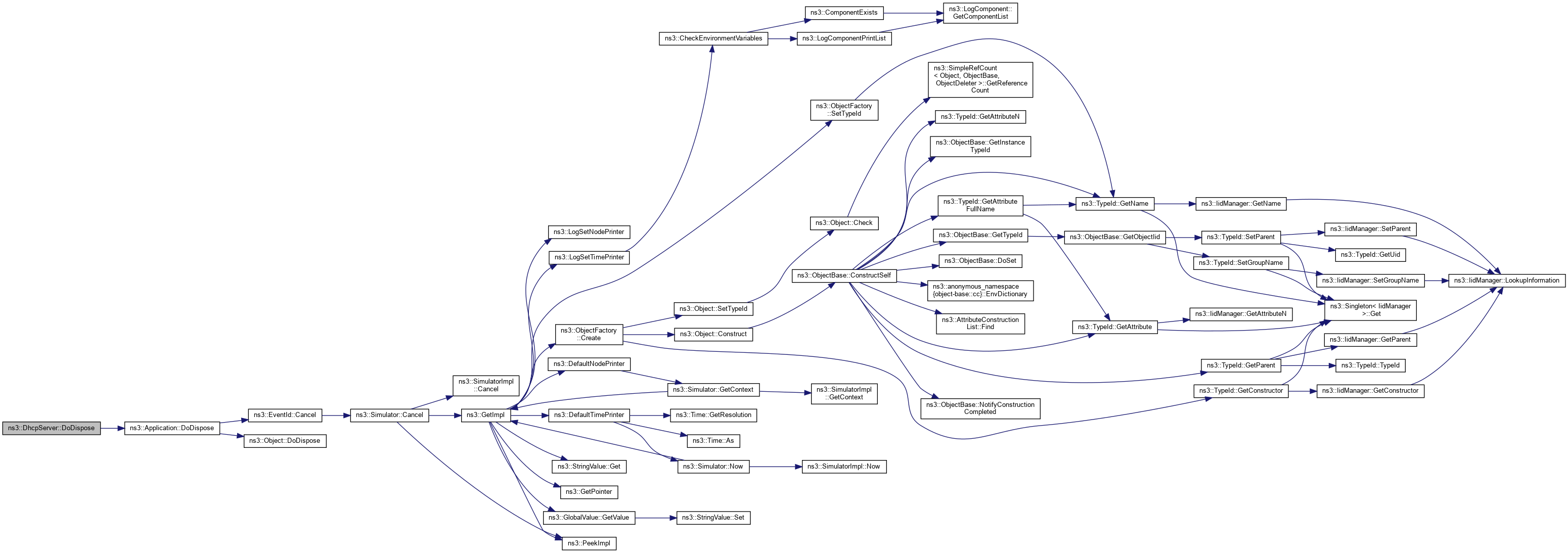

virtual void	DoDispose (void)
	Destructor implementation. More...

Protected Member Functions inherited from ns3::Application
virtual void	DoInitialize (void)
	Initialize() implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Types
typedef std::list< Ipv4Address >	AvailableAddress
	Available address container - IP addr. More...

typedef std::list< Address >	ExpiredAddress
	Expired address container - chaddr. More...

typedef std::list< Address >::const_iterator	ExpiredAddressCIter
	Expired address const iterator - chaddr. More...

typedef std::list< Address >::iterator	ExpiredAddressIter
	Expired address iterator - chaddr. More...

typedef std::map< Address, std::pair< Ipv4Address, uint32_t > >	LeasedAddress
	Leased address container - chaddr + IP addr / lease time. More...

typedef std::map< Address, std::pair< Ipv4Address, uint32_t > >::const_iterator	LeasedAddressCIter
	Leased address const iterator - chaddr + IP addr / lease time. More...

typedef std::map< Address, std::pair< Ipv4Address, uint32_t > >::iterator	LeasedAddressIter
	Leased address iterator - chaddr + IP addr / lease time. More...

Private Member Functions

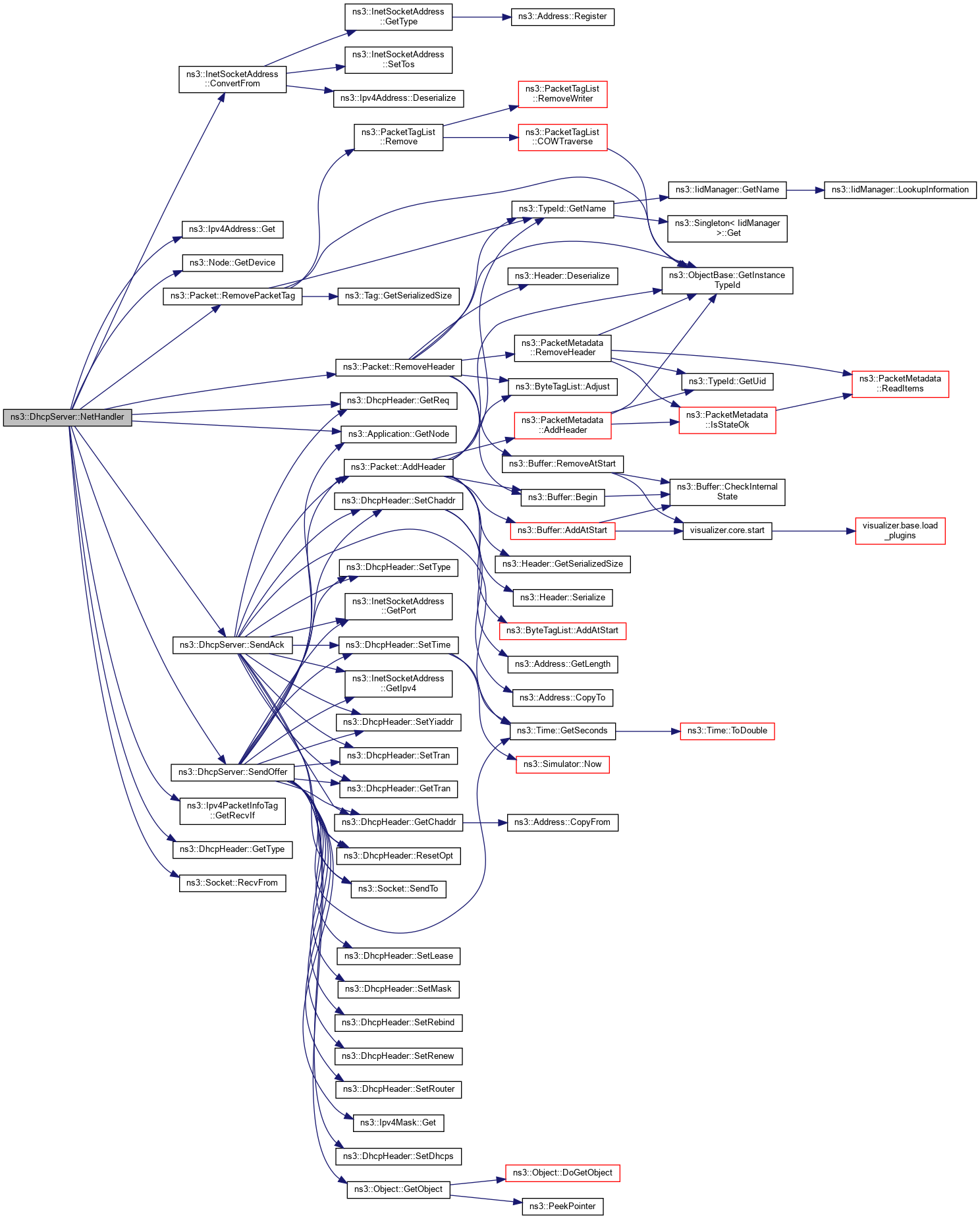

void	NetHandler (Ptr< Socket > socket)
	Handles incoming packets from the network. More...

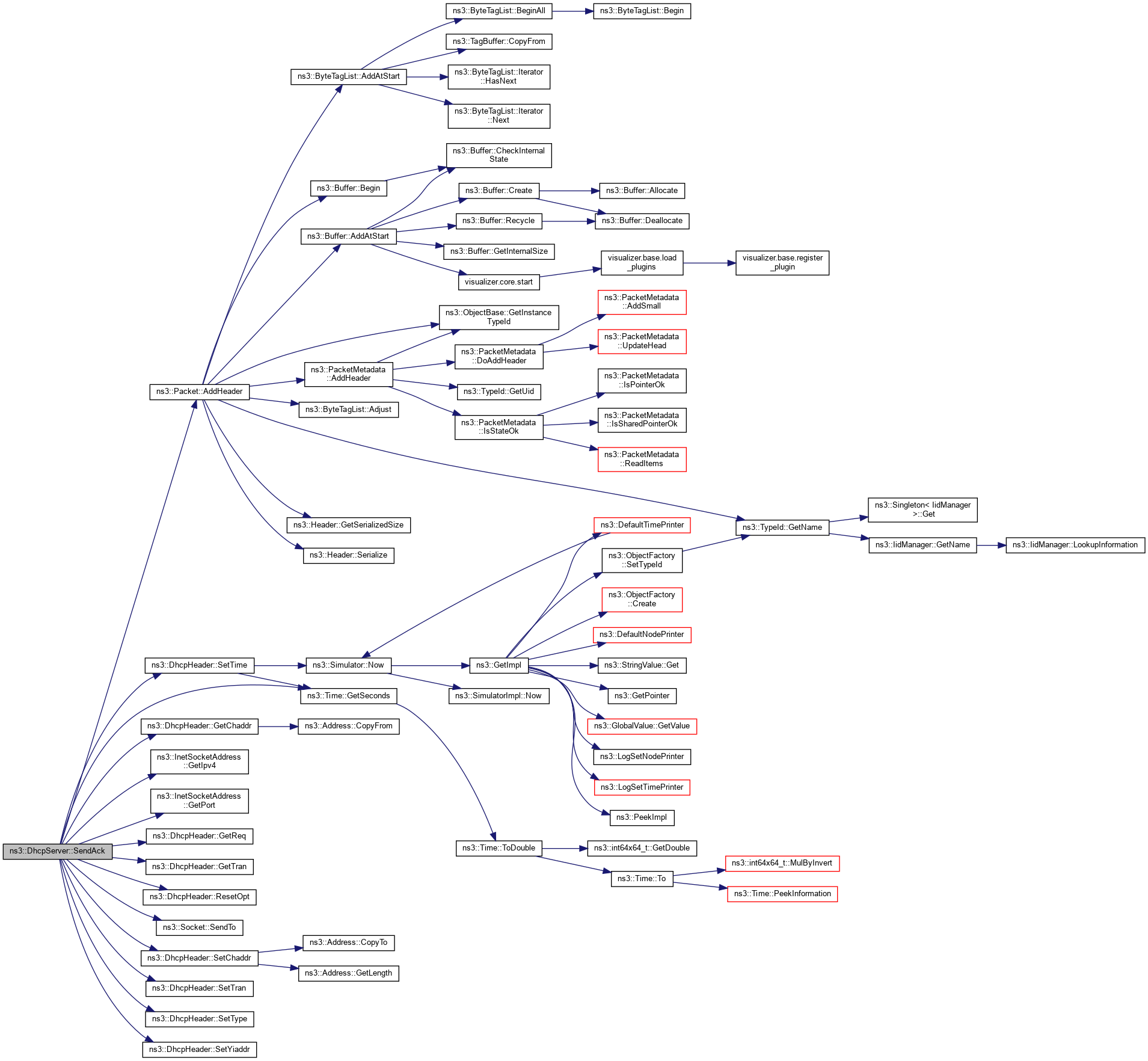

void	SendAck (Ptr< NetDevice > iDev, DhcpHeader header, InetSocketAddress from)
	Sends DHCP ACK (or NACK) after receiving Request. More...

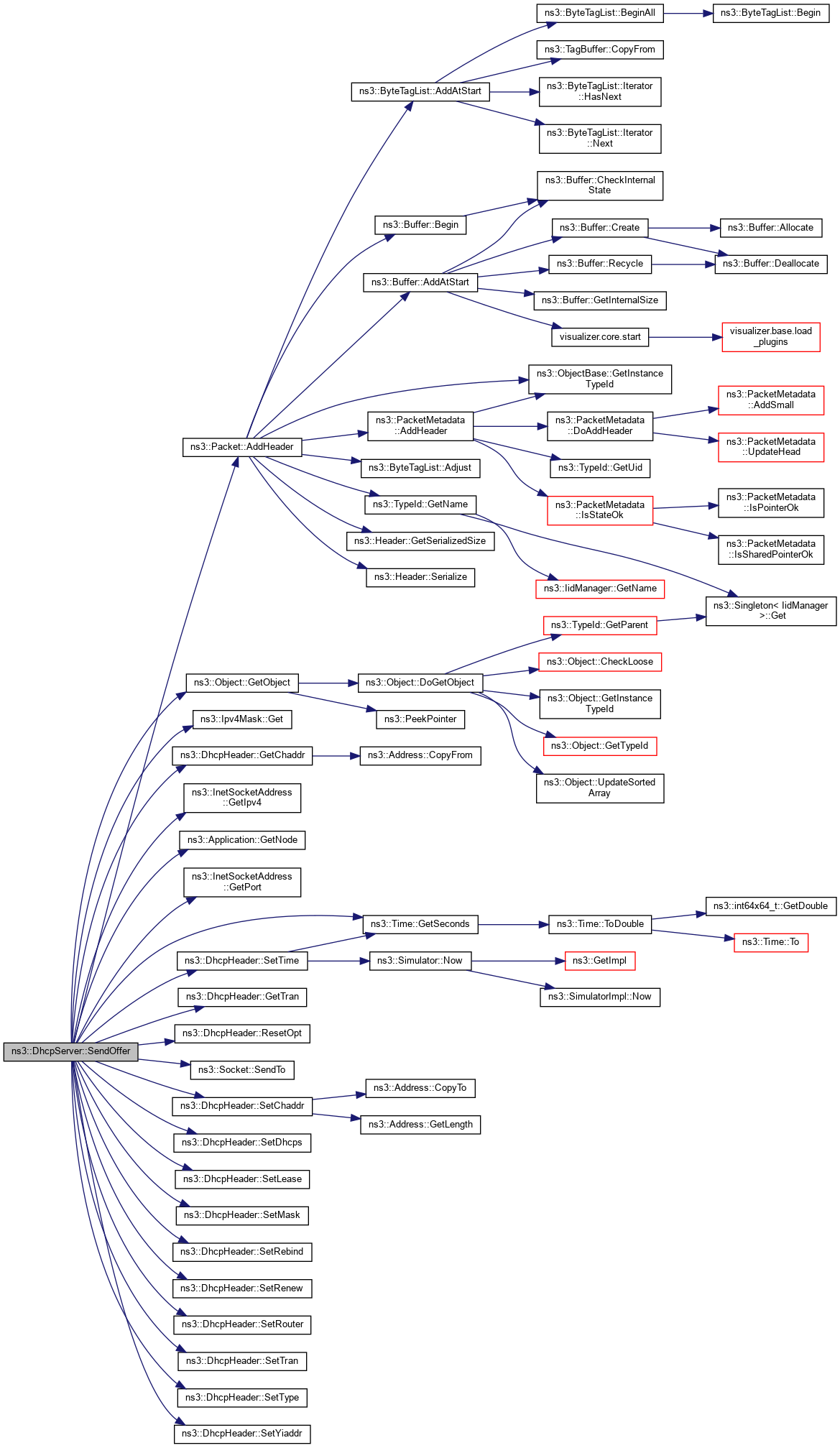

void	SendOffer (Ptr< NetDevice > iDev, DhcpHeader header, InetSocketAddress from)
	Sends DHCP offer after receiving DHCP Discover. More...

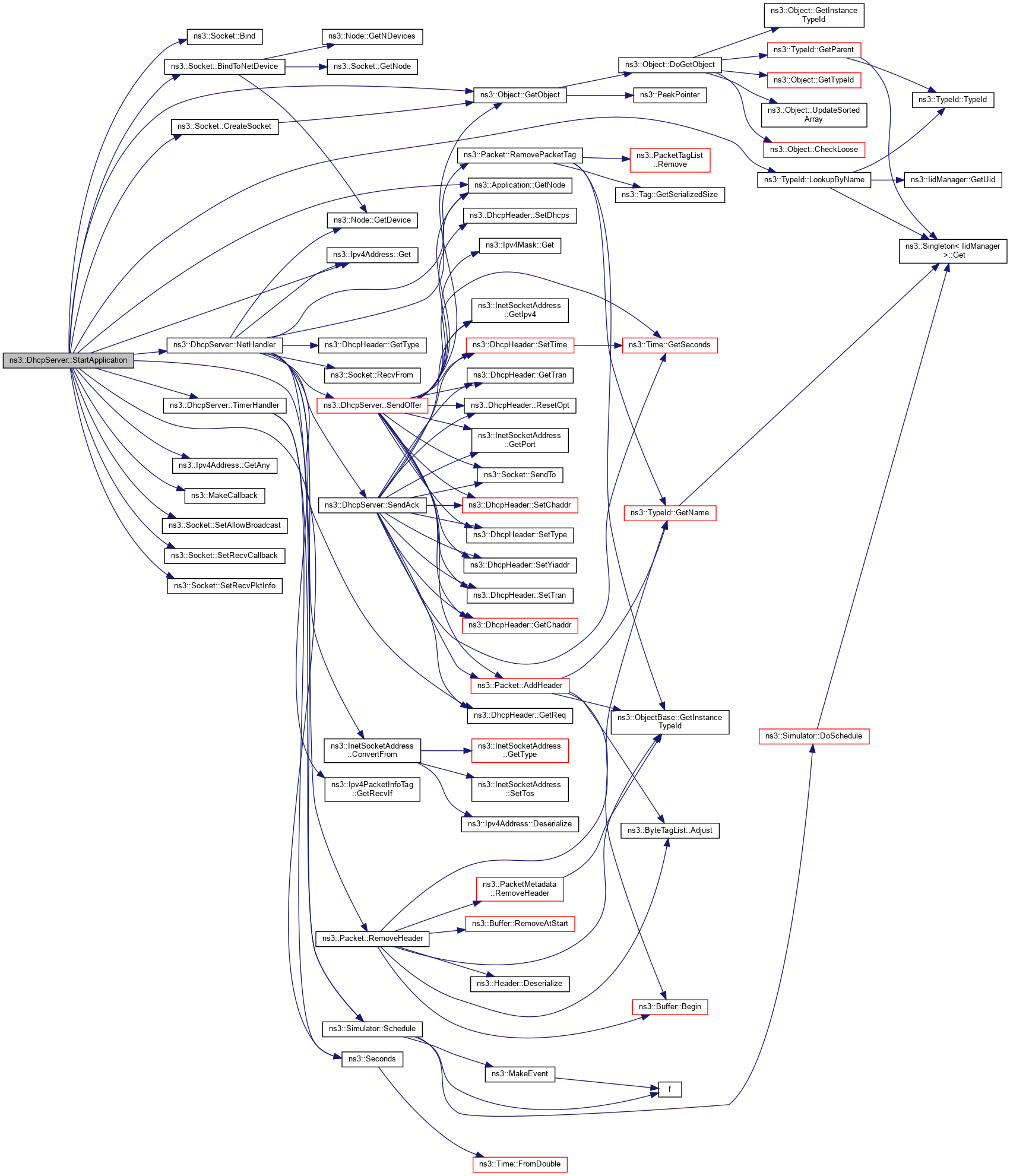

virtual void	StartApplication (void)
	Starts the DHCP Server application. More...

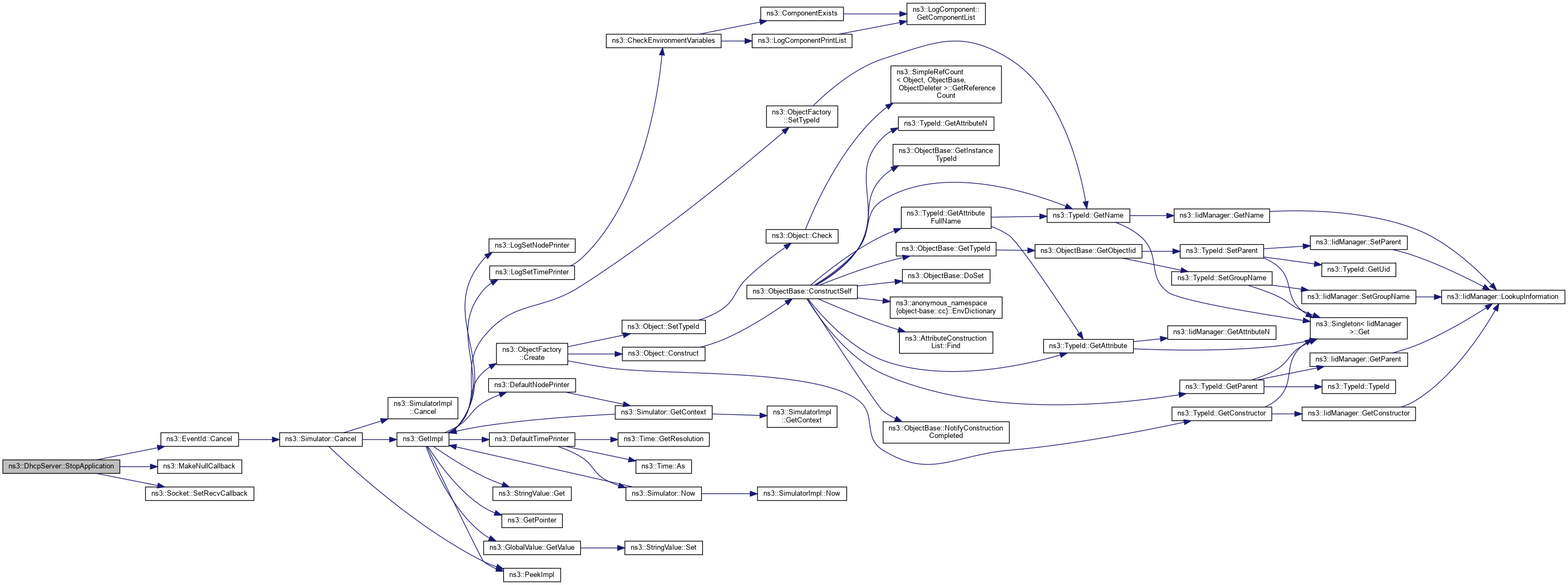

virtual void	StopApplication (void)
	Stops the DHCP client application. More...

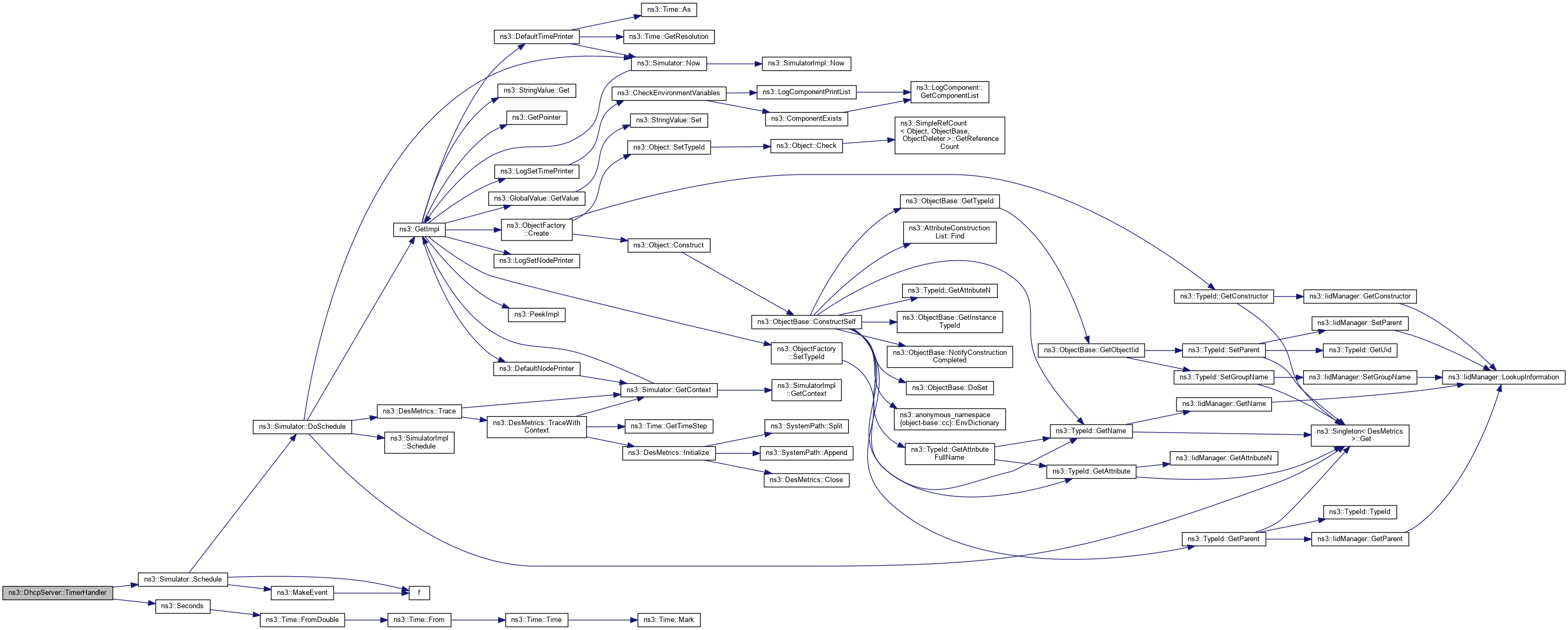

void	TimerHandler (void)
	Modifies the remaining lease time of addresses. More...

Private Attributes
AvailableAddress	m_availableAddresses
	Available addresses to be used (IP addresses) More...

ExpiredAddress	m_expiredAddresses
	Expired addresses to be reused (chaddr of the clients) More...

EventId	m_expiredEvent
	The Event to trigger TimerHandler. More...

Ipv4Address	m_gateway
	The gateway address. More...

Time	m_lease
	The granted lease time for an address. More...

LeasedAddress	m_leasedAddresses
	Leased address and their status (cache memory) More...

Ipv4Address	m_maxAddress
	The last address in the address pool. More...

Ipv4Address	m_minAddress
	The first address in the address pool. More...

Ipv4Address	m_poolAddress
	The network address available to the server. More...

Ipv4Mask	m_poolMask
	The network mask of the pool. More...

Time	m_rebind
	The rebinding time for an address. More...

Time	m_renew
	The renewal time for an address. More...

Ptr< Socket >	m_socket
	The socket bound to port 67. More...

Static Private Attributes
static const int	PORT = 67
	Port number of DHCP server. More...

Additional Inherited Members
Public Types inherited from ns3::Application
typedef void(*	DelayAddressCallback) (const Time &delay, const Address &from)
	Common callback signature for packet delay and address. More...

typedef void(*	StateTransitionCallback) (const std::string &oldState, const std::string &newState)
	Common signature used by callbacks to application's state transition trace source. More...

Protected Attributes inherited from ns3::Application
Ptr< Node >	m_node
	The node that this application is installed on. More...

EventId	m_startEvent
	The event that will fire at m_startTime to start the application. More...

Time	m_startTime
	The simulation time that the application will start. More...

EventId	m_stopEvent
	The event that will fire at m_stopTime to end the application. More...

Time	m_stopTime
	The simulation time that the application will end. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Implements the functionality of a DHCP server.

Config Paths

ns3::DhcpServer is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/ApplicationList/[i]/$ns3::DhcpServer"

Attributes

LeaseTime: Lease for which address will be leased.
- Set with class: ns3::TimeValue
- Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
- Initial value: +3e+10ns
- Flags: construct write read
RenewTime: Time after which client should renew.
- Set with class: ns3::TimeValue
- Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
- Initial value: +1.5e+10ns
- Flags: construct write read
RebindTime: Time after which client should rebind.
- Set with class: ns3::TimeValue
- Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
- Initial value: +2.5e+10ns
- Flags: construct write read
PoolAddresses: Pool of addresses to provide on request.
- Set with class: Ipv4AddressValue
- Underlying type: Ipv4Address
- Initial value: 102.102.102.102
- Flags: construct write read
FirstAddress: The First valid address that can be given.
- Set with class: Ipv4AddressValue
- Underlying type: Ipv4Address
- Initial value: 102.102.102.102
- Flags: construct write read
LastAddress: The Last valid address that can be given.
- Set with class: Ipv4AddressValue
- Underlying type: Ipv4Address
- Initial value: 102.102.102.102
- Flags: construct write read
PoolMask: Mask of the pool of addresses.
- Set with class: Ipv4MaskValue
- Underlying type: Ipv4Mask
- Initial value: 102.102.102.102
- Flags: construct write read
Gateway: Address of default gateway
- Set with class: Ipv4AddressValue
- Underlying type: Ipv4Address
- Initial value: 102.102.102.102
- Flags: construct write read

Attributes defined in parent class ns3::Application

StartTime: Time at which the application will start
- Set with class: ns3::TimeValue
- Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
- Initial value: +0ns
- Flags: construct write read
StopTime: Time at which the application will stop
- Set with class: ns3::TimeValue
- Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
- Initial value: +0ns
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 296 bytes (on a 64-bit architecture).

Definition at line 45 of file dhcp-server.h.

Member Typedef Documentation

◆ AvailableAddress

typedef std::list<Ipv4Address> ns3::DhcpServer::AvailableAddress

private

Available address container - IP addr.

Definition at line 131 of file dhcp-server.h.

◆ ExpiredAddress

typedef std::list<Address> ns3::DhcpServer::ExpiredAddress

private

Expired address container - chaddr.

Definition at line 124 of file dhcp-server.h.

◆ ExpiredAddressCIter

typedef std::list<Address>::const_iterator ns3::DhcpServer::ExpiredAddressCIter

private

Expired address const iterator - chaddr.

Definition at line 128 of file dhcp-server.h.

◆ ExpiredAddressIter

typedef std::list<Address>::iterator ns3::DhcpServer::ExpiredAddressIter

private

Expired address iterator - chaddr.

Definition at line 126 of file dhcp-server.h.

◆ LeasedAddress

typedef std::map<Address, std::pair<Ipv4Address, uint32_t> > ns3::DhcpServer::LeasedAddress

private

Leased address container - chaddr + IP addr / lease time.

Definition at line 117 of file dhcp-server.h.

◆ LeasedAddressCIter

typedef std::map<Address, std::pair<Ipv4Address, uint32_t> >::const_iterator ns3::DhcpServer::LeasedAddressCIter

private

Leased address const iterator - chaddr + IP addr / lease time.

Definition at line 121 of file dhcp-server.h.

◆ LeasedAddressIter

typedef std::map<Address, std::pair<Ipv4Address, uint32_t> >::iterator ns3::DhcpServer::LeasedAddressIter

private

Leased address iterator - chaddr + IP addr / lease time.

Definition at line 119 of file dhcp-server.h.

Constructor & Destructor Documentation

◆ DhcpServer()

ns3::DhcpServer::DhcpServer ( )

Definition at line 93 of file dhcp-server.cc.

References NS_LOG_FUNCTION.

◆ ~DhcpServer()

ns3::DhcpServer::~DhcpServer ( )

virtual

Definition at line 98 of file dhcp-server.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AddStaticDhcpEntry()

void ns3::DhcpServer::AddStaticDhcpEntry	(	Address	chaddr,
		Ipv4Address	addr
	)

Add a static entry to the pool.

Parameters

chaddr	The client chaddr.
addr	The address to handle to the client.

Definition at line 386 of file dhcp-server.cc.

References ns3::Address::CopyFrom(), ns3::Address::CopyTo(), ns3::Ipv4Address::Get(), m_availableAddresses, m_leasedAddresses, m_maxAddress, m_minAddress, ns3::Address::MAX_SIZE, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ DoDispose()

void ns3::DhcpServer::DoDispose ( void )

protectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Application.

Definition at line 104 of file dhcp-server.cc.

References ns3::Application::DoDispose(), and NS_LOG_FUNCTION.

Here is the call graph for this function:
