Headers for A-MPDU subframes. More...

#include "ampdu-subframe-header.h"

Inheritance diagram for ns3::AmpduSubframeHeader:

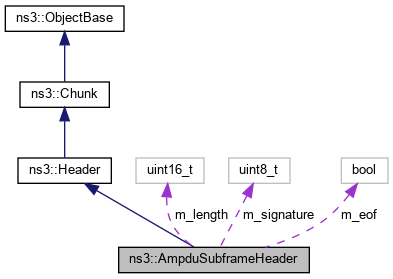

Collaboration diagram for ns3::AmpduSubframeHeader:

Public Member Functions
	AmpduSubframeHeader ()

virtual	~AmpduSubframeHeader ()

uint32_t	Deserialize (Buffer::Iterator start) override

bool	GetEof (void) const
	Return the EOF field. More...

TypeId	GetInstanceTypeId (void) const override
	Get the most derived TypeId for this Object. More...

uint16_t	GetLength (void) const
	Return the length field. More...

uint32_t	GetSerializedSize (void) const override

bool	IsSignatureValid (void) const
	Return whether the pattern stored in the delimiter signature field is correct, i.e. More...

void	Print (std::ostream &os) const override

void	Serialize (Buffer::Iterator start) const override

void	SetEof (bool eof)
	Set the EOF field. More...

void	SetLength (uint16_t length)
	Set the length field. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
bool	m_eof
	EOF field. More...

uint16_t	m_length
	length field in bytes More...

uint8_t	m_signature
	delimiter signature (should correspond to pattern 0x4E in order to be assumed valid) More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Headers for A-MPDU subframes.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 16 bytes (on a 64-bit architecture).

Definition at line 32 of file ampdu-subframe-header.h.

Constructor & Destructor Documentation

◆ AmpduSubframeHeader()

ns3::AmpduSubframeHeader::AmpduSubframeHeader ( )

Definition at line 45 of file ampdu-subframe-header.cc.

◆ ~AmpduSubframeHeader()

ns3::AmpduSubframeHeader::~AmpduSubframeHeader ( )

virtual

Definition at line 52 of file ampdu-subframe-header.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::AmpduSubframeHeader::Deserialize ( Buffer::Iterator start )

overridevirtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 71 of file ampdu-subframe-header.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_eof, m_length, m_signature, ns3::Buffer::Iterator::ReadLsbtohU16(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

Here is the call graph for this function:

◆ GetEof()

bool ns3::AmpduSubframeHeader::GetEof ( void ) const

Return the EOF field.

Returns: the EOF field

Definition at line 108 of file ampdu-subframe-header.cc.

References m_eof.

Referenced by ns3::WifiPhyHelper::GetRadiotapHeader().

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::AmpduSubframeHeader::GetInstanceTypeId ( void ) const

overridevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 40 of file ampdu-subframe-header.cc.

References GetTypeId().

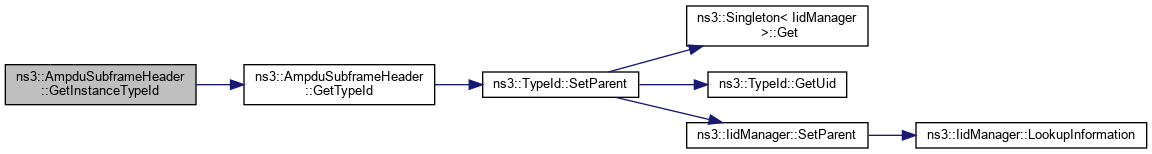

Here is the call graph for this function:

◆ GetLength()

uint16_t ns3::AmpduSubframeHeader::GetLength ( void ) const

Return the length field.

Returns: the length field in bytes

Definition at line 102 of file ampdu-subframe-header.cc.

References m_length.

Referenced by ns3::WifiPhyHelper::GetRadiotapHeader(), and TracePacketReception().

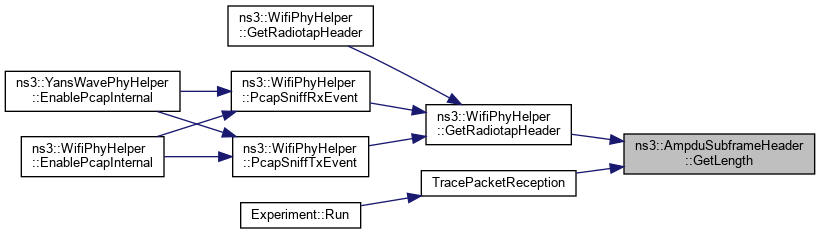

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::AmpduSubframeHeader::GetSerializedSize ( void ) const

overridevirtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 57 of file ampdu-subframe-header.cc.

◆ GetTypeId()

TypeId ns3::AmpduSubframeHeader::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 29 of file ampdu-subframe-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsSignatureValid()

bool ns3::AmpduSubframeHeader::IsSignatureValid ( void ) const

Return whether the pattern stored in the delimiter signature field is correct, i.e.

corresponds to the unique pattern 0x4E.

Returns: true if the signature is valid, false otherwise

Definition at line 114 of file ampdu-subframe-header.cc.

References m_signature.

◆ Print()

void ns3::AmpduSubframeHeader::Print ( std::ostream & os ) const

overridevirtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 83 of file ampdu-subframe-header.cc.

References m_eof, m_length, and m_signature.

◆ Serialize()

void ns3::AmpduSubframeHeader::Serialize ( Buffer::Iterator start ) const

overridevirtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 63 of file ampdu-subframe-header.cc.

References m_eof, m_length, m_signature, ns3::Buffer::Iterator::WriteHtolsbU16(), and ns3::Buffer::Iterator::WriteU8().

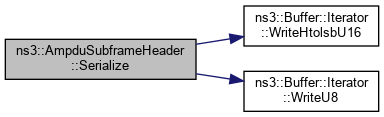

Here is the call graph for this function:

◆ SetEof()

void ns3::AmpduSubframeHeader::SetEof ( bool eof )

Set the EOF field.

Parameters

eof	set EOF field if true

Definition at line 96 of file ampdu-subframe-header.cc.

References m_eof.

Referenced by ns3::MpduAggregator::GetAmpduSubframeHeader().

Here is the caller graph for this function:

◆ SetLength()

void ns3::AmpduSubframeHeader::SetLength ( uint16_t length )

Set the length field.

Parameters

length in bytes

Definition at line 90 of file ampdu-subframe-header.cc.

References m_length.

Referenced by ns3::MpduAggregator::GetAmpduSubframeHeader().

Here is the caller graph for this function:

Member Data Documentation

◆ m_eof

bool ns3::AmpduSubframeHeader::m_eof

private

EOF field.

Definition at line 85 of file ampdu-subframe-header.h.

Referenced by Deserialize(), GetEof(), Print(), Serialize(), and SetEof().

◆ m_length

uint16_t ns3::AmpduSubframeHeader::m_length

private

length field in bytes

Definition at line 84 of file ampdu-subframe-header.h.

Referenced by Deserialize(), GetLength(), Print(), Serialize(), and SetLength().

◆ m_signature

uint8_t ns3::AmpduSubframeHeader::m_signature

private

delimiter signature (should correspond to pattern 0x4E in order to be assumed valid)

Definition at line 86 of file ampdu-subframe-header.h.

Referenced by Deserialize(), IsSignatureValid(), Print(), and Serialize().

The documentation for this class was generated from the following files:

src/wifi/model/ampdu-subframe-header.h
src/wifi/model/ampdu-subframe-header.cc
