anonymous_namespace{packet-test-suite.cc}::ATestHeader< N > Class Template Reference

Template class for Test headers. More...

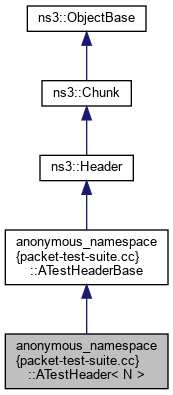

+ Inheritance diagram for anonymous_namespace{packet-test-suite.cc}::ATestHeader< N >:
+ Collaboration diagram for anonymous_namespace{packet-test-suite.cc}::ATestHeader< N >:

Public Member Functions

 ATestHeader ()

virtual uint32_t Deserialize (Buffer::Iterator iter)

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

virtual uint32_t GetSerializedSize (void) const

virtual void Print (std::ostream &os) const

virtual void Serialize (Buffer::Iterator iter) const

- Public Member Functions inherited from anonymous_namespace{packet-test-suite.cc}::ATestHeaderBase
 ATestHeaderBase ()

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator. More...

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::Chunk
virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from anonymous_namespace{packet-test-suite.cc}::ATestHeaderBase
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Additional Inherited Members

- Public Attributes inherited from anonymous_namespace{packet-test-suite.cc}::ATestHeaderBase
bool m_error
 Error in the Header. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

template<int N>
class anonymous_namespace{packet-test-suite.cc}::ATestHeader< N >

Template class for Test headers.

Note
Class internal to packet-test-suite.cc

Definition at line 243 of file packet-test-suite.cc.

Constructor & Destructor Documentation

◆ ATestHeader()

template<int N>
anonymous_namespace{packet-test-suite.cc}::ATestHeader< N >::ATestHeader ( )
inline

Definition at line 286 of file packet-test-suite.cc.

Member Function Documentation

◆ Deserialize()

template<int N>
virtual uint32_t anonymous_namespace{packet-test-suite.cc}::ATestHeader< N >::Deserialize ( Buffer::Iterator  start)
inlinevirtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 273 of file packet-test-suite.cc.

References ns3::Buffer::Iterator::ReadU8().

+ Here is the call graph for this function:

◆ GetInstanceTypeId()

template<int N>
virtual TypeId anonymous_namespace{packet-test-suite.cc}::ATestHeader< N >::GetInstanceTypeId ( void  ) const
inlinevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 261 of file packet-test-suite.cc.

◆ GetSerializedSize()

template<int N>
virtual uint32_t anonymous_namespace{packet-test-suite.cc}::ATestHeader< N >::GetSerializedSize ( void  ) const
inlinevirtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 264 of file packet-test-suite.cc.

◆ GetTypeId()

template<int N>
static TypeId anonymous_namespace{packet-test-suite.cc}::ATestHeader< N >::GetTypeId ( void  )
inlinestatic

Register this type.

Returns
The TypeId.

Definition at line 250 of file packet-test-suite.cc.

References ns3::TypeId::SetParent().

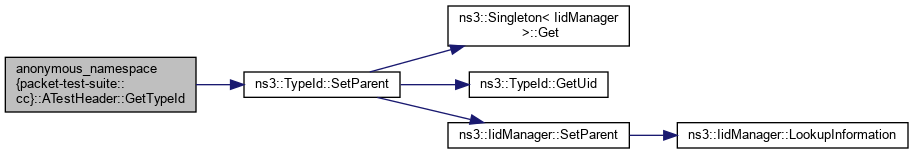

+ Here is the call graph for this function:

◆ Print()

template<int N>
virtual void anonymous_namespace{packet-test-suite.cc}::ATestHeader< N >::Print ( std::ostream &  os) const
inlinevirtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 284 of file packet-test-suite.cc.

◆ Serialize()

template<int N>
virtual void anonymous_namespace{packet-test-suite.cc}::ATestHeader< N >::Serialize ( Buffer::Iterator  start) const
inlinevirtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 267 of file packet-test-suite.cc.

References ns3::Buffer::Iterator::WriteU8().

+ Here is the call graph for this function:

The documentation for this class was generated from the following file:
